Object Detection Schematics Rear View Camera

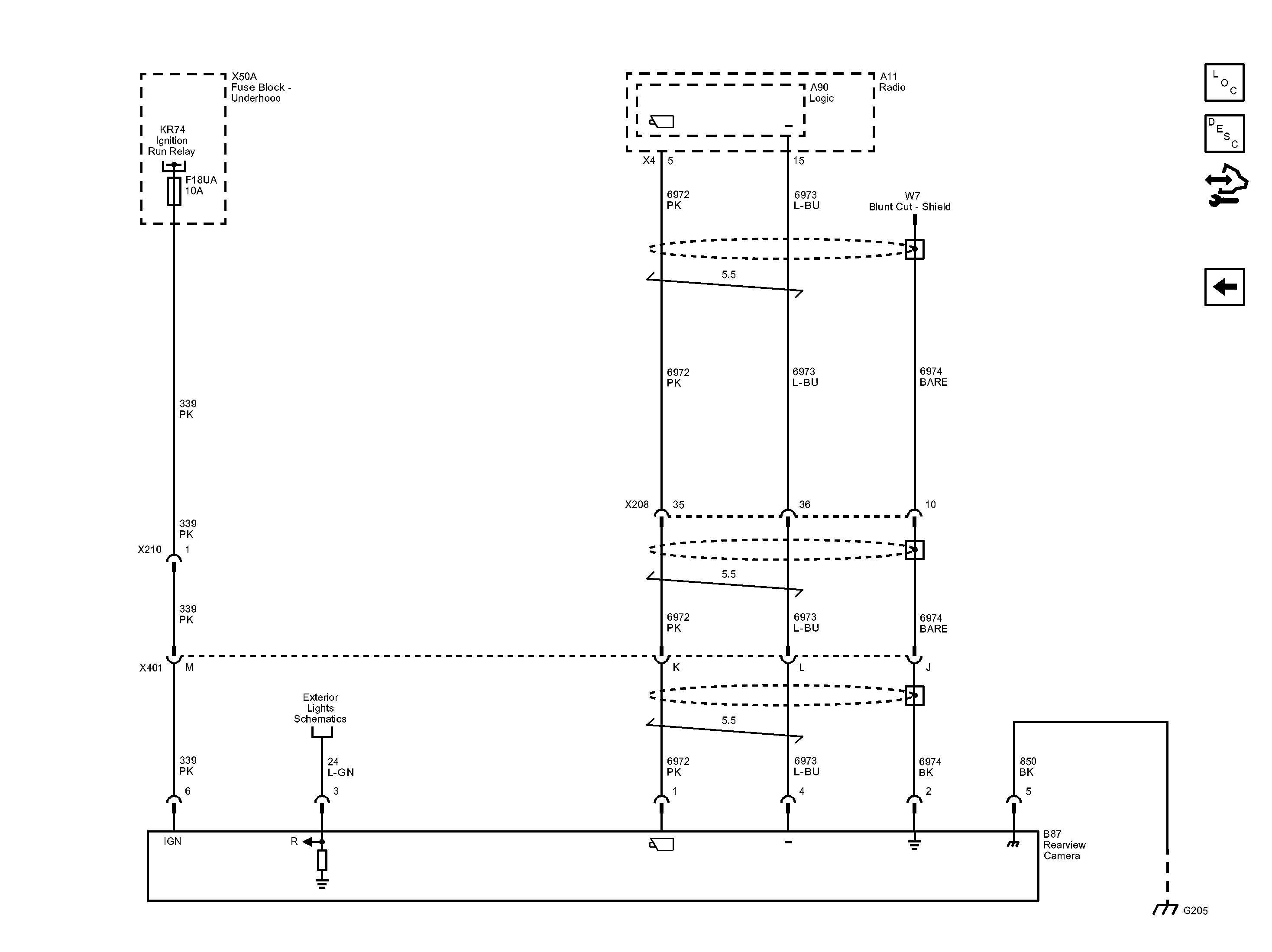

Fig 1: Rear View Camera Wiring Schematic

GM2786719

Courtesy of GENERAL MOTORS COMPANY
