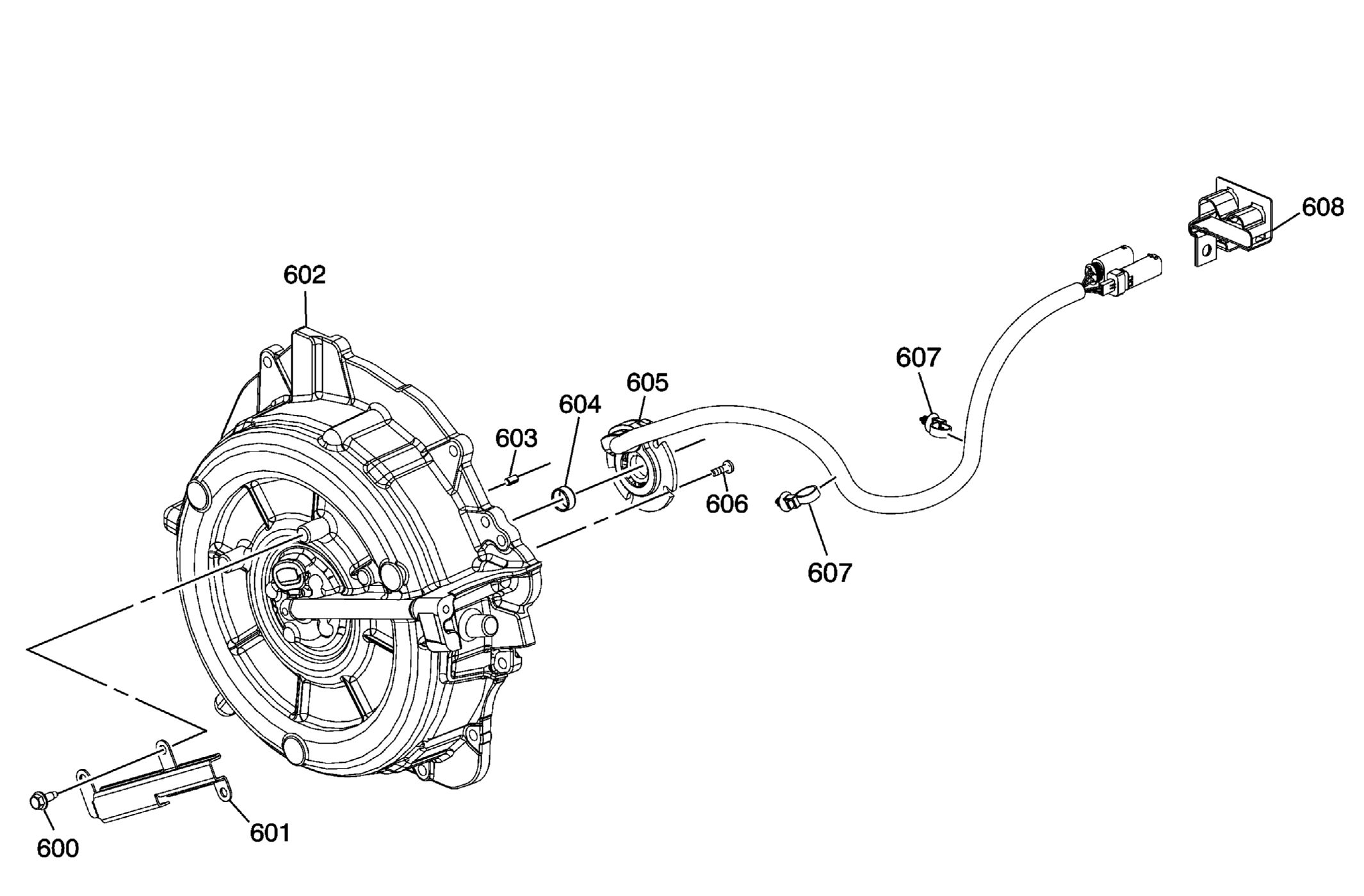

Case Cover Assembly
| Callout | Component Name |
|---|---|
| 600 | A/Trans Control Wiring Harness Shield Bolt M6 x 16 mm Qty: 3 External |
| 601 | A/Trans Control Wiring Harness Shield |
| 602 | A/Trans Case Cover |
| 603 | Drive Motor/Generator Position Sensor Pin |
| 604 | Drive Motor/Generator Rotor Lube Seal Sleeve |
| 605 | Drive Motor/Generator Position Sensor Stator Assembly |
| 606 | Generator/Drive Motor Position Sensor Bolt M5 x 16 mm Qty: 4 |
| 607 | Wiring Harness Clip Qty: 2 |
| 608 | A/Trans Control Wiring Harness Connector Bracket |
