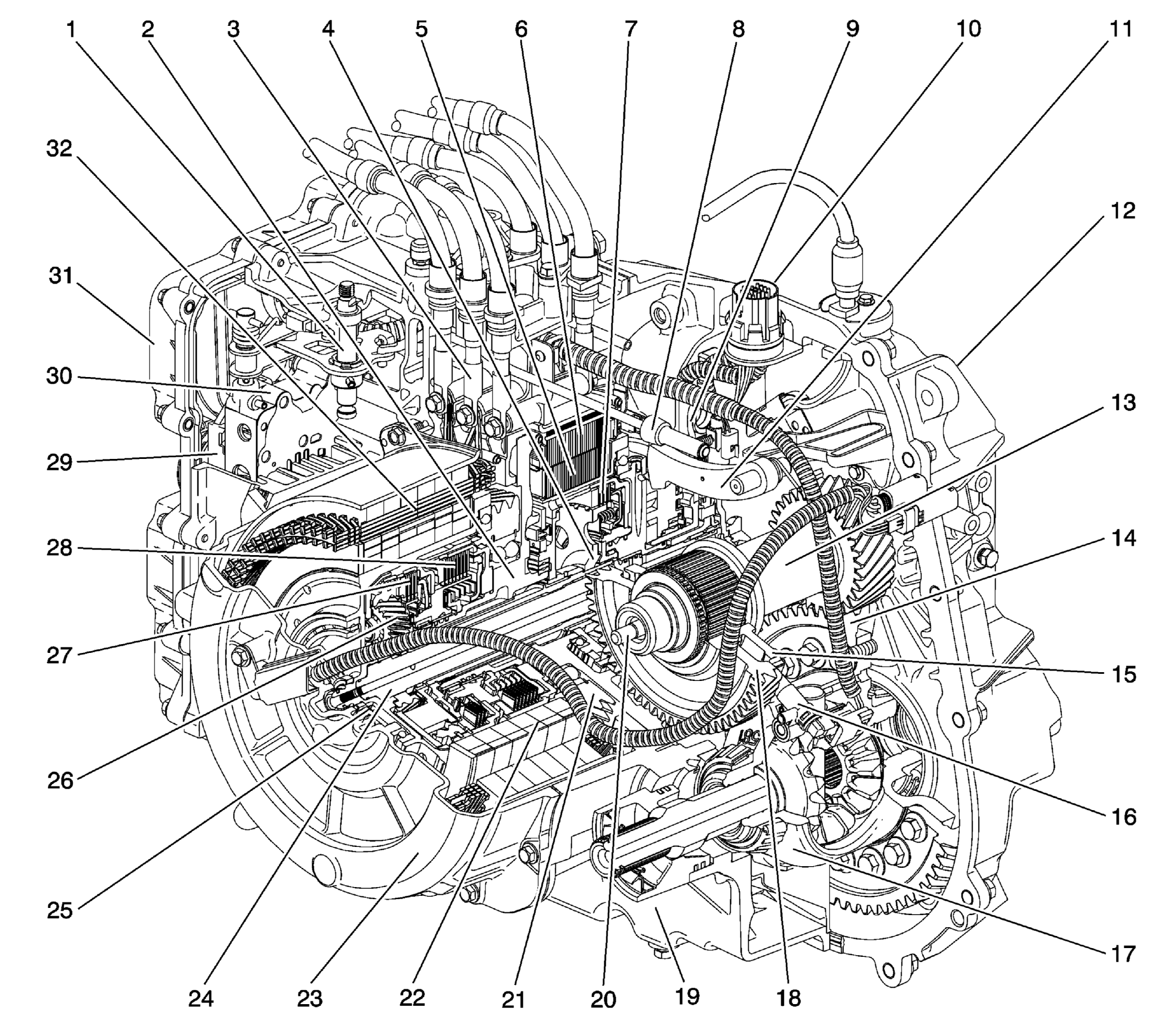

| 1 |
Manual Shift Shaft |
| 2 |
Center Support |
| 3 |
Drive Motor/Generator Power Inverter Module Cable Assembly - 3 Phase - B |
| 4 |
Input Clutch Hub |
| 5 |
Generator/Drive Motor Rotor Assembly - Unit A |
| 6 |
Generator/Drive Motor Stator Assembly - Unit A |
| 7 |
1-3 Reverse Clutch Assembly |
| 8 |
Park Pawl Actuator Assembly |
| 9 |
A/Trans Torque Dampener Assembly |
| 10 |
A/Trans Wiring Harness Assembly |
| 11 |
Park Pawl |
| 12 |
Torque Dampener and Differential (w/Fluid Pump) Housing Assembly |
| 13 |
Front Differential Drive Pinion Gear |
| 14 |
Front Differential Ring Gear |
| 15 |
Park Gear |
| 16 |
A/Trans Output Speed Sensor Assembly |
| 17 |
Front Differential Carrier Assembly |
| 18 |
Front Differential Transfer Driven Gear |
| 19 |
A/Trans Case Assembly |
| 20 |
Front Differential Transfer Drive Gear Fluid Passage Tube Assembly |
| 21 |
Front Differential Transfer Drive Gear |
| 22 |
Drive Motor/Generator Rotor Assembly - Unit B |
| 23 |
A/Trans Case Cover Assembly |
| 24 |
Output Sun Gear Shaft |
| 25 |
Drive Motor/Generator Position Sensor Stator Assembly |
| 26 |
Output Carrier Assembly |
| 27 |
Variable Hi and 2-3-4 Clutch Assembly |
| 28 |
Variable Low and 1-2 Reverse Clutch Assembly |
| 29 |
Control Solenoid (w/Body and TCM) TEHCM Valve Assembly |
| 30 |
Control Valve Body |
| 31 |
Control Valve Body Cover Assembly |
| 32 |
Drive Motor/Generator Rotor Assembly - Unit B |
