Steering Linkage Outer Tie Rod Replacement

Preliminary Procedures

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
2. Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .

Procedure

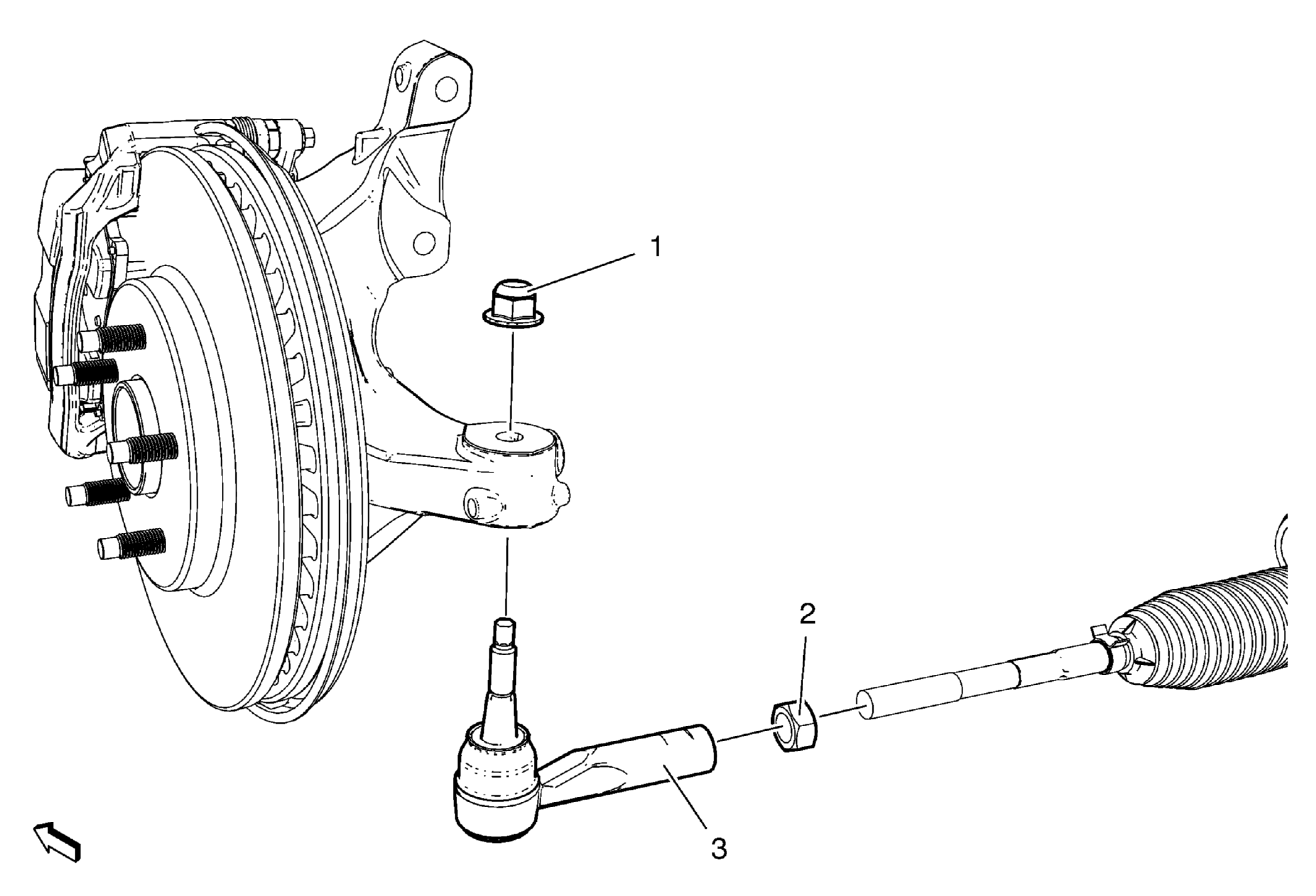

1. Remove and DiISCARD the steering linkage outer tie rod nut. Use a wrench to prevent the tie rod stud from spinning.
2. Install a NEW steering linkage outer tie rod nut. Use a wrench to prevent the tie rod stud from spinning.

Procedure

1. Use paint in order to place match marks on the steering linkage inner tie rod nut and on the steering linkage inner tie rod.
2. During the installation, align the match marks.
3. Do not tighten the nut during the installation. Tighten the nut after adjusting the front toe. Refer to Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment .

Procedure

1. Use the CH-24319-B  puller in order to separate the steering linkage outer tie rod from the steering knuckle.
2. Inspect the steering linkage inner tie rod for bent or damaged threads.
3. Clean the tapered surface of the steering knuckle.
4. After the installation, measure and adjust the front toe. Refer to Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment .
5. Center the steering angle sensor. Refer to Steering Angle Sensor Centering .
