Installation Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

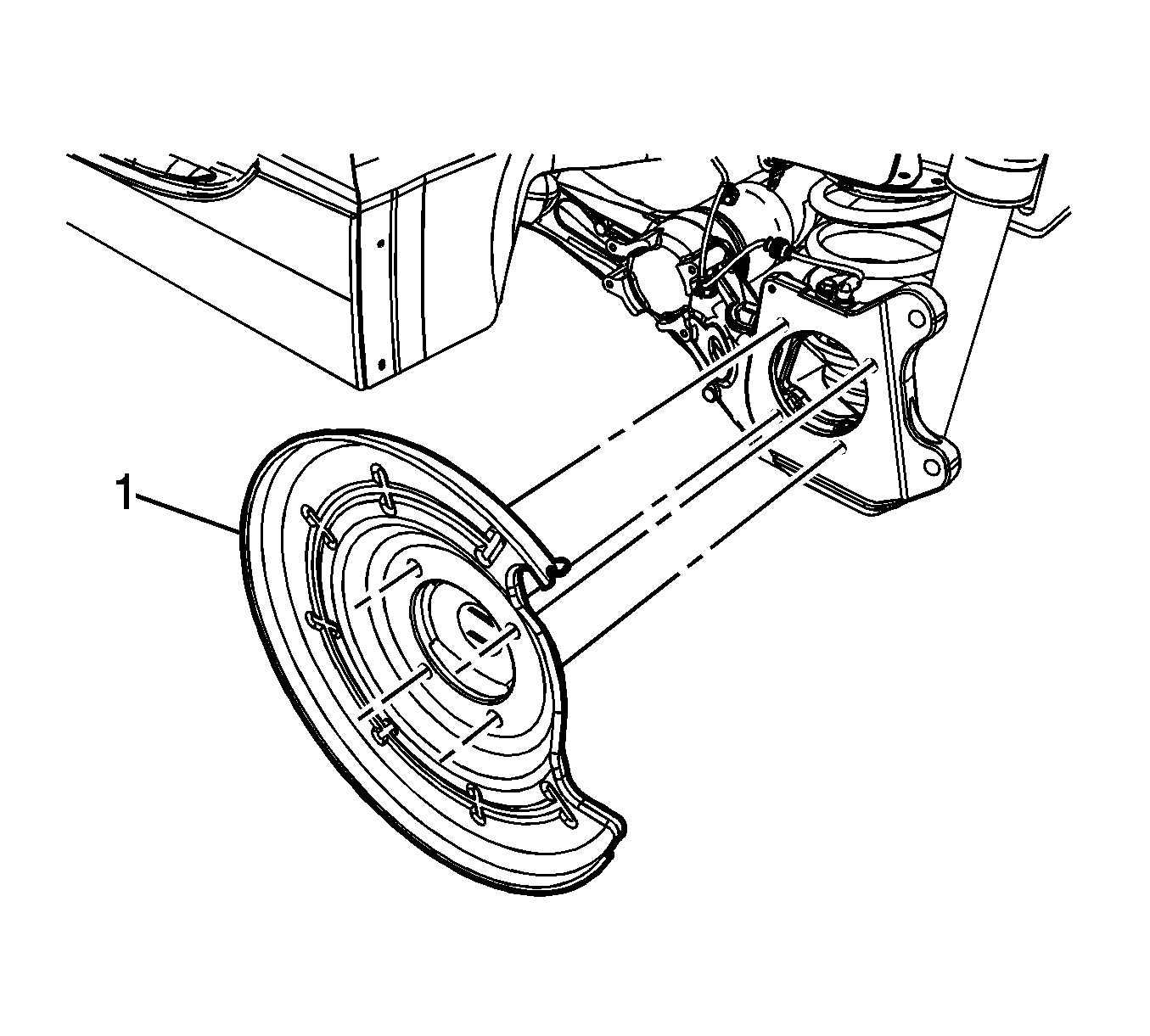

    Fig 1: Rear Brake Shield
    GM2375943Courtesy of GENERAL MOTORS CORP.
  1. Install the rear brake shield (1).

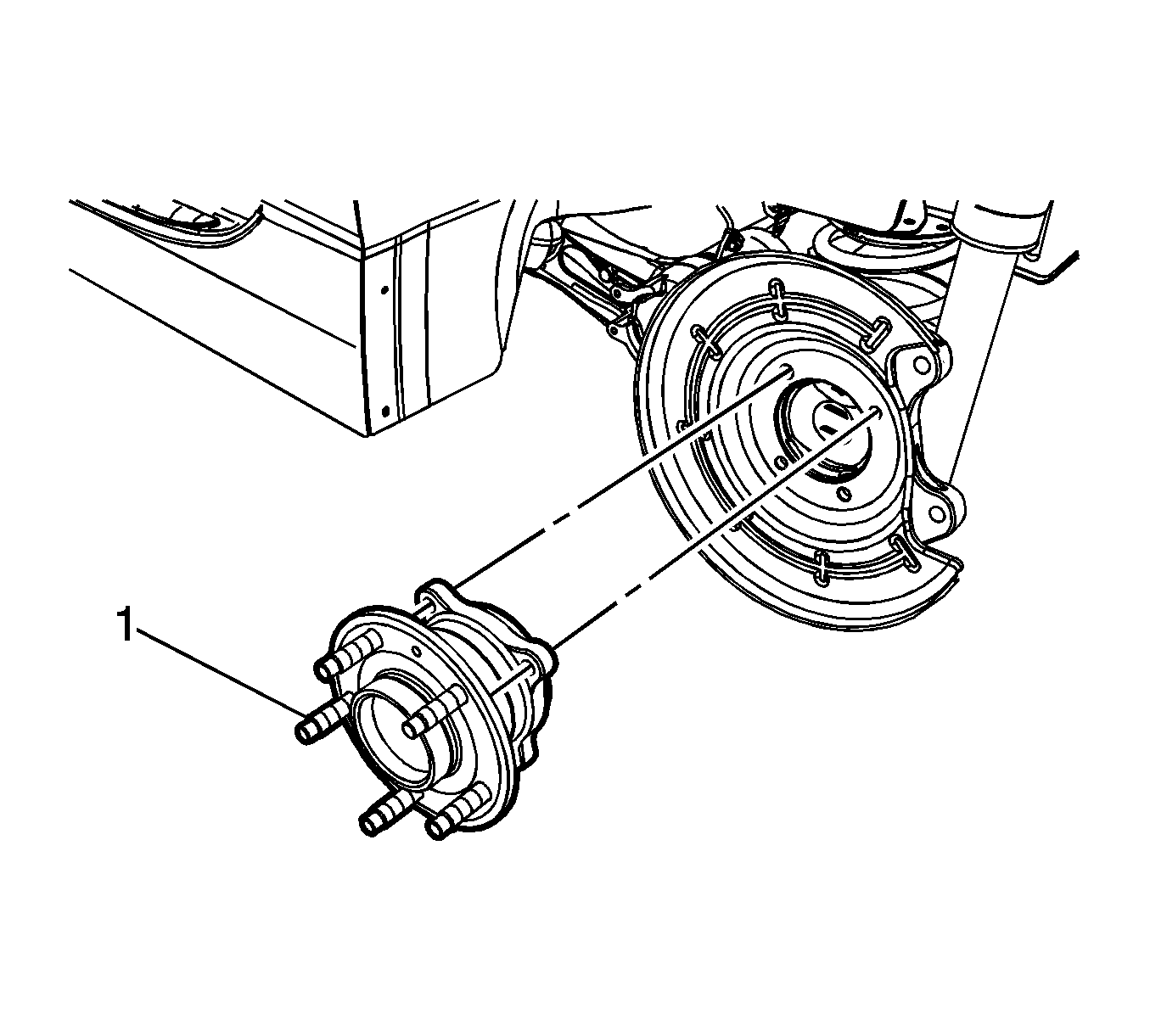

    2. Fig 2: Rear Wheel Bearing And Hub Assembly
    GM2375938Courtesy of GENERAL MOTORS CORP.
  2. Install the rear wheel bearing and hub assembly (1). Refer to Rear Wheel Bearing and Hub Replacement .
  3. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
