Installation Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

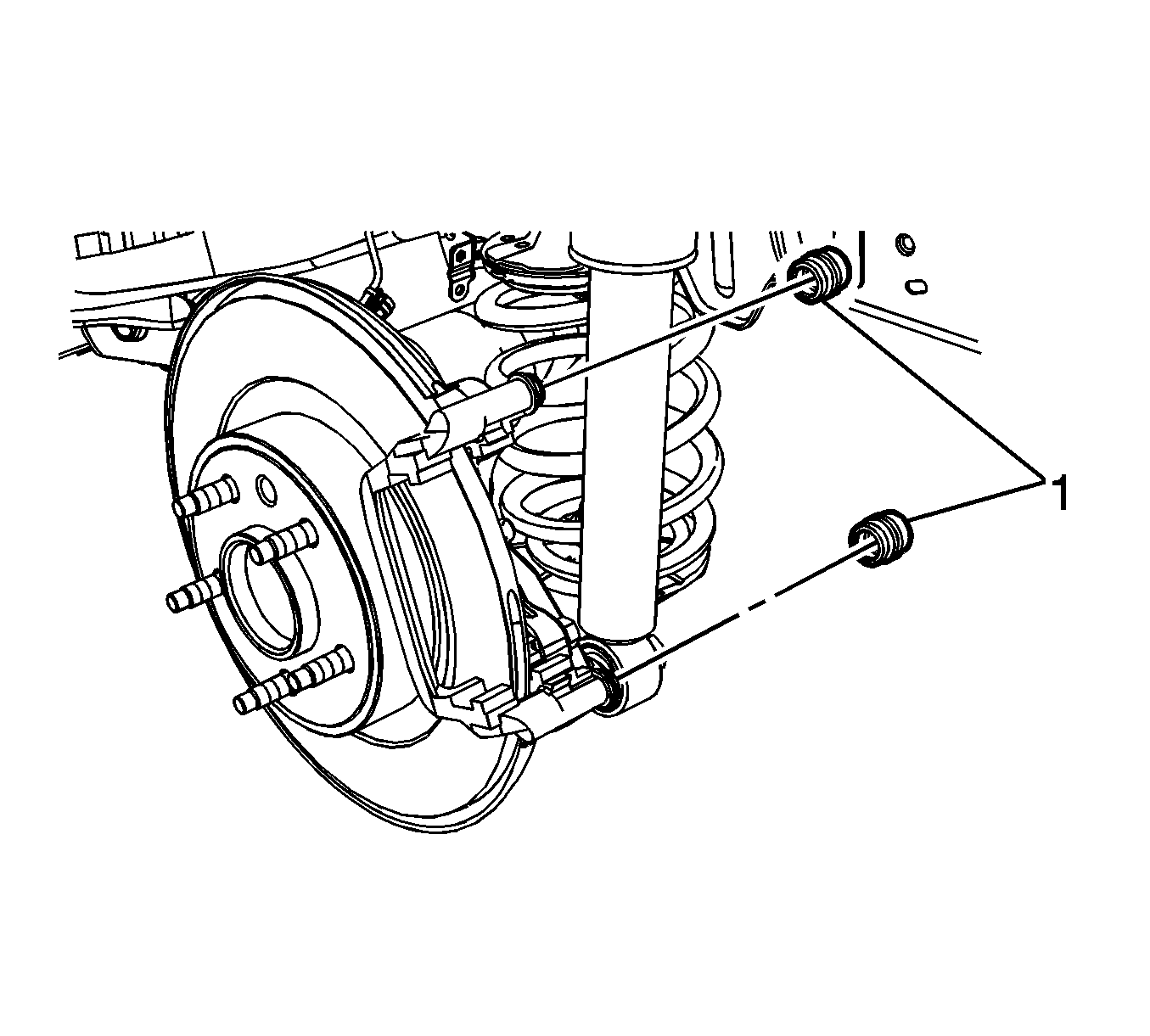

Fig 1: Brake Caliper Guide Pin Seals

Courtesy of GENERAL MOTORS CORP.

Install the brake caliper guide pin seals (1).
Ensure the brake caliper guide pin seals are fully seated in the groove of the brake caliper bracket.

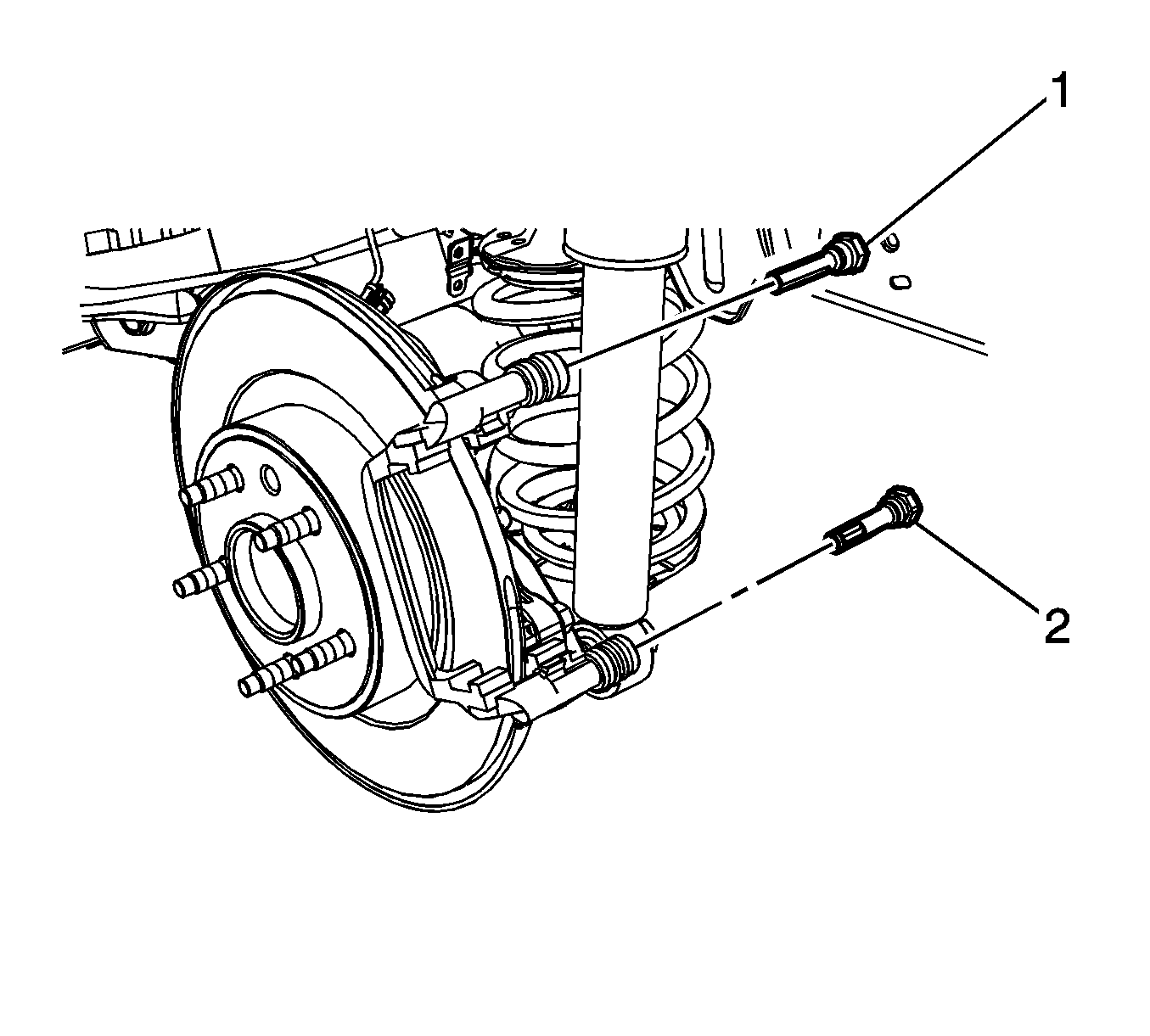

Fig 2: Brake Caliper Guide Pins

Courtesy of GENERAL MOTORS CORP.

Install the upper brake caliper guide pin (1).

NOTE: The lower brake caliper guide pin is equipped with a bushing, and must be installed in the same location in the caliper bracket.

Install the lower brake caliper guide pin (2).
Ensure the brake caliper guide pin seals are fully seated in the groove of the brake caliper guide pins.
Position the brake caliper over the brake pads and to the caliper bracket.

Fig 3: Locating Caliper Guide Pins & Caliper Guide Pin Bolts

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Using a backup wrench to hold the brake caliper guide pin (1) stationary, install the brake caliper guide pin bolts (2) and tighten to 28 N.m (21 lb ft).
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
