Front Turn Signal Lamp Bulb Replacement
WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary: Remove the front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement . |
|

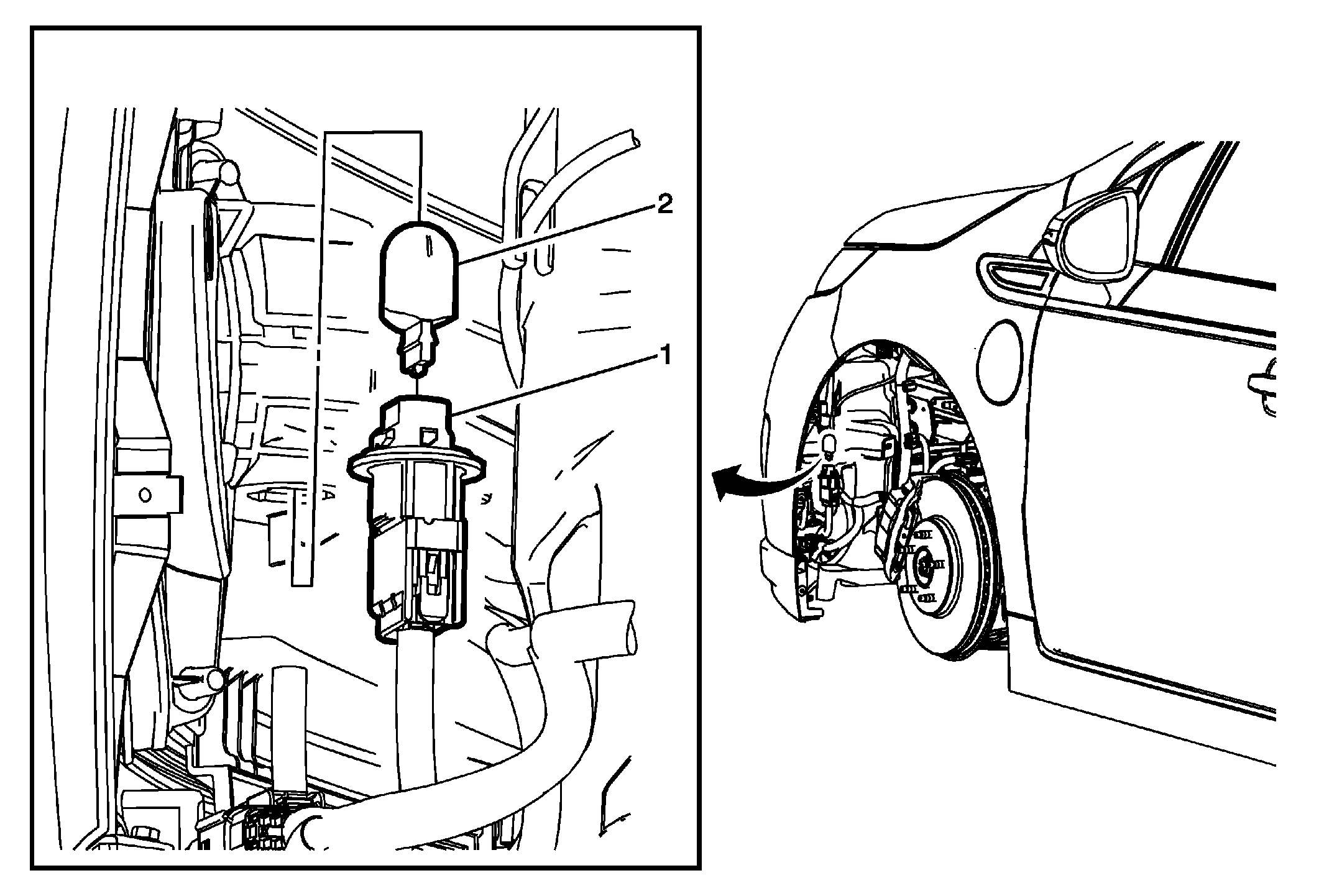

| 1 | Front Turn Signal Bulb Socket Procedure: Rotate the bulb socket a quarter tun counter-clockwise and remove the front turn signal lamp assembly. |
| 2 | Front Turn Signal Bulb Procedure: Pull the turn signal lamp bulb from the front turn signal lamp bulb socket. |
