Backup Lamp Bulb Replacement
WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

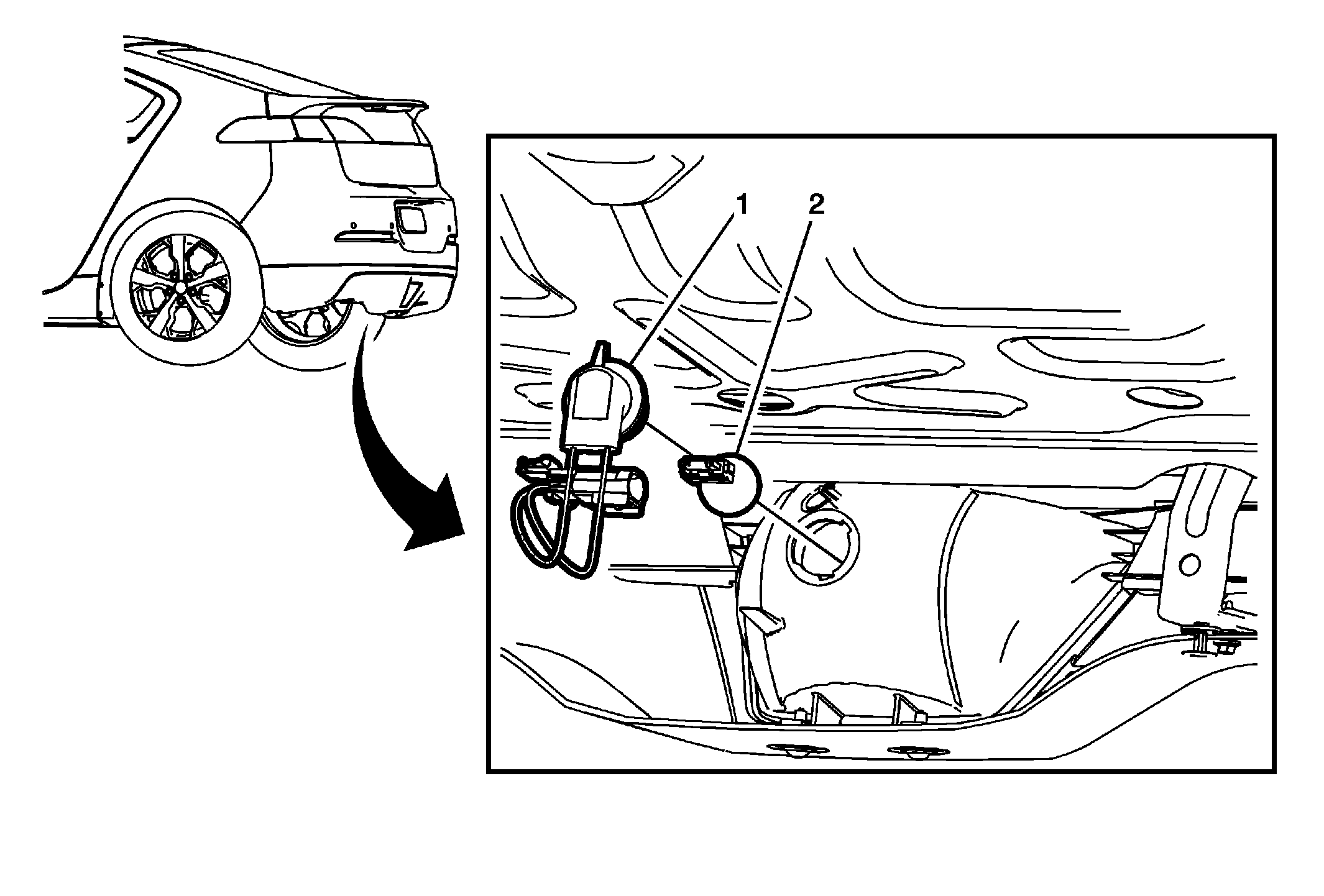

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the underbody rear air deflector. Refer to Underbody Rear Air Deflector Replacement . |
|
| 1 | Back Up Lamp Bulb Socket Procedure: Rotate the bulb socket a quarter turn counter-clockwise and remove from the lamp housing. |
| 2 | Back Up Lamp Bulb Tip: Do not touch the bulb with bare fingers, use a cotton shop towel to cover when replacing the bulb. |
