Installation Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

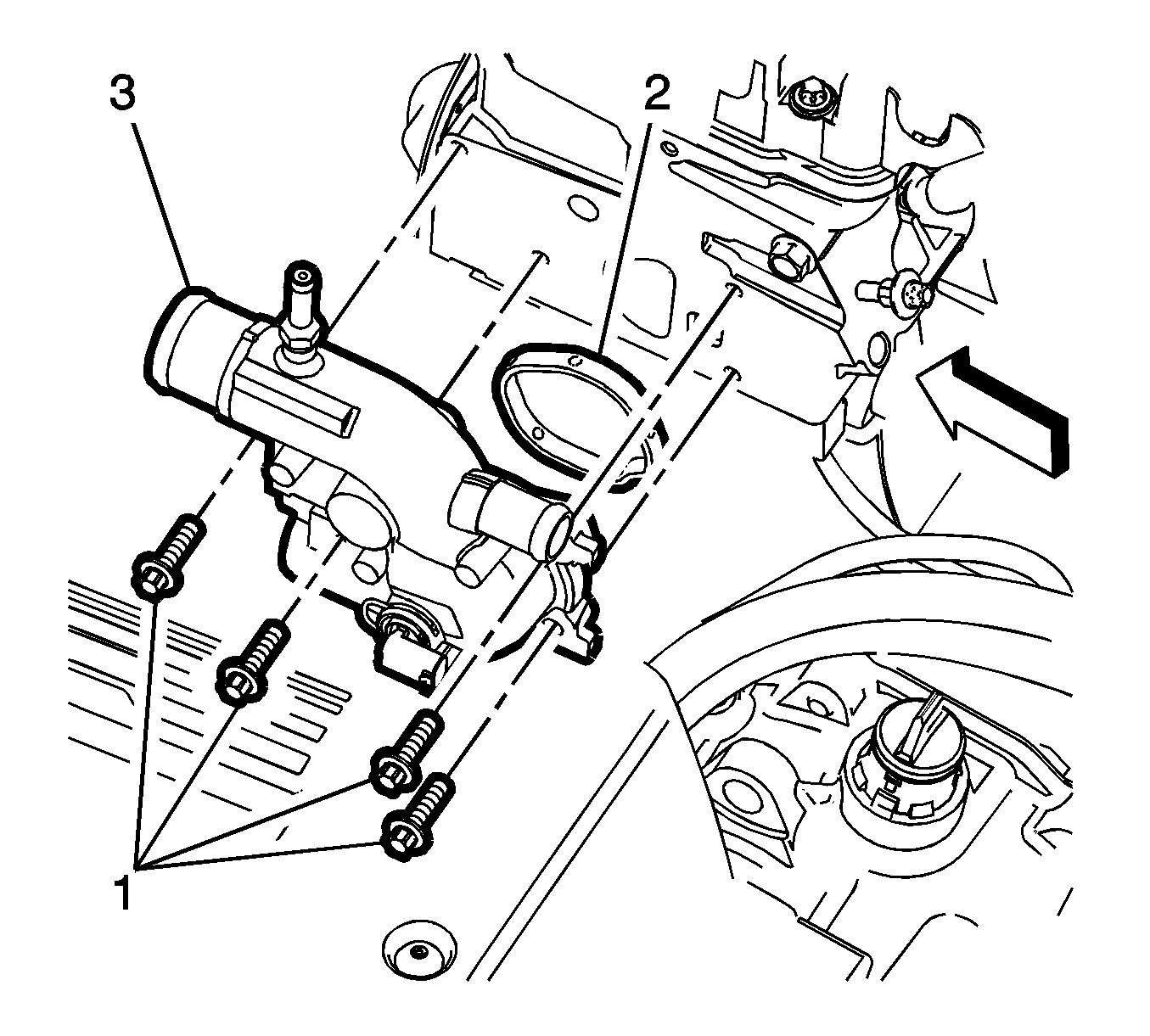

Fig 1: Water Outlet And Bolts

Courtesy of GENERAL MOTORS CORP.

Position the water outlet (3) and a NEW seal (2), to the cylinder head.

CAUTION: Refer to Fastener Caution .

Install the water outlet bolts (1) and tighten to 8 N.m (71 lb in).

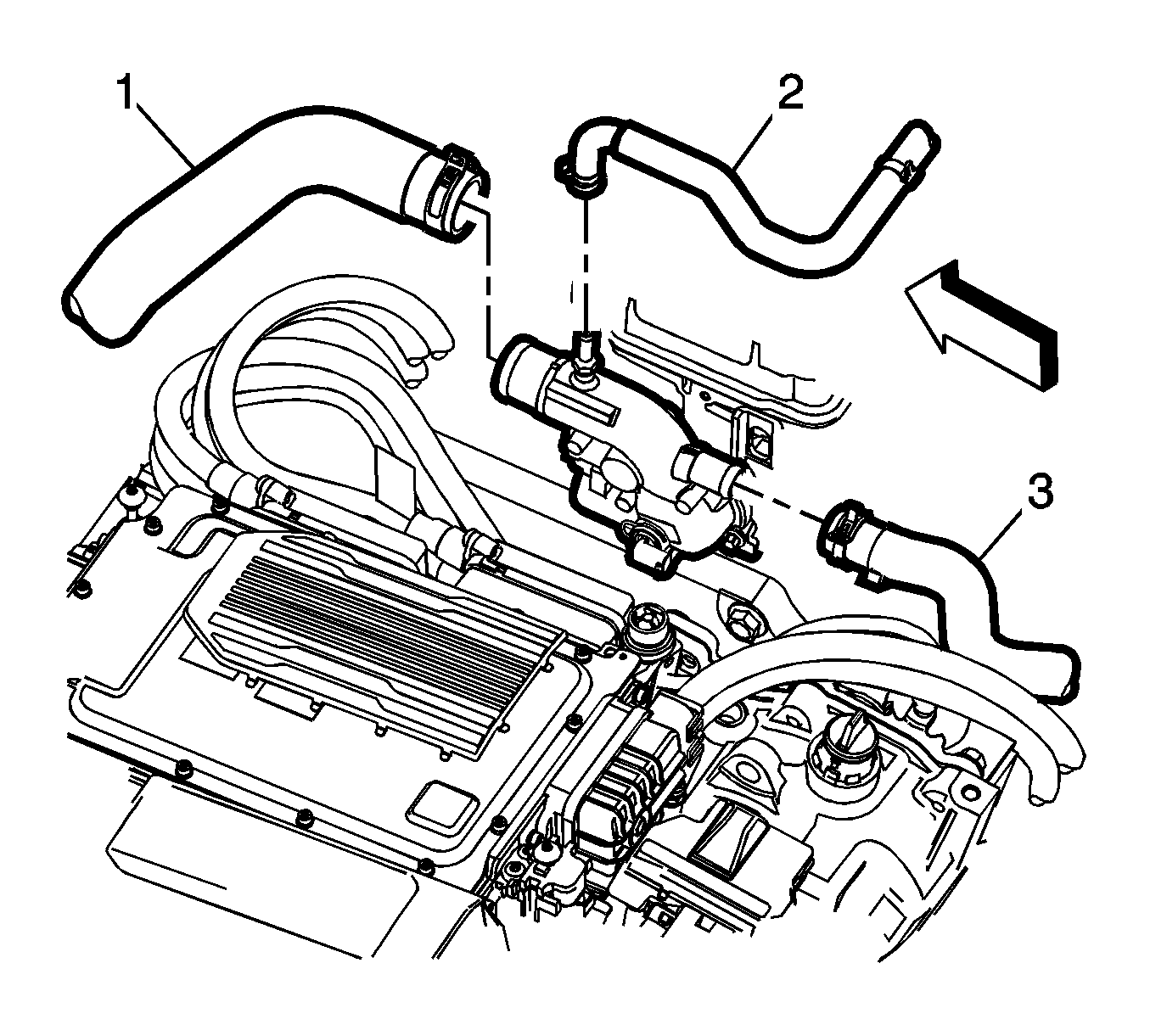

Fig 2: Radiator Inlet Hose And Heater Outlet Hose

Courtesy of GENERAL MOTORS CORP.

Install the A/C compressor front hose, if necessary. Refer to Air Conditioning Compressor Front Hose Replacement .

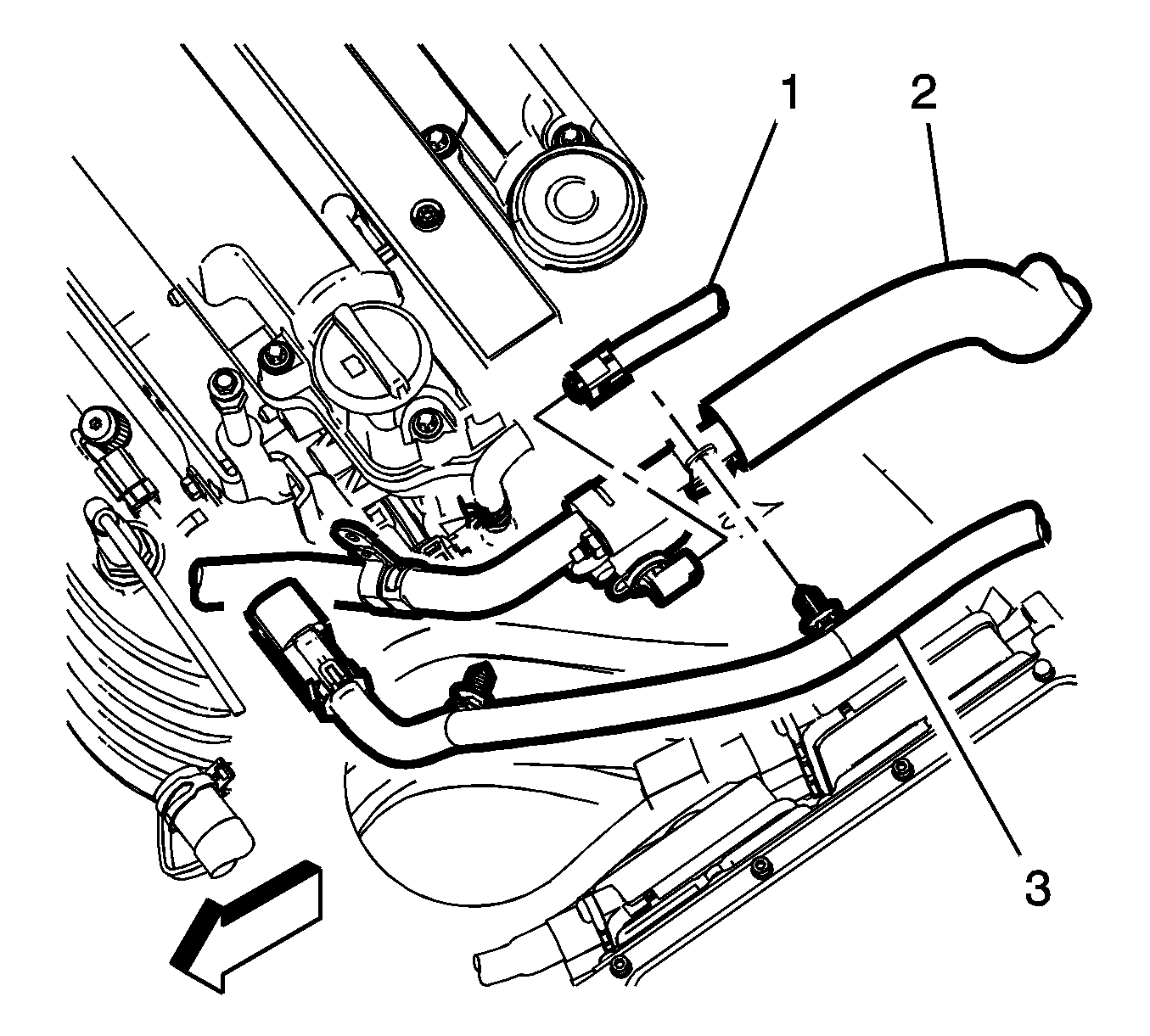

Fig 3: A/C Compressor Cable And A/C Compressor Hose

Courtesy of GENERAL MOTORS CORP.

Install the engine coolant temperature sensor (1) and the battery positive cable (3), to the A/C compressor hose (2).
Install the air cleaner resonator outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
Fill the radiator coolant system. Refer to Cooling System Draining and Filling .
Start the engine and check for coolant leaks.
