Radiator Upper Bracket Replacement
WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

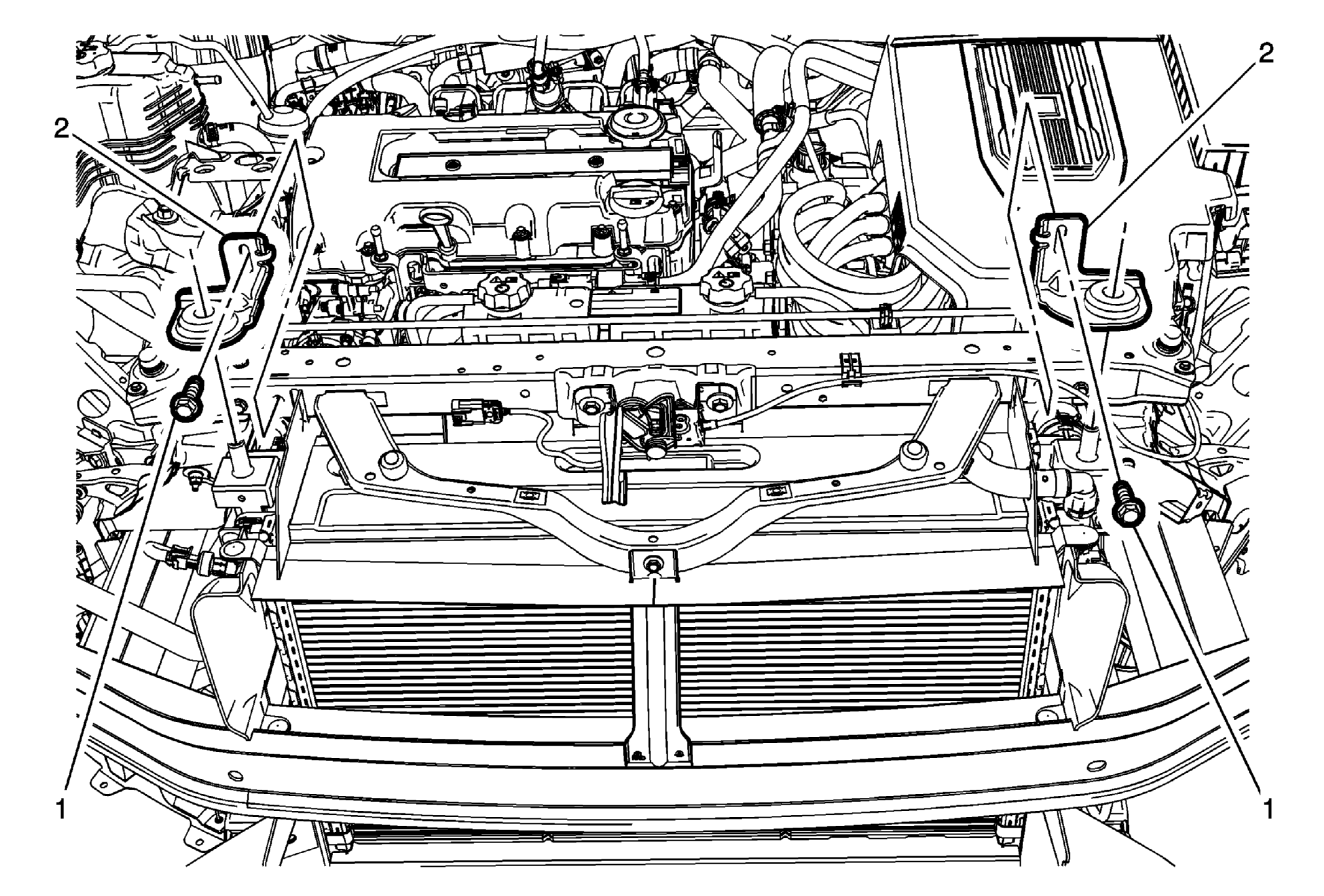

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement |
|
| 1 | Radiator Upper Bracket Bolt (Qty 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 22 N.m (16 lb ft) |
| 2 | Radiator Upper Bracket (Qty 2) |
