Installation Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

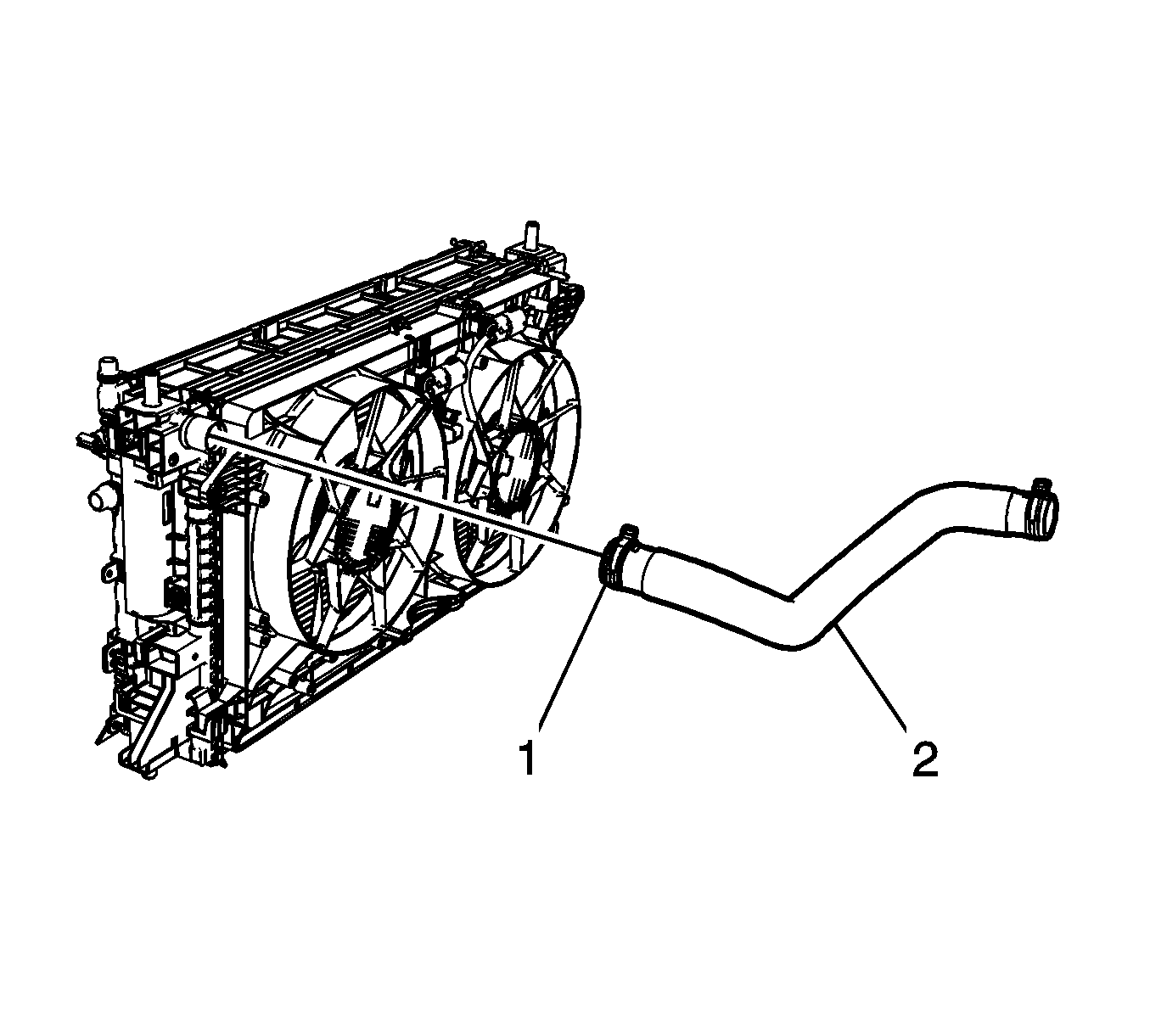

    Fig 1: Radiator Inlet Hose And Radiator
    GM2375982Courtesy of GENERAL MOTORS CORP.
  1. Install the radiator outlet front hose to the vehicle.
  2. Install the radiator outlet front hose (2) to the radiator.
  3. Install the radiator outlet front hose clamp (1) at radiator using BO-38185:  Hose Clamp Pliers.

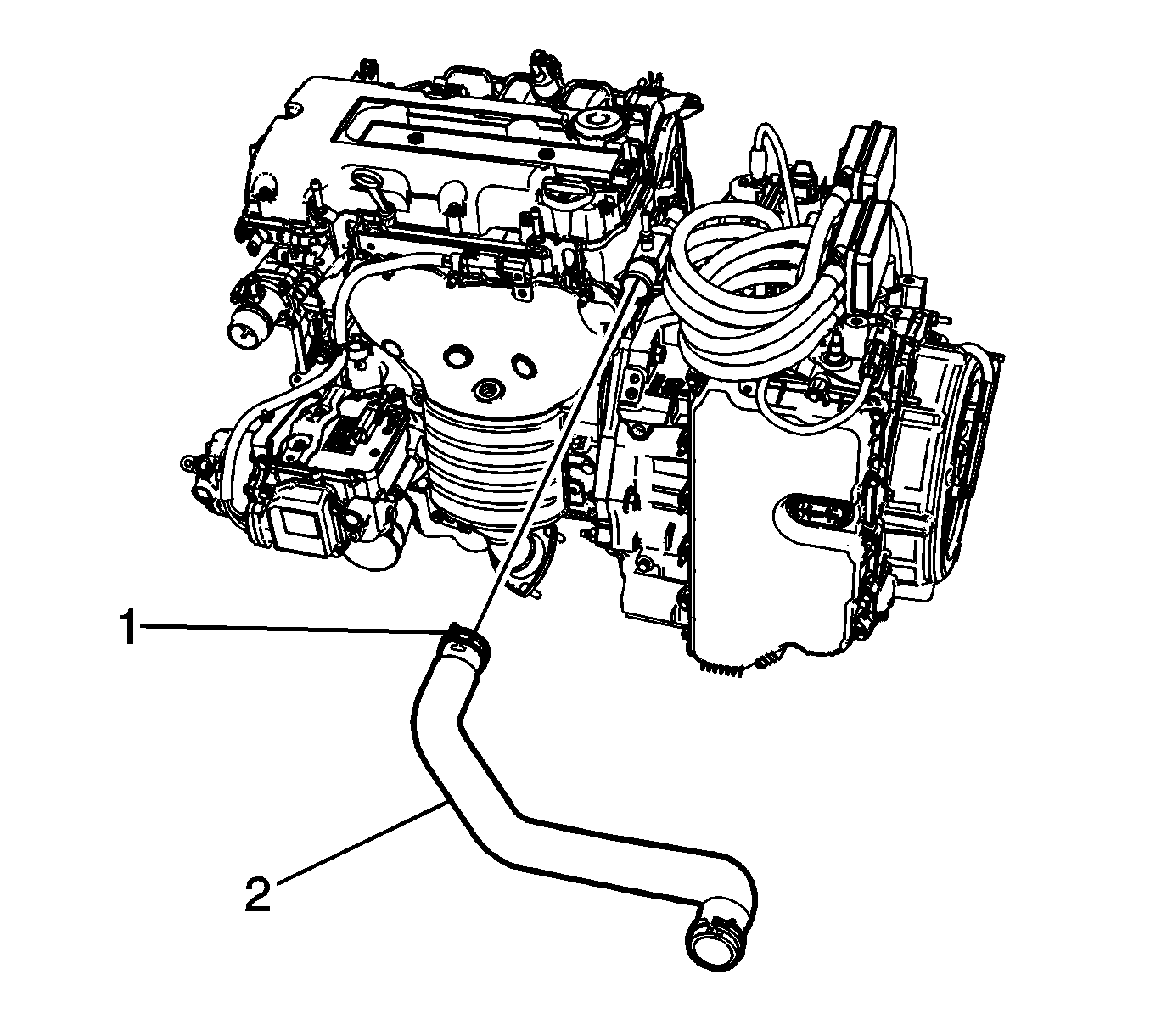

    4. Fig 2: Radiator Inlet Hose And Clamp
    GM2375983Courtesy of GENERAL MOTORS CORP.
  4. Install the radiator outlet front hose (2) to the engine.
  5. Connect the radiator outlet front hose quick connect (1) at engine.
  6. Lower the vehicle.
  7. Install the heater coolant heater air supply hose to the radiator outlet front hose. Refer to Heater Coolant Heater Air Supply Hose Replacement
  8. Remove the air cleaner resonator outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement
  9. Fill the cooling system. Refer to Cooling System Draining and Filling
