Fuel Feed Pipe Replacement (Engine Compartment)

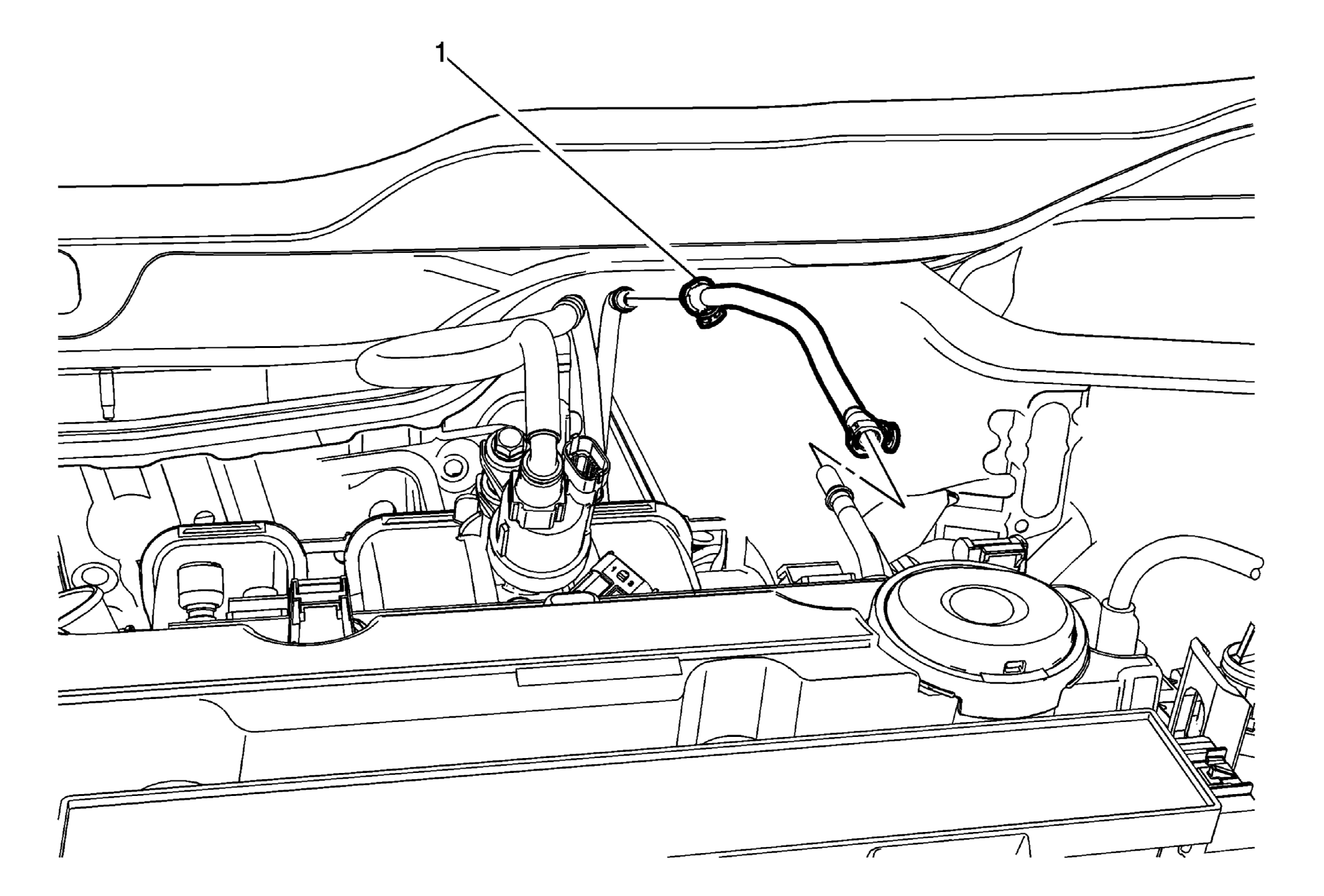

Fig 1: Fuel Feed Pipe (Engine Compartment)
GM2384880Courtesy of GENERAL MOTORS COMPANY
Fuel Feed Pipe Replacement (Engine Compartment)

Callout Component Name

Preliminary Procedure

  1. Remove the air cleaner resonator. Refer to Air Cleaner Resonator Outlet Duct Replacement .
  2. Disconnect the fuel feed pipe connector. Refer to Plastic Collar Quick Connect Fitting Service .
1 Fuel Feed Pipe
