Installation Procedure

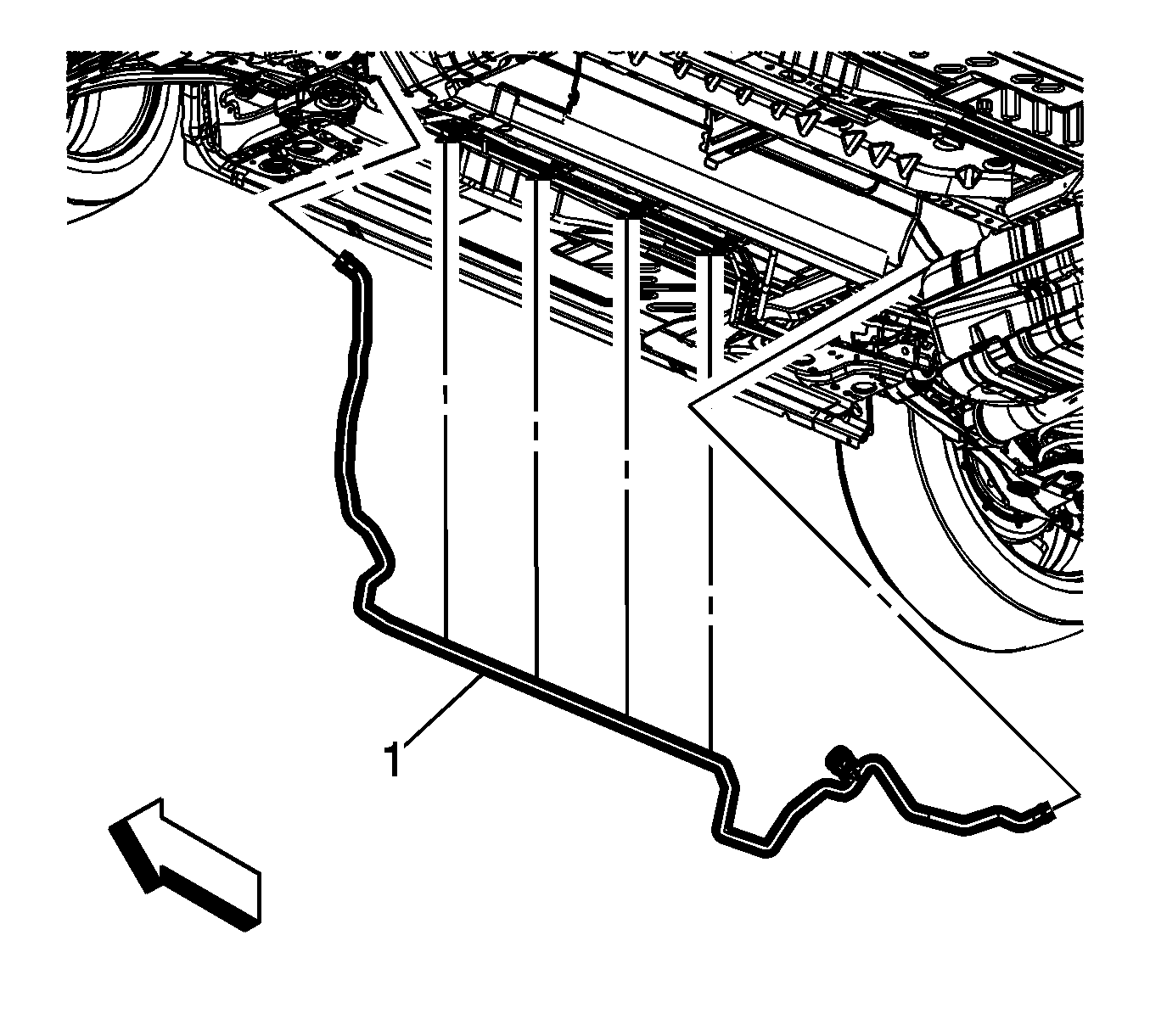

    Fig 1: fuel feed pipe
    GM2742228Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel feed pipe (1) to the vehicle.

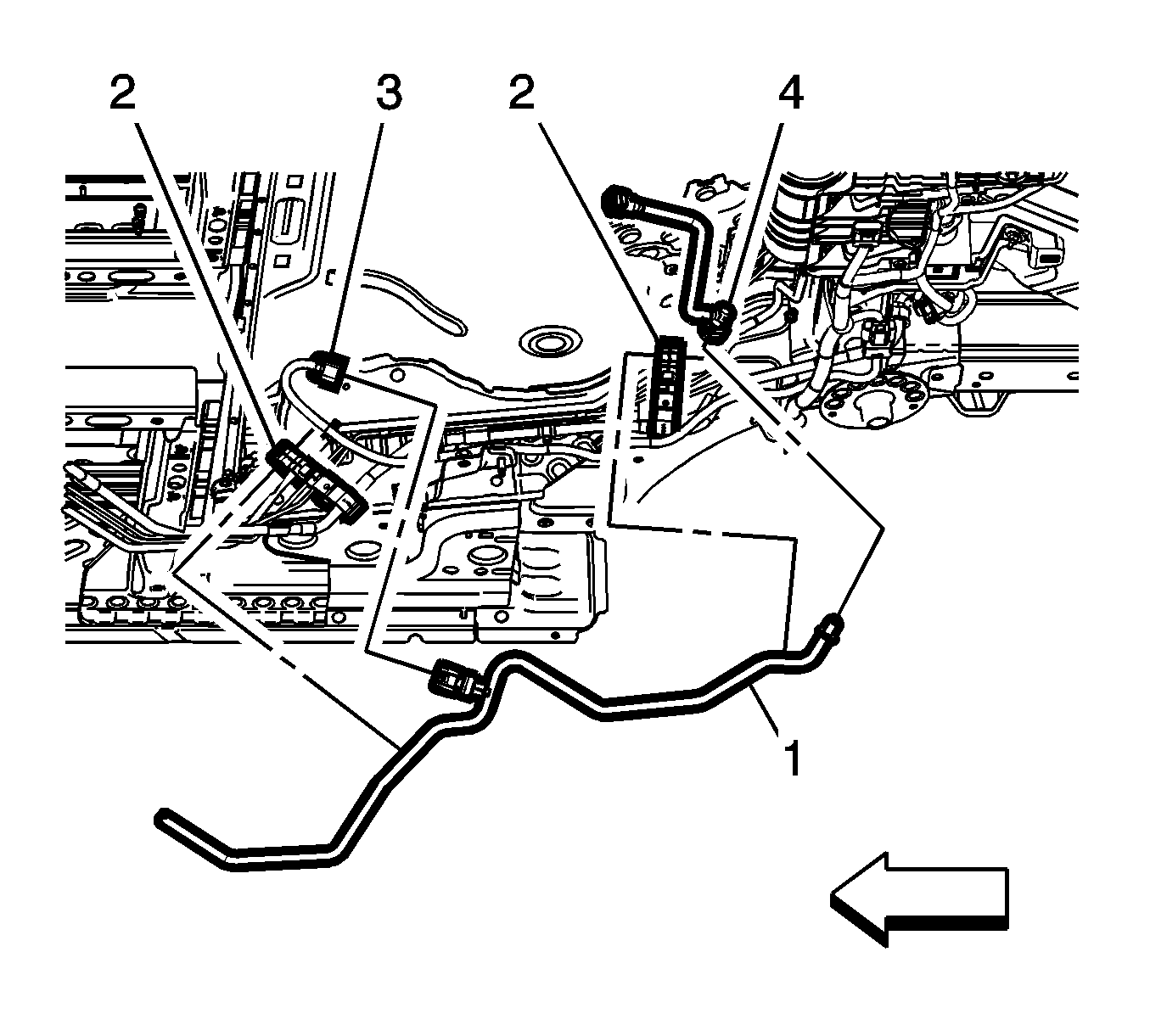

    2. Fig 2: Fuel Feed Pipe Location
    GM2399368Courtesy of GENERAL MOTORS COMPANY
  2. Connect the fuel feed pipe quick connect (4). Refer to Plastic Collar Quick Connect Fitting Service .
  3. Install the fuel feed pipe (1) to the plastic clips (2).
  4. Connect the fuel pressure sensor electrical connector (3).

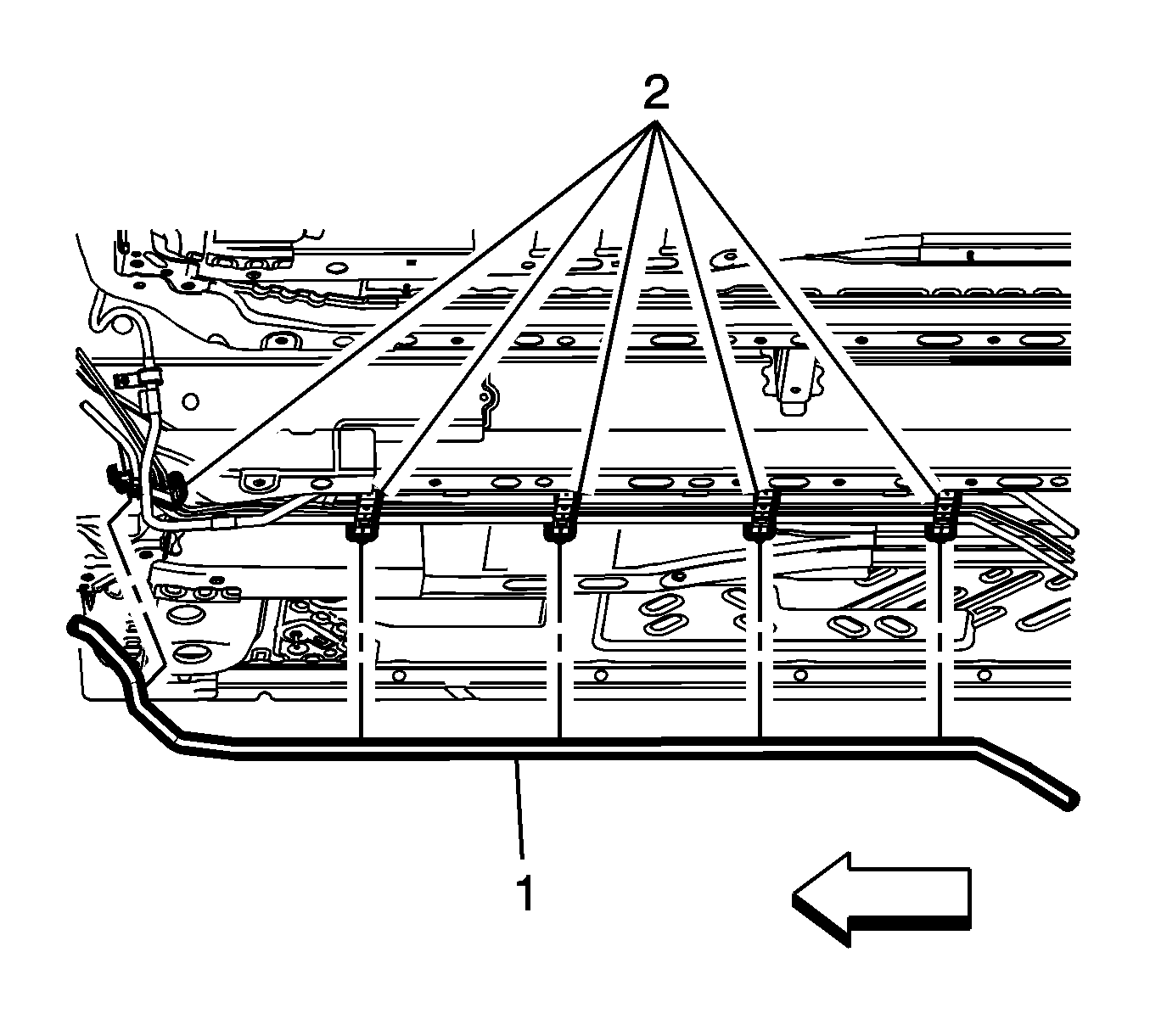

    5. Fig 3: Fuel Feed Pipe
    GM2399328Courtesy of GENERAL MOTORS COMPANY
  5. Install the fuel feed pipe (1) to the plastic clips (2).

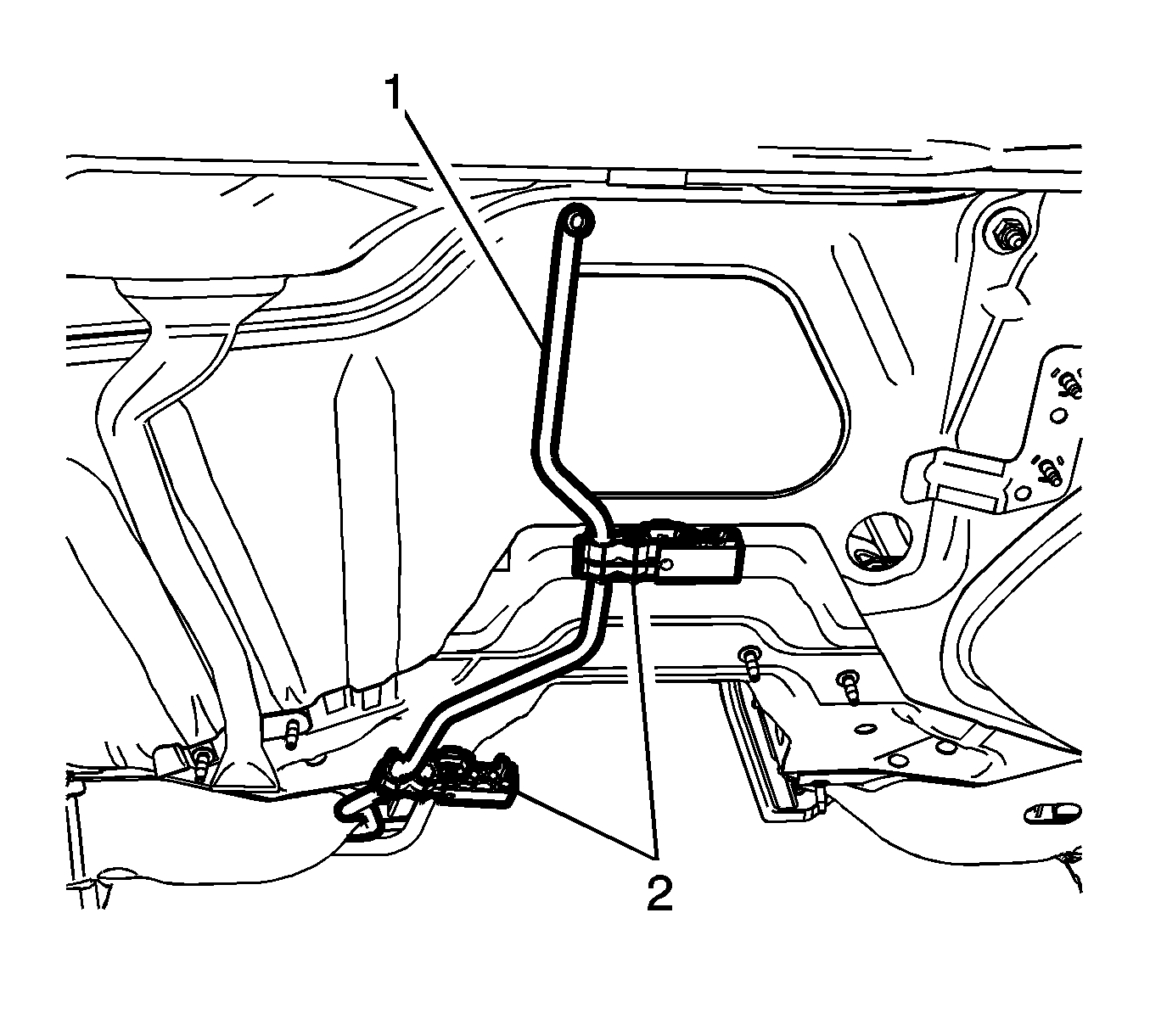

    6. Fig 4: Fuel Feed Pipe And Plastic Clips
    GM2380417Courtesy of GENERAL MOTORS COMPANY
  6. Install the fuel feed pipe (1) to the engine compartment bulkhead plastic clips (2).
  7. Install the fuel tank. Refer to Fuel Tank Replacement .
  8. Install the drivetrain and front suspension frame. Refer to Drivetrain and Front Suspension Frame Replacement (Volt) .
  9. Install the engine compartment fuel feed pipe. Refer to Fuel Feed Pipe Replacement (Engine Compartment) , Fuel Feed Pipe Replacement (Chassis) .
