Engine Coolant Temperature Sensor Replacement (Water Outlet)

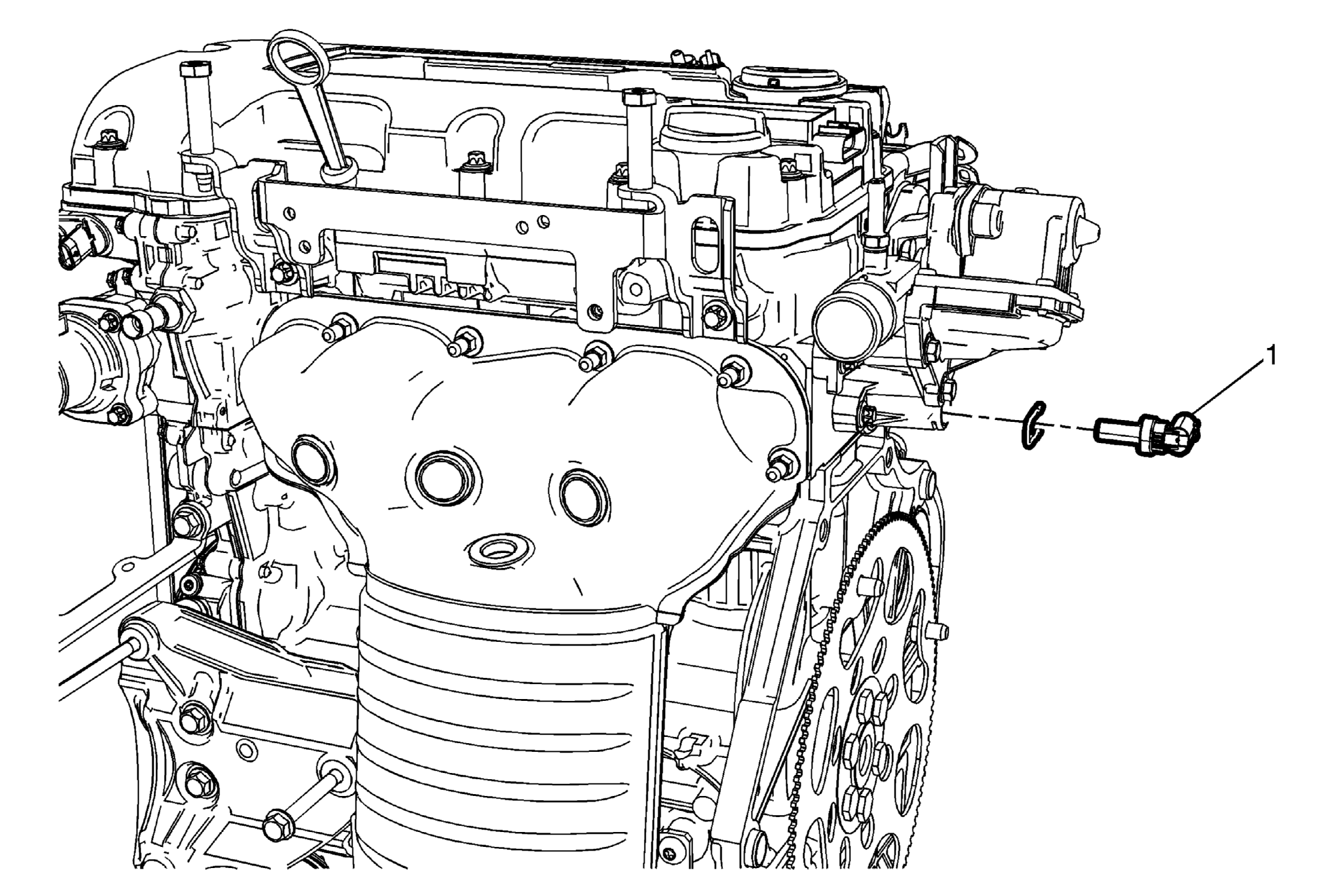

Fig 1: Engine Coolant Temperature Sensor
GM2738646Courtesy of GENERAL MOTORS COMPANY
Engine Coolant Temperature Sensor Replacement (Water Outlet)

Callout Component Name
Preliminary Procedures
Partially drain the cooling system. Refer to Cooling System Draining and Filling .
1 Engine Coolant Temperature Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Remove the retaining clip.
