Camshaft Position Sensor Replacement (Exhaust)

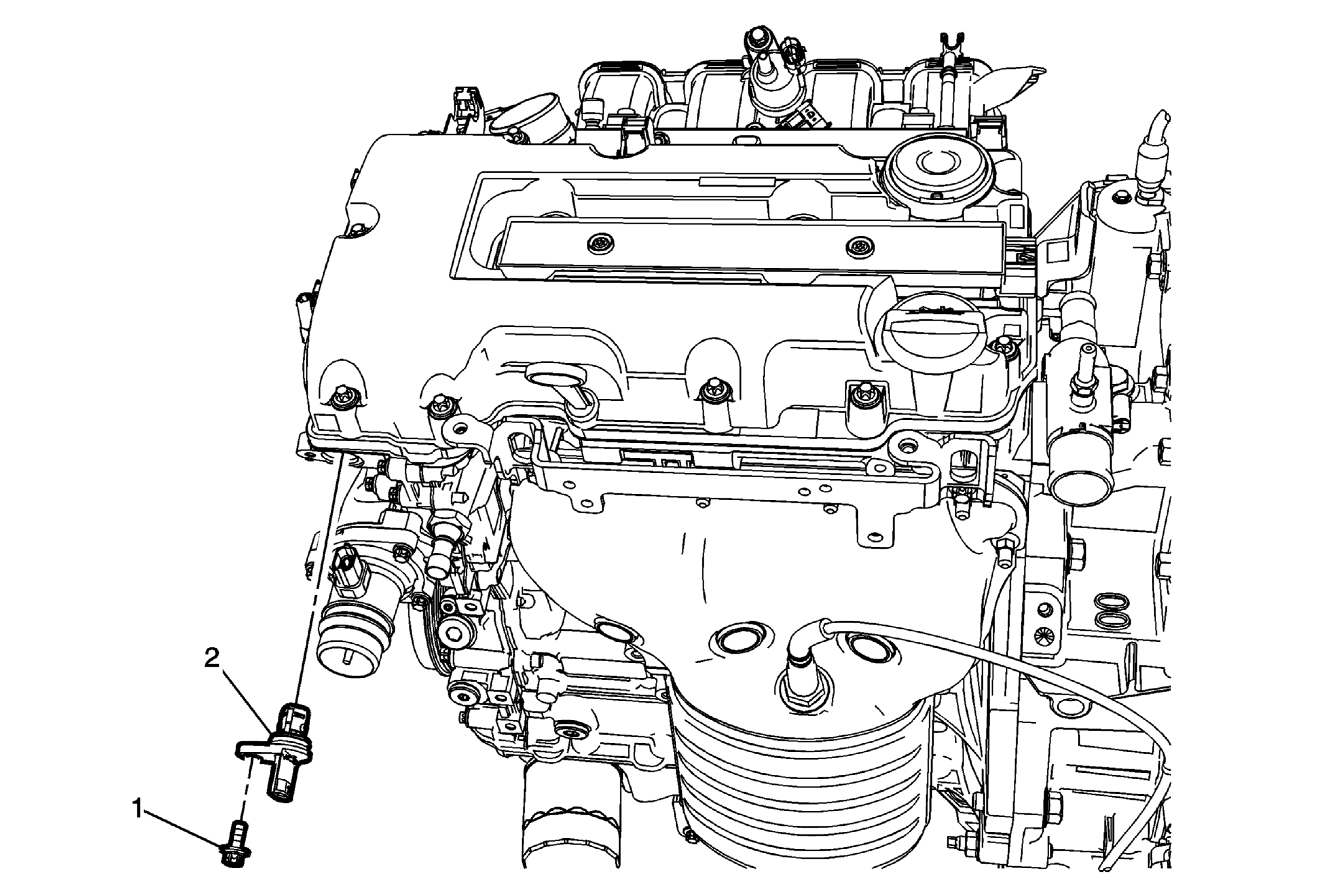

Fig 1: Camshaft Position Sensor (Exhaust)

Courtesy of GENERAL MOTORS COMPANY

Camshaft Position Sensor Replacement (Exhaust)

Callout	Component Name
Preliminary Procedure  Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
1	Camshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten  8 N.m (71 lb in)
2	Camshaft Position Sensor Procedure  Disconnect the electrical connector.
