Air Cleaner Outlet Duct Replacement

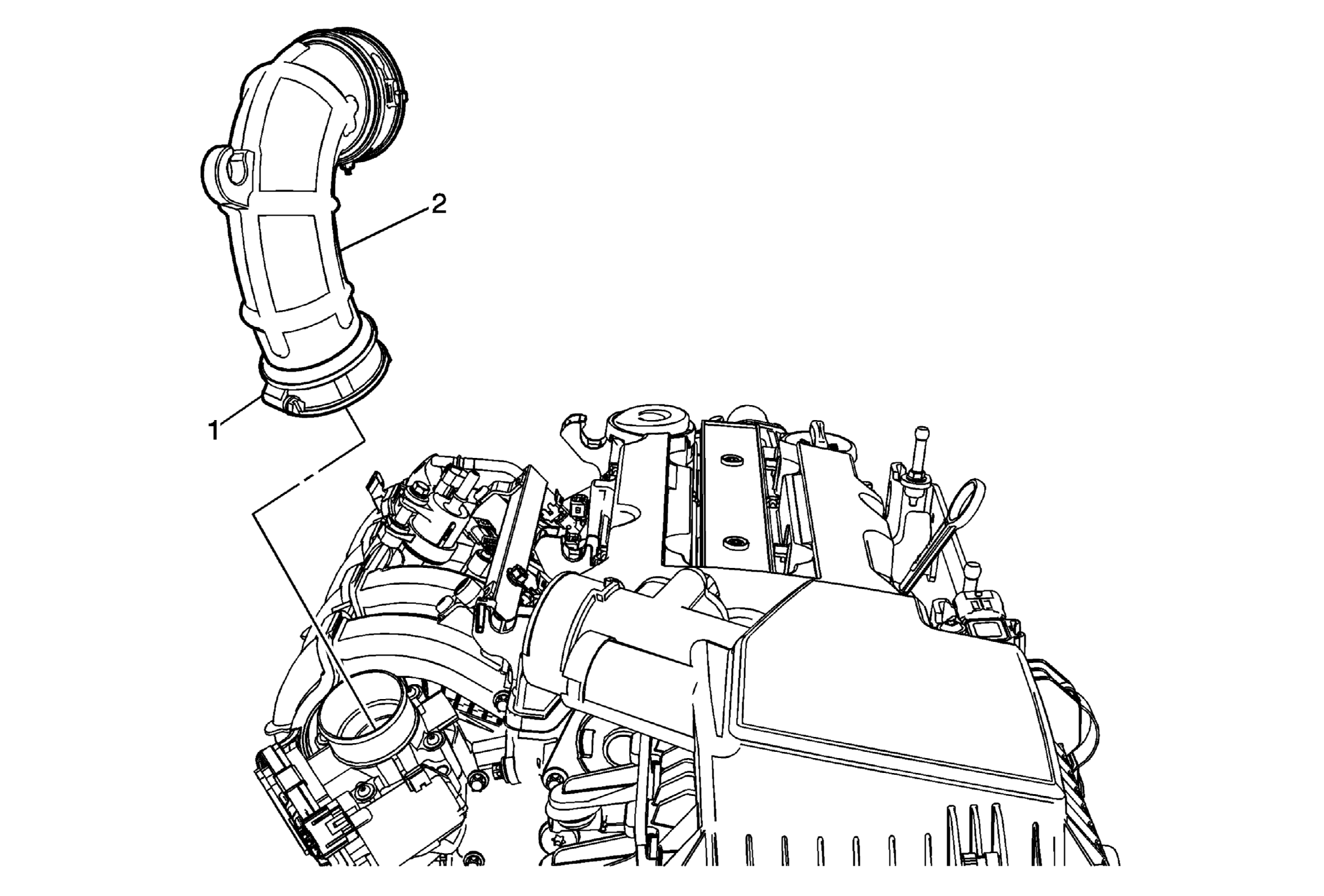

Fig 1: Air Cleaner Outlet Duct
GM2379668Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Outlet Duct Replacement

Callout Component Name
Preliminary Procedure
Remove the air cleaner resonator. Refer to Air Cleaner Resonator Outlet Duct Replacement .
1 Air Cleaner Outlet Duct Clamp
CAUTION:

Refer to Fastener Caution .
2 Air Cleaner Outlet Duct
