Q17D Fuel Injector 4

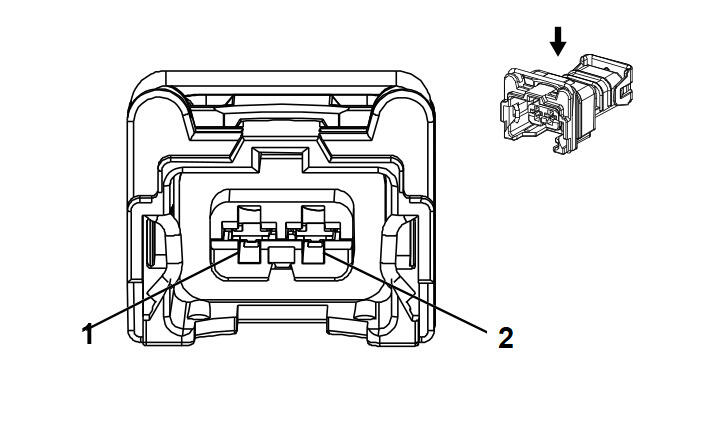

GM2358956

Connector Part Information

Harness Type: Engine
OEM Connector: PPI0001137
Service Connector: 13577536
Description: 2-Way F 2.8 DCS Series, Sealed (BK)

Terminal Part Information

Terminated Lead: Service by Connector Assembly - 13577536
Release Tool: J-38125-557
Diagnostic Test Probe: J-35616-4A (PU)
Terminal/Tray: Pending
Core/Insulation Crimp: Pending

Q17D Fuel Injector 4

Pin	Size	Color	Circuit	Function	Option
1	0.5	VT/L-BU	5291	Powertrain Main Relay Fused Supply (2)	-
2	0.5	BN/YE	844	Fuel Injector Control (4)	-
