Instrument Cluster Replacement

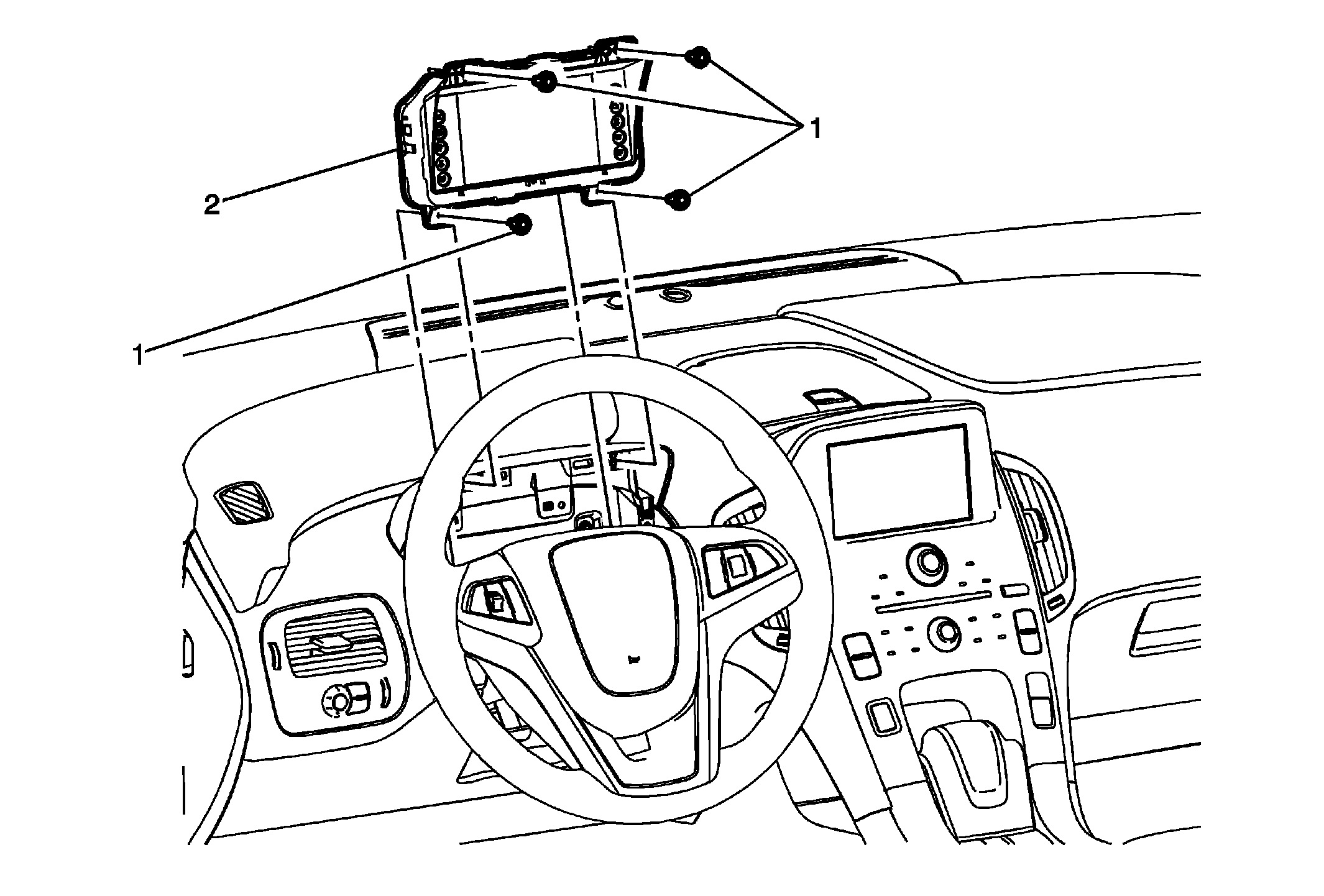

Fig 1: Instrument Cluster
GM2382385Courtesy of GENERAL MOTORS COMPANY
Instrument Cluster Replacement

Callout Component Name
Preliminary Procedure
Remove the instrument panel cluster trim plate and steering column upper trim cover assembly. Refer to Instrument Panel Cluster Trim Plate Replacement .
1 Instrument Cluster Fasteners (Qty: 4)
CAUTION:

Refer to Fastener Caution .
2 Instrument Cluster Assembly
Procedure
Refer to Control Module References for programming and setup information.
