Battery Charge Indicator Replacement

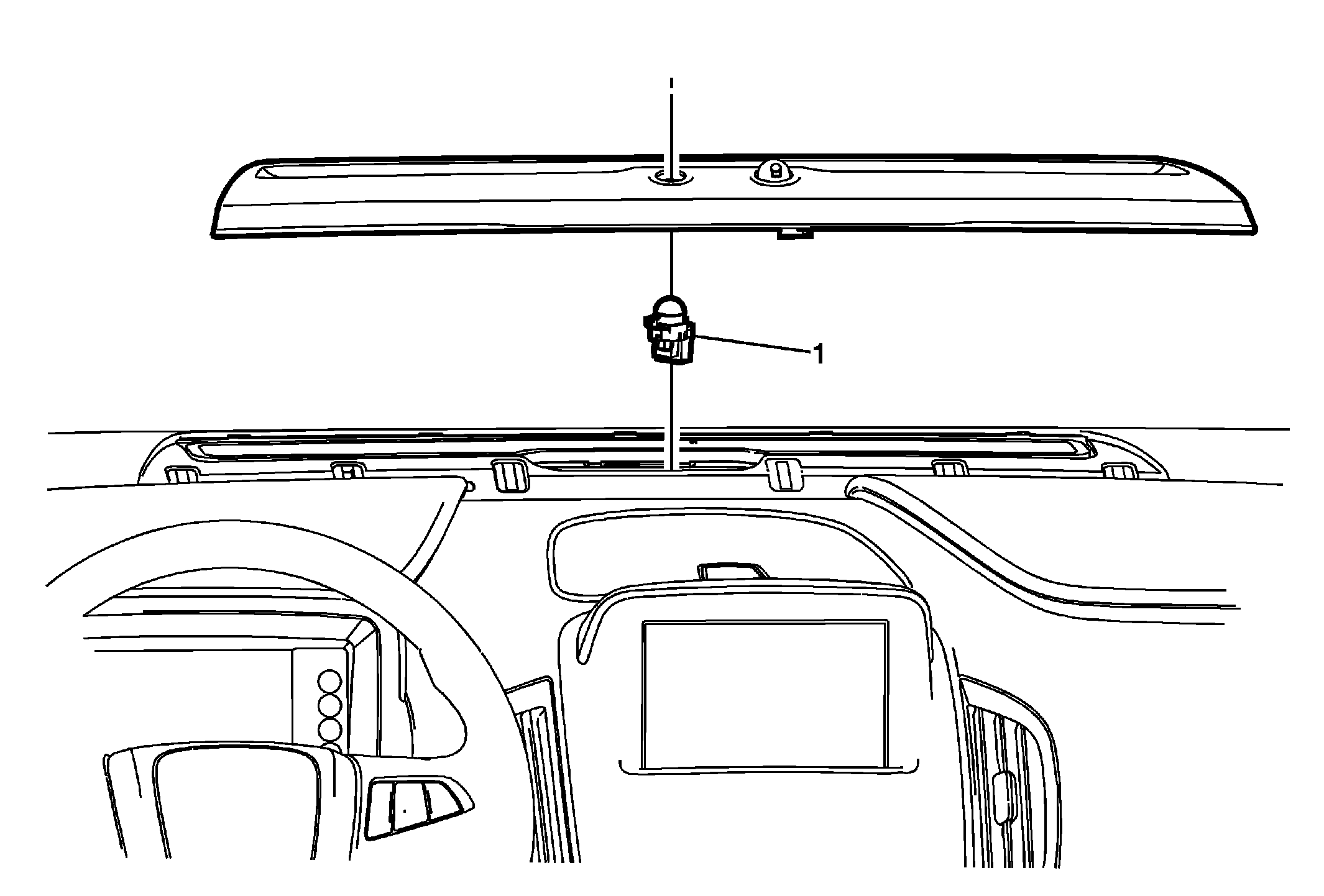

Fig 1: Battery Charge Indicator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement .
1	Battery Charge Indicator Procedure Twist and pull up to remove. Disconnect electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement .

Battery Charge Indicator

Procedure
