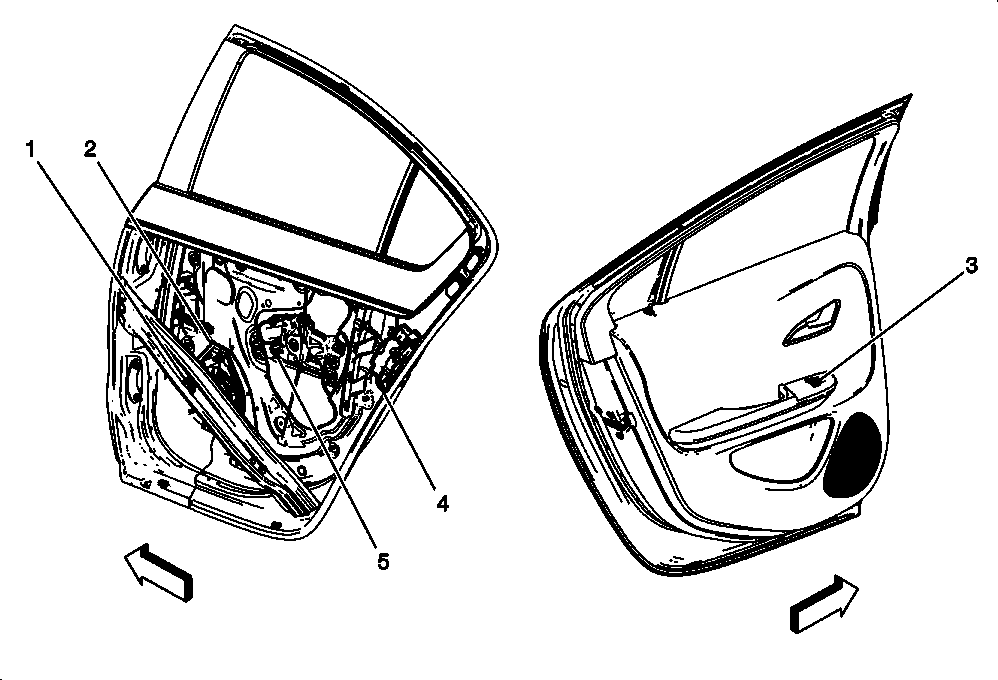

Left Rear Door Components
Left Rear Door Components
| Component Name |
Callout |
| B63LR Side Impact Sensor - Left Rear |
1 |
| P19AL Speaker - Left Rear Door |
2 |
| S79LR Window Switch - Left Rear |
3 |
| A23LR Door Latch Assembly - Left Rear |
4 |
| M74LR Window Motor - Left Rear |
5 |
Courtesy of GENERAL MOTORS COMPANY
