Outside Rearview Mirror Glass Replacement

Procedure

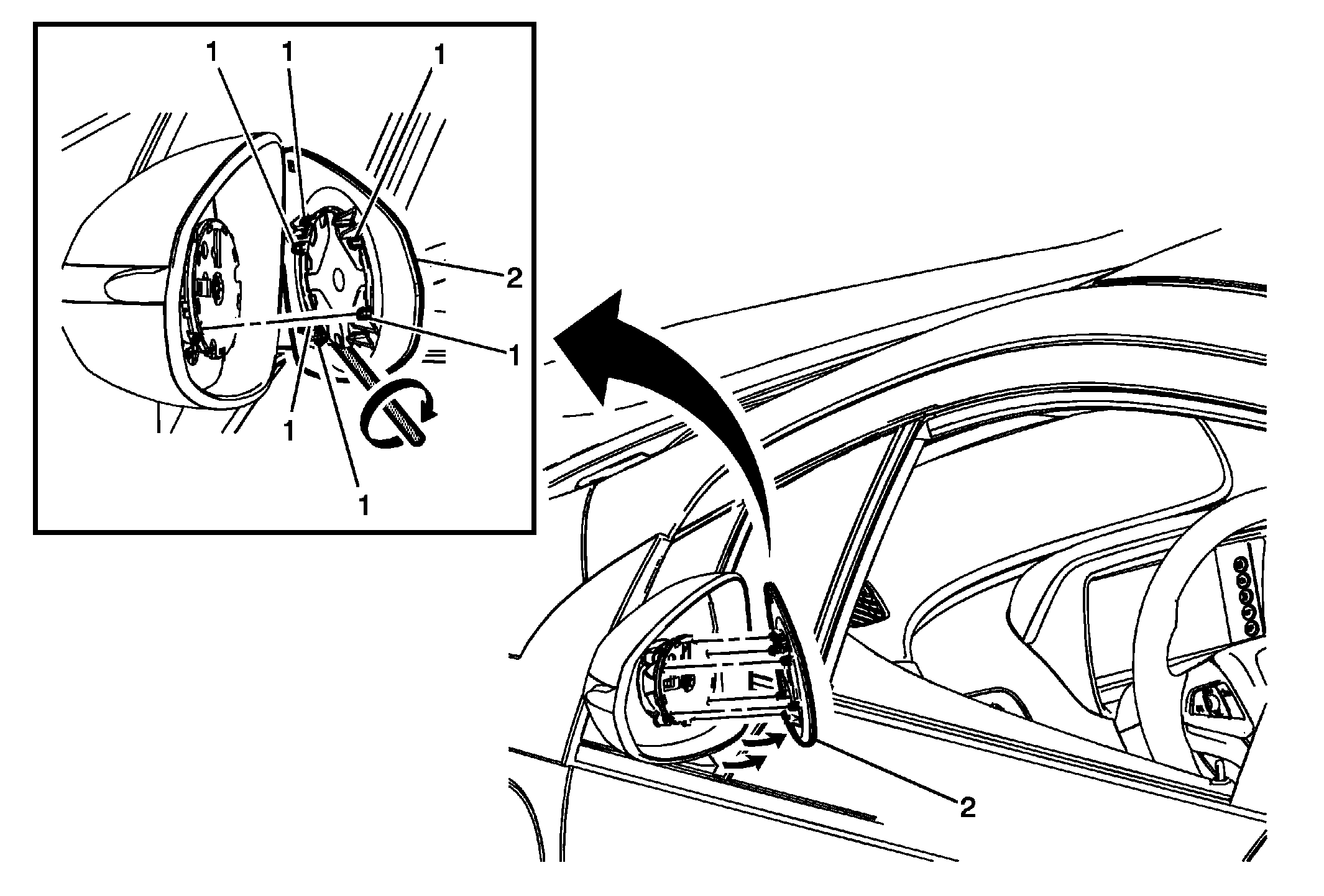

1. Apply several layers of masking tape to the bottom and inner edge of the outside rearview mirror housing in order to protect the painted finish.
2. DO Not use the tool (flat plastic) to pry with, it Must be used in a twisting motion counter clockwise only to release the mirror glass from the inner actuator.
3. Retain pressure on the top inner corner of the mirror glass (2).
4. Insert a suitable tool (flat plastic) between the two tabs (1) located behind the glass.
5. Twist the suitable tool (flat plastic) until the mirror glass releases from the inner actuator.
6. Disconnect electrical connectors from mirror glass.

Procedure

1. Align the mirror glass retaining tabs with the inner actuator.
2. Place your hand on the back of the mirror housing.
3. Using the flat part of your hand press inward on the mirror glass until the tabs are fully seated on the inner actuator retainers.
4. Inspect the outside rearview mirror for proper operation before installing the door trim.
