Inside Rearview Mirror Replacement

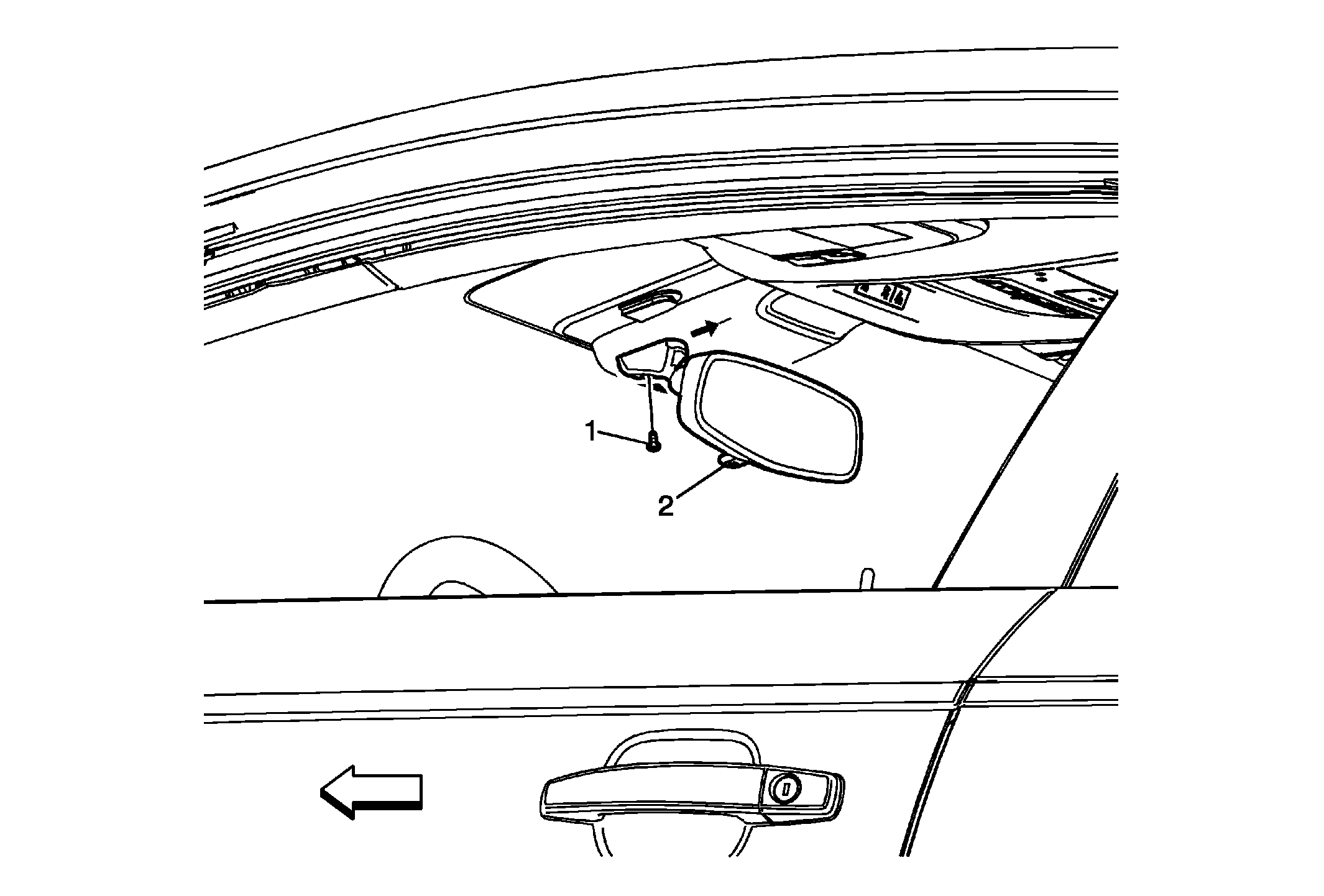

Fig 1: Inside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Inside Rearview Mirror Set Screw CAUTION: Refer to Fastener Caution . Procedure Adjust the mirror to the full upward position. Loosen the set screw located at the base of the mirror. Slide the mirror upward off of the rearview mirror button. Tighten 1.8 N.m (16 lb in)
2	Inside Rearview Mirror

Callout

Component Name

Inside Rearview Mirror Set Screw

CAUTION:

Procedure

Tighten
1.8 N.m (16 lb in)

Inside Rearview Mirror
