Front Side Door Inside Handle Cable Replacement

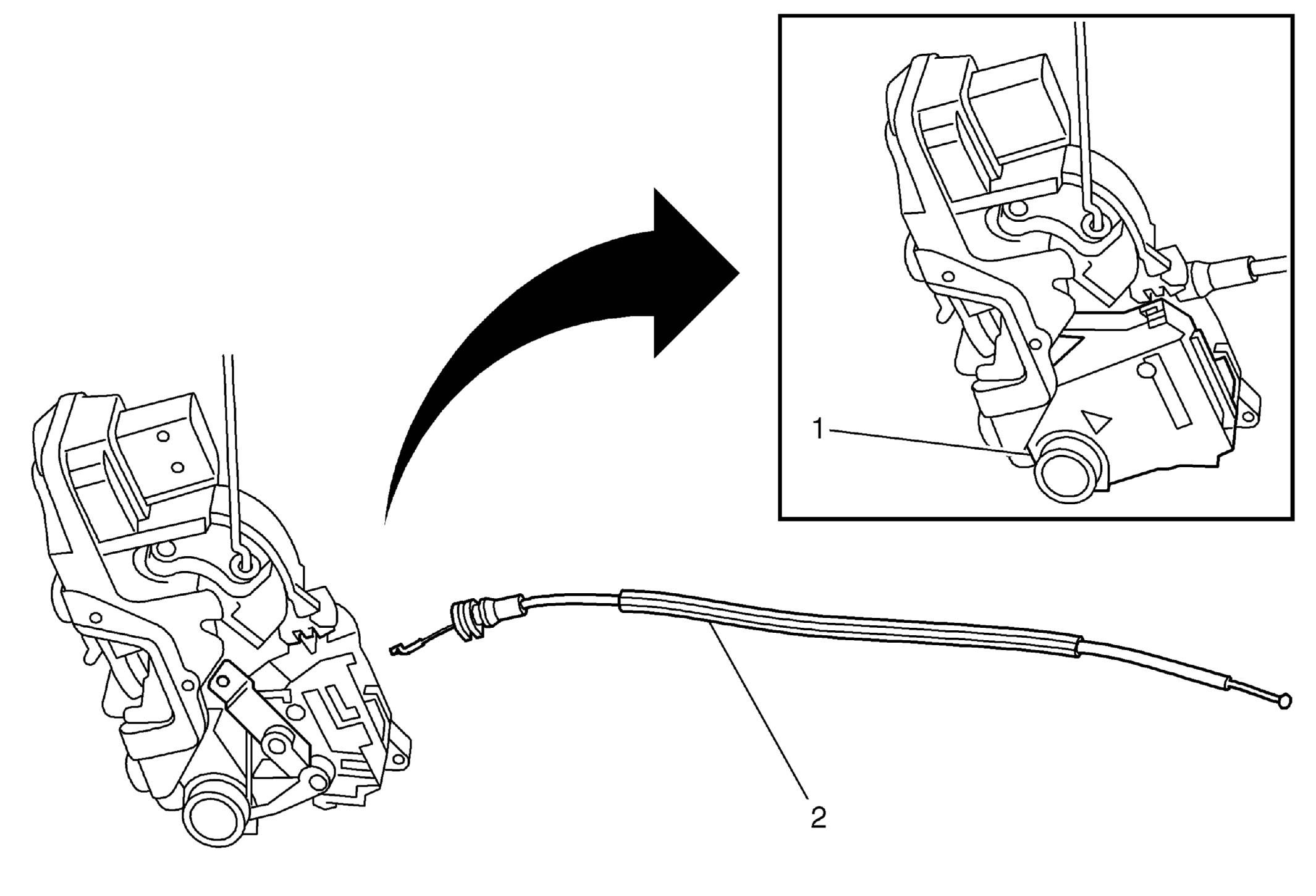

Fig 1: Rear Side Door Inside Handle Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door lock. Refer to Front Side Door Lock Replacement .
1	Front Side Door Inside Handle Lock Cable Cover Procedure Release the cable retainer from the inner door panel. Open the front side door inside handle cable cover to access and release cable end.
2	Front Side Door Inside Handle Cable Procedure Ensure that the lock cable cover is closed before installing the lock. TIP: Inspect the door lock system for proper operation before installing the door trim panel.

Callout

Component Name

Preliminary Procedure
Remove the front side door lock. Refer to Front Side Door Lock Replacement .

Front Side Door Inside Handle Lock Cable Cover

Procedure

Release the cable retainer from the inner door panel.
Open the front side door inside handle cable cover to access and release cable end.

Front Side Door Inside Handle Cable
Procedure
Ensure that the lock cable cover is closed before installing the lock.
TIP: Inspect the door lock system for proper operation before installing the door trim panel.
