Radio Antenna Base Replacement
Radio Antenna Base Replacement

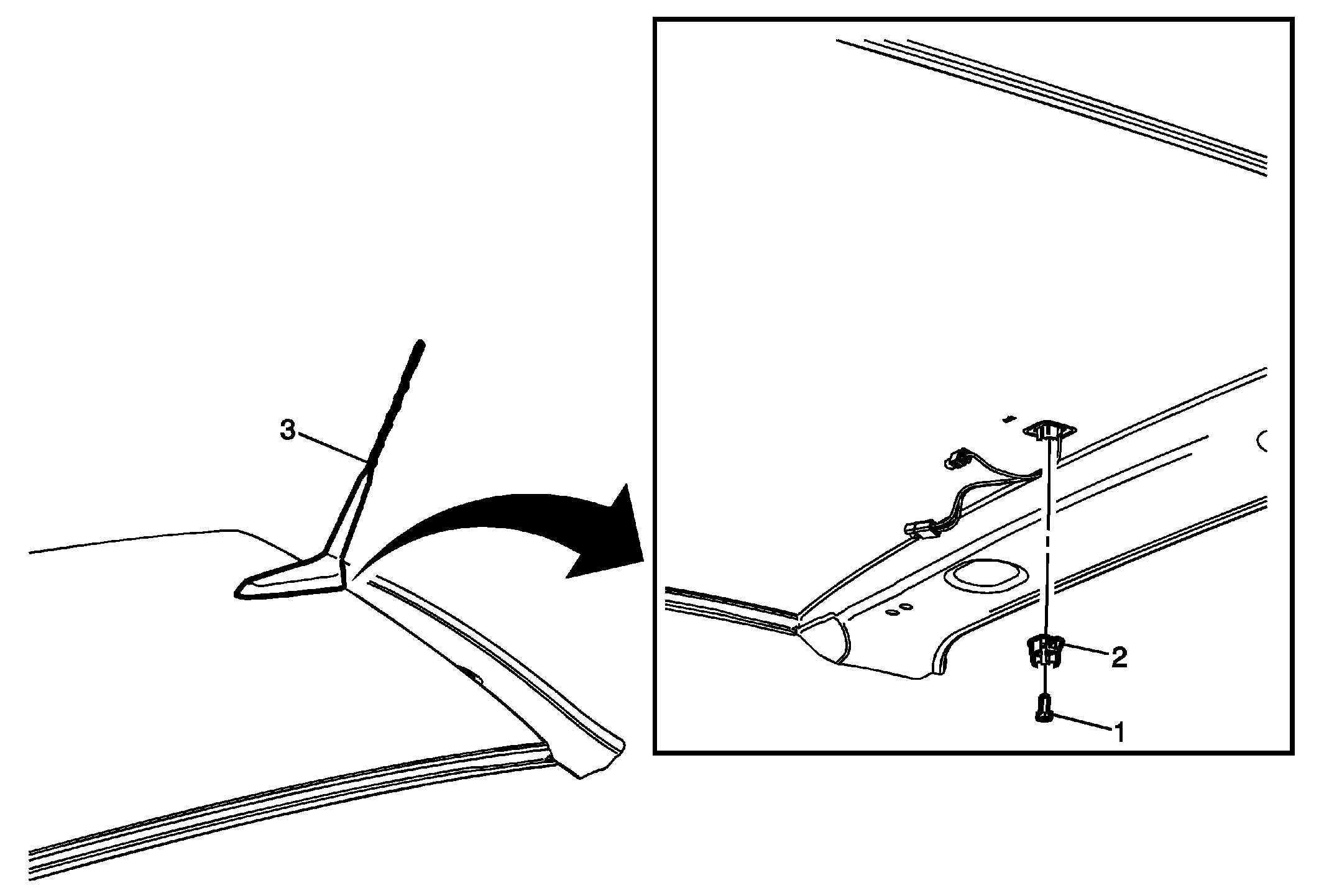

| Callout | Component Name |
|---|---|
| Preliminary Procedure Lower the rear of the headlining trim panel. Refer to Headlining Trim Panel Replacement . |
|
| 1 | Radio Antenna Base Fastener
CAUTION:
Refer to Fastener Caution . |
| 2 | Radio Antenna Base Retainer Procedure Use a new retainer. |
| 3 | Radio Antenna Base Assembly Procedure Disconnect the electrical connectors. |
