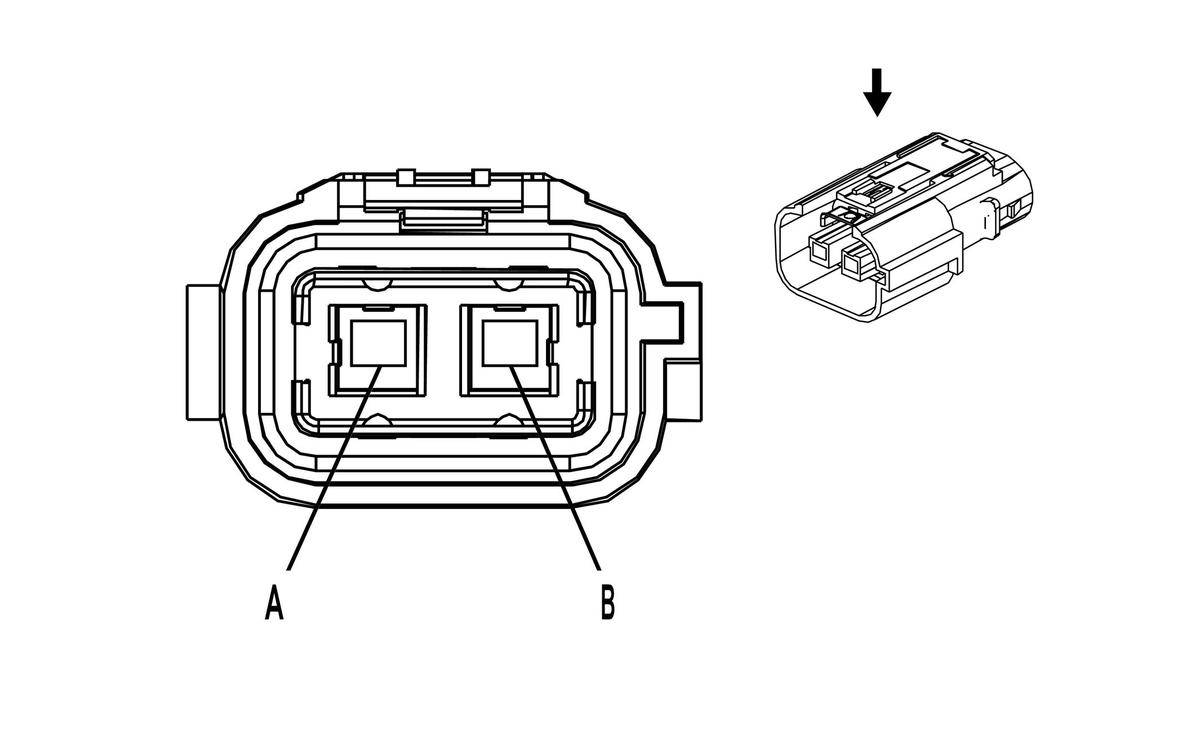

K10 Coolant Heater Control Module X2
Connector Part Information
- Harness Type: High Voltage
- OEM Connector: 13737728
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F (OG)
|
Terminal Part Information
- Terminated Lead: Service by Harness - See Part Catalog
- Release Tool: Service by Harness - See Part Catalog
- Diagnostic Test Probe: Service by Harness - See Part Catalog
- Terminal/Tray: Service by Harness - See Part Catalog
- Core/Insulation Crimp: Service by Harness - See Part Catalog
|
K10 Coolant Heater Control Module X2
| Pin |
Size |
Color |
Circuit |
Function |
Option |
| A |
- |
L-BU |
5084 |
High Voltage Battery (+) |
- |
| B |
- |
L-BU |
5083 |
High Voltage Battery (-) |
- |
