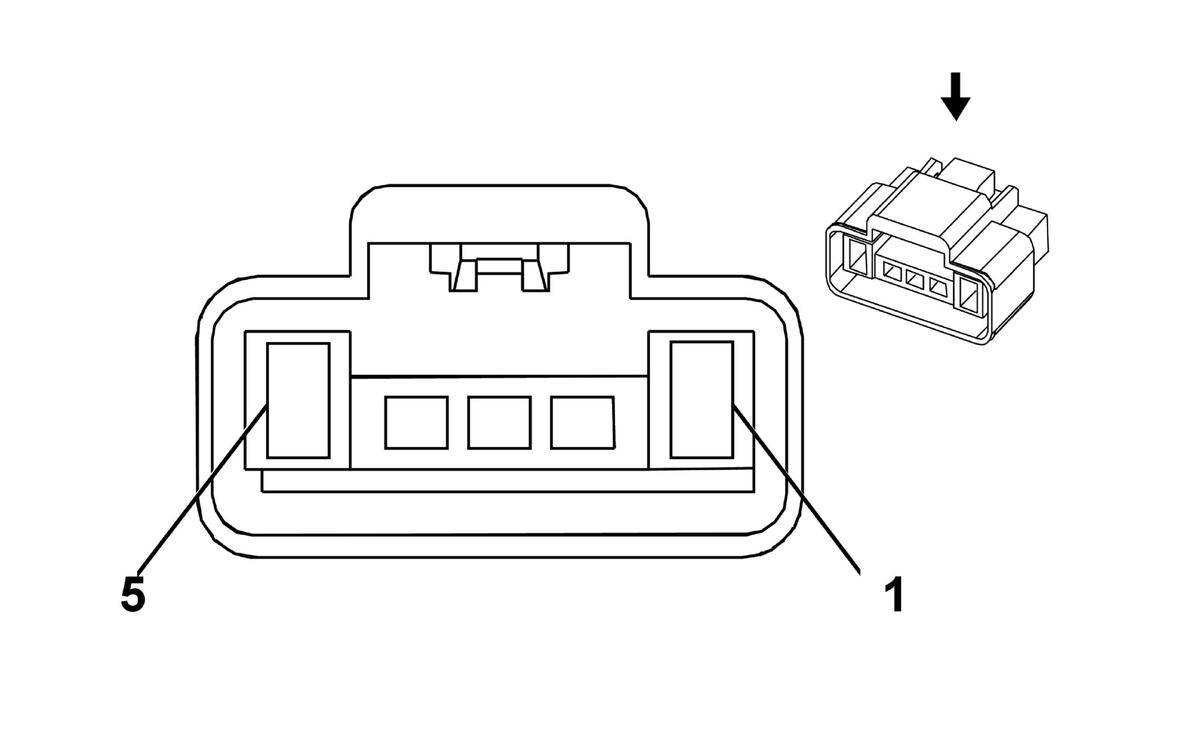

G38 14V Power Module Cooling Fan
Connector Part Information
- Harness Type: Body
- OEM Connector: 1599317
- Service Connector: 13577529
- Description: 5-Way F (BK)
|
Terminal Part Information
- Pins: 1, 5
- Terminated Lead: Service by Connector Assembly - 13577529
- Pins: 2-4
- Terminated Lead: 13575856
- Release Tool: Pending
- Diagnostic Test Probe: Pending
- Terminal/Tray: Pending
- Core/Insulation Crimp: Pending
|
G38 14V Power Module Cooling Fan
| Pin |
Size |
Color |
Circuit |
Function |
Option |
| 1 |
0.5 |
BK/BN |
850 |
Ground |
- |
| 2 |
0.5 |
BN/L-GN |
3793 |
Accessory Power Module Cooling Fan Feedback Signal |
- |
| 3 |
0.5 |
YE/GY |
3792 |
Accessory Power Module Cooling Fan Control |
- |
| 4 |
0.5 |
L-GN/VT |
3791 |
Accessory Power Module Cooling Fan Enable |
- |
| 5 |
0.5 |
RD/BN |
2240 |
Battery Positive Voltage |
- |
