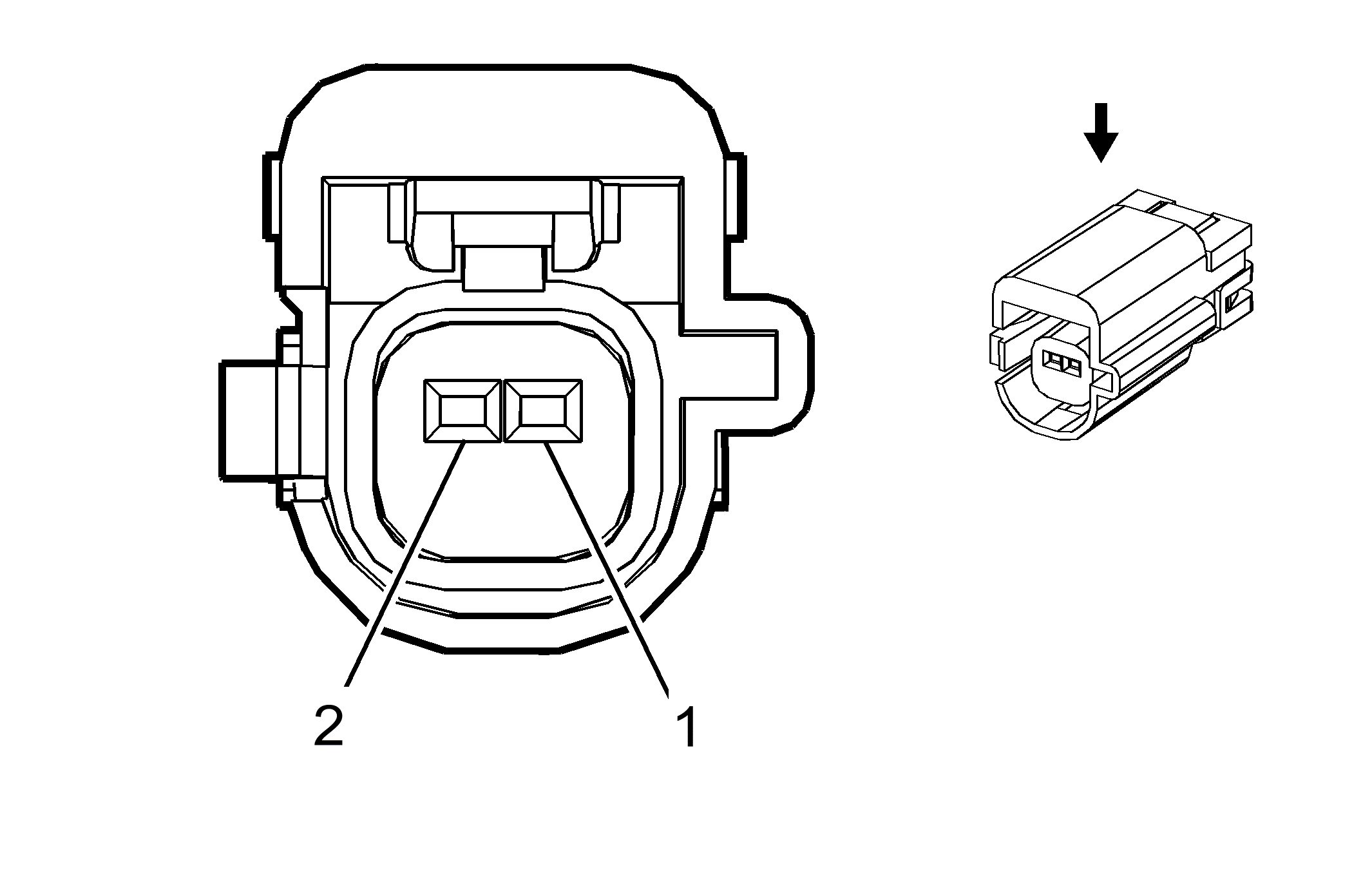

F117 14V Power Module Jumper Connector
Connector Part Information
- Harness Type: EVAP
- OEM Connector: 13738743
- Service Connector: 13577520
- Description: 2-Way F (BK)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly - 13577520
- Release Tool: Pending
- Diagnostic Test Probe: Pending
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
F117 14V Power Module Jumper Connector
| Pin |
Size |
Color |
Circuit |
Function |
Option |
| 1 |
0.5 |
VT |
5087 |
High Voltage Interlock Loop Signal (1) |
- |
| 2 |
0.5 |
VT |
5087 |
High Voltage Interlock Loop Signal (1) |
- |
