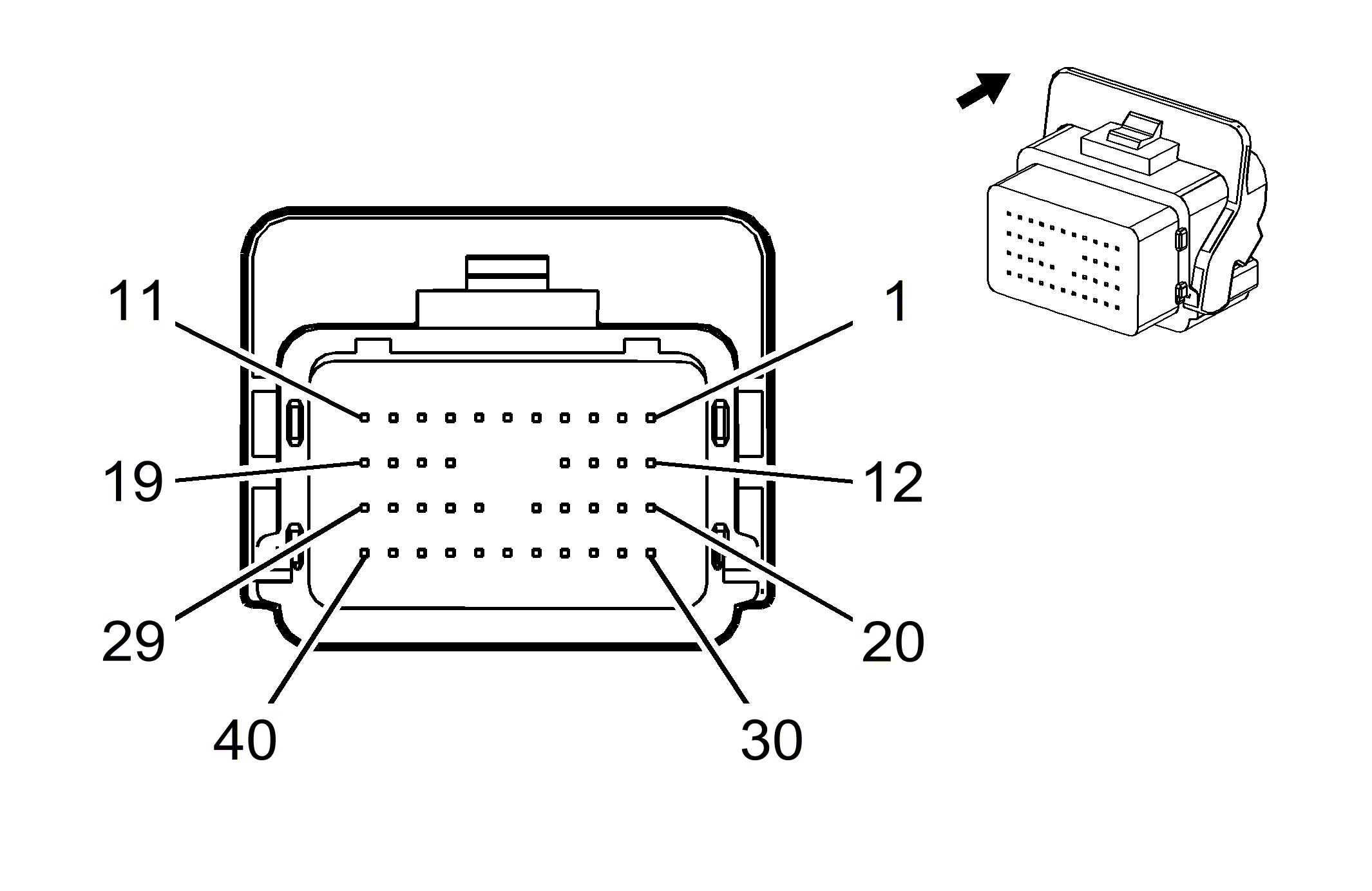

T6 Power Inverter Module Assembly X1

Connector Part Information

Harness Type: Engine
OEM Connector: HPSPB-40C31-BH
Service Connector: 13577546
Description: 40-Way F 0.64 Series, Sealed (GY)

Terminal Part Information

Pins: 1-3, 12-14, 33-36
Terminated Lead: 13505805
Release Tool: J-38125-215A
Diagnostic Test Probe: J-35616-64B (L-BU)
Terminal/Tray: Pending
Core/Insulation Crimp: Pending

Pins: 4-11, 15-22, 24, 25, 30-32
Terminated Lead: 13575865
Release Tool: J-38125-215A
Diagnostic Test Probe: J-35616-64B (L-BU)
Terminal/Tray: SAIT-A03T-M064/14
Core/Insulation Crimp: P/P

T6 Power Inverter Module Assembly X1

Pin	Size	Color	Circuit	Function	Option
1	0.75	GY	3487	Traction Power Inverter Module Resolver #2 S3 Signal	-
2	0.75	L-GN	3491	Traction Power Inverter Module Resolver #2 S2 Signal	-
3	0.75	L-BU	3486	Traction Power Inverter Module Resolver #2 Excitation Signal Positive	-
4	0.5	WH	6106	High Speed GMLAN Serial Data (-) (2)	-
5	0.5	WH	6106	High Speed GMLAN Serial Data (-) (2)	-
6	0.5	WH	6106	High Speed GMLAN Serial Data (-) (2)	-
7	0.5	L-BU/YE	6105	High Speed GMLAN Serial Data (+) (2)	-
8	0.5	WH	7494	High Speed GMLAN Serial Data (-) (3)	-
9	0.5	L-BU/BK	7493	High Speed GMLAN Serial Data (+) (3)	-
10	0.5	WH	2501	High Speed GMLAN Serial Data (-) (1)	-
11	0.5	L-BU	2500	High Speed GMLAN Serial Data (+) (1)	-
12	0.75	L-BU/YE	3488	Traction Power Inverter Module Resolver #2 S1 Signal	-
13	0.75	BN/YE	3492	Traction Power Inverter Module Resolver #2 S4 Signal	-
14	0.75	WH/L-GN	3485	Transmission Traction Power Inverter Module Resolver #2 Excitation Signal Negitive	-
15	0.5	L-BU/YE	6105	High Speed GMLAN Serial Data (+) (2)	-
16	0.5	WH	7494	High Speed GMLAN Serial Data (-) (3)	-
17	0.5	L-BU/BK	7493	High Speed GMLAN Serial Data (+) (3)	-
18	0.5	WH	2501	High Speed GMLAN Serial Data (-) (1)	-
19	0.5	L-BU	2500	High Speed GMLAN Serial Data (+) (1)	-
20	0.5	BN	7652	Traction Power Inverter Module Resolver #1 S3 Signal	-
21	0.5	VT/L-GN	7647	Transmission Traction Power Inverter Module Resolver #1 S2 Signal	-
22	0.5	L-BU	7645	Traction Power Inverter Module Resolver #1 Excitation Signal Positive	-
23	-	-	-	Not Used	-
24	0.5	RD/VT	1940	Battery Positive Voltage	-
25	0.5	L-BU/YE	6105	High Speed GMLAN Serial Data (+) (2)	-
26-29	-	-	-	Not Used	-
30	0.5	YE	7649	Traction Power Inverter Module Resolver #1 S1 Signal	-
31	0.5	GY	7646	Transmission Traction Power Inverter Module Resolver #1 S4 Signal	-
32	0.5	WH/L-GN	7648	Traction Power Inverter Module Traction Power Inverter Module Resolver #1 Excitation Signal Negative	-
33	0.75	BN/WH	3489	Traction Power Inverter Module Motor #2 Temp Signal	-
34	0.75	BN	3490	Traction Power Inverter Module Motor #2 Temp Sensor Return	-
35	0.75	WH/L-BU	7653	Traction Power Inverter Motor #1 Temperature Sensor Signal	-
36	0.75	L-GN	7654	Traction Power Inverter Motor #1 Temperature Sensor Return	-
37-40	-	-	-	Not Used	-
