Left Front of Vehicle Components

Left Front of Vehicle Components

Component Name Callout
B197 Charge Port Door Position Switch 1
X98 Hybrid Battery Charger Receptacle 2
M80 Charge Port Door Actuator 3

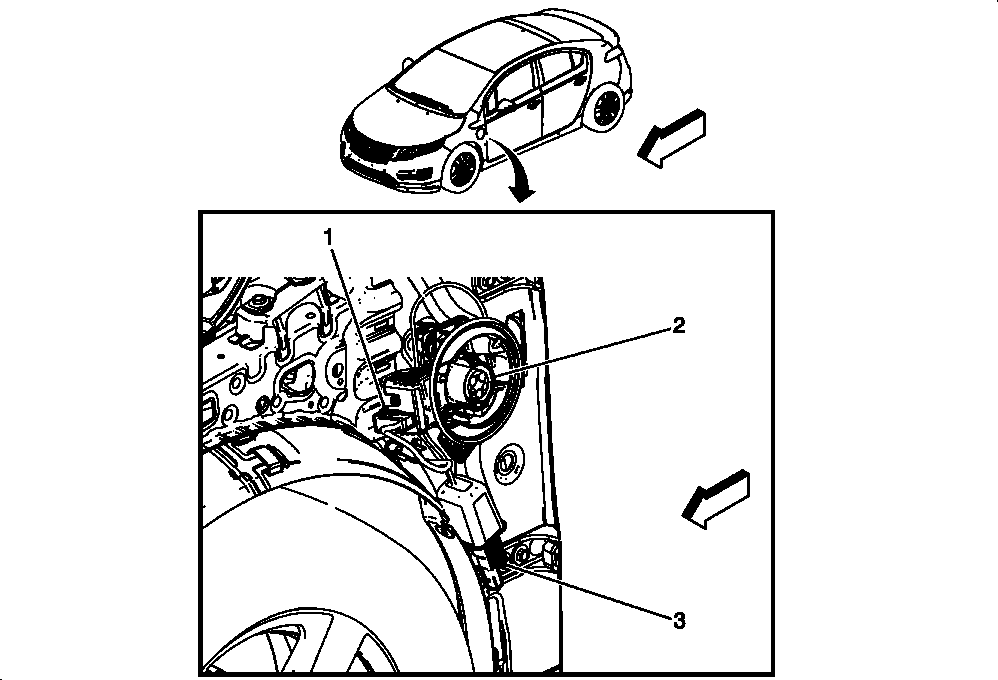

Fig 1: Locating Left Front of Vehicle Components
GM2477067Courtesy of GENERAL MOTORS COMPANY
