Control Valve Body Cover Installation
Control Valve Body Cover Installation

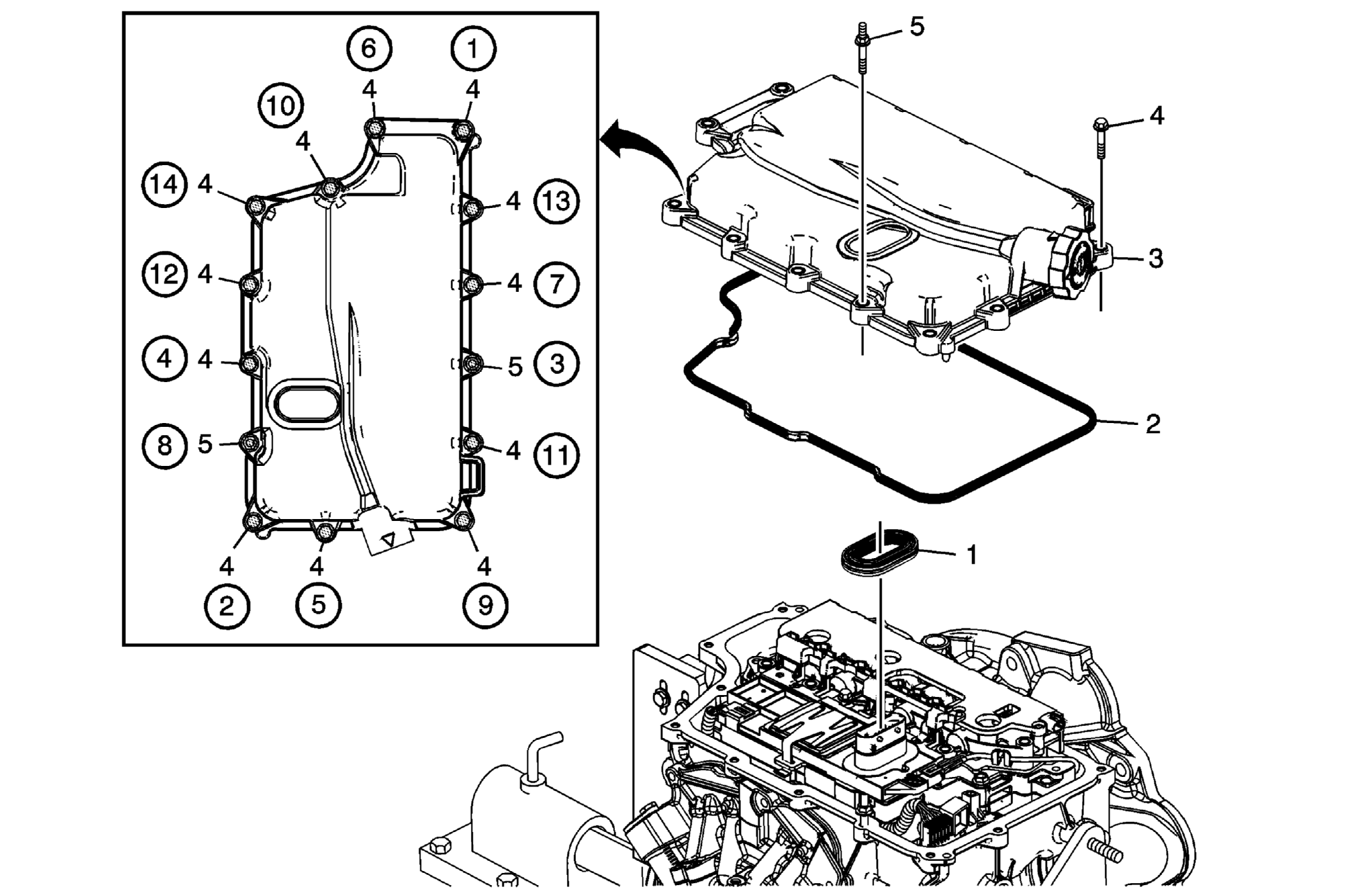

| Callout | Component Name |
|---|---|
| 1 | Control Valve Body Cover Wiring Connector Hole Seal TIP: Holes in the seal must face down. |
| 2 | Control Valve Body Cover Assembly Gasket |
| 3 | Control Valve Body Cover Assembly |
| 4 | Control Valve Body Cover Bolt M6 x 30 (Qty: 12)
CAUTION:
Refer to Fastener Caution . Procedure Tighten in sequence. Tighten 12 N.m (9 lb ft). |
| 5 | Control Valve Body Cover Stud M6 x 30 (Qty: 2) Procedure Tighten in sequence. Tighten 12 N.m (9 lb ft). |
