Rear Seat Center Retractor Side Belt Replacement

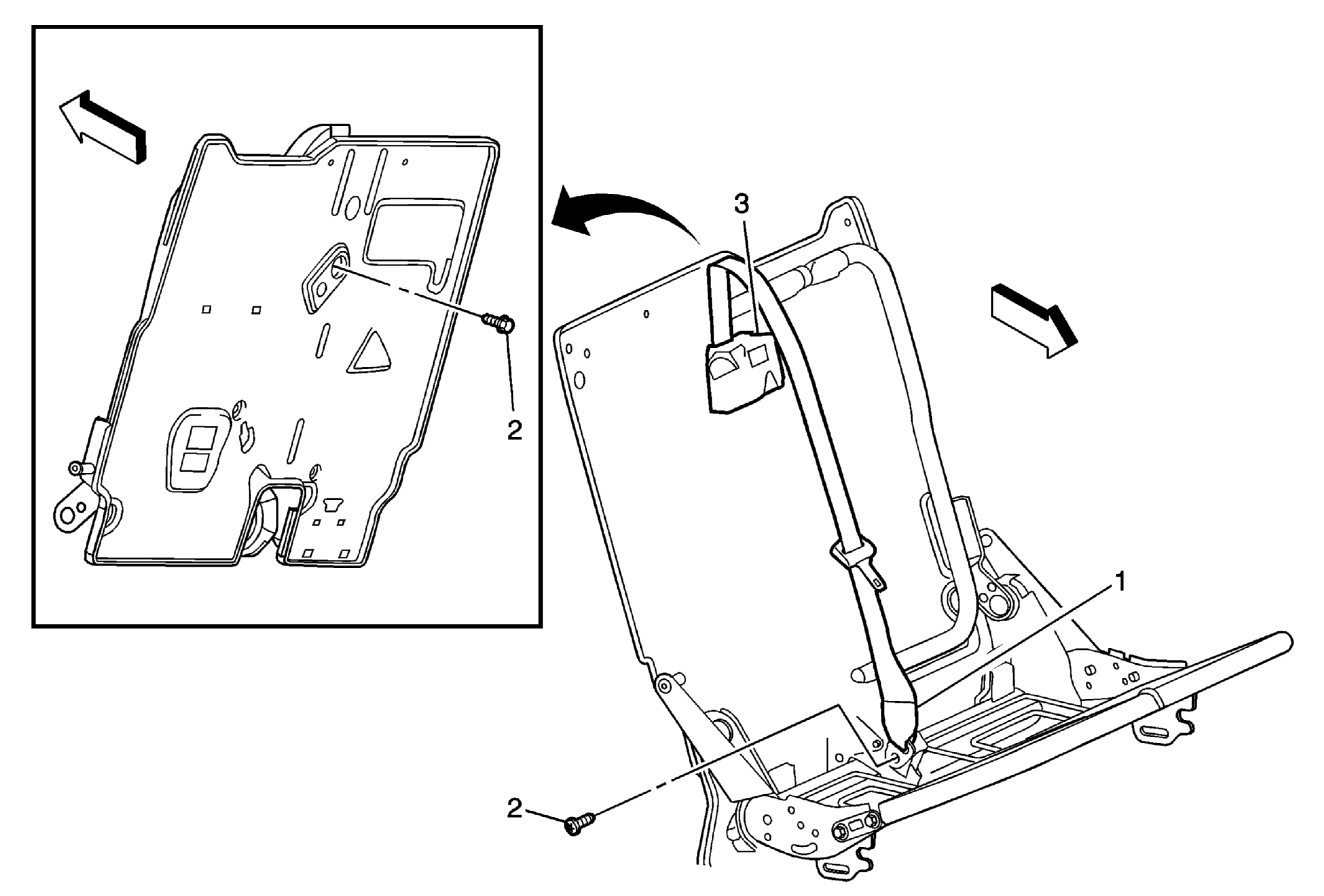

Fig 1: Identifying Seat Belt Retractor - Rear Center

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove rear seat. Refer to Rear Seat Replacement (With 40 Percent Seat) , Rear Seat Replacement (With 60 Percent Seat) . Remove seat back pad and cover. Refer to Rear Seat Cushion Cover and Pad Replacement (with 40 Percent Seat) , Rear Seat Cushion Cover and Pad Replacement (with 60 Percent Seat) .
1	Rear Seat Center Belt Retractor Assembly TIP: Tilt 40 percent split forward for access.
2	Rear Seat Center Belt Retractor Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 52 N.m (38 lb ft)
3	Rear Seat Center Belt Assembly
