Front Center of the Engine Compartment

Front Center of the Engine Compartment

Component Name Callout
Engine Cooling Fan- Left 1
Engine Cooling Fan- Right 2
Horn- High Note 3
Windshield Washer Fluid Pump 4
Rear Window Washer Fluid Pump 5
Windshield Washer Fluid Level Switch 6
Horn- Low Note 7

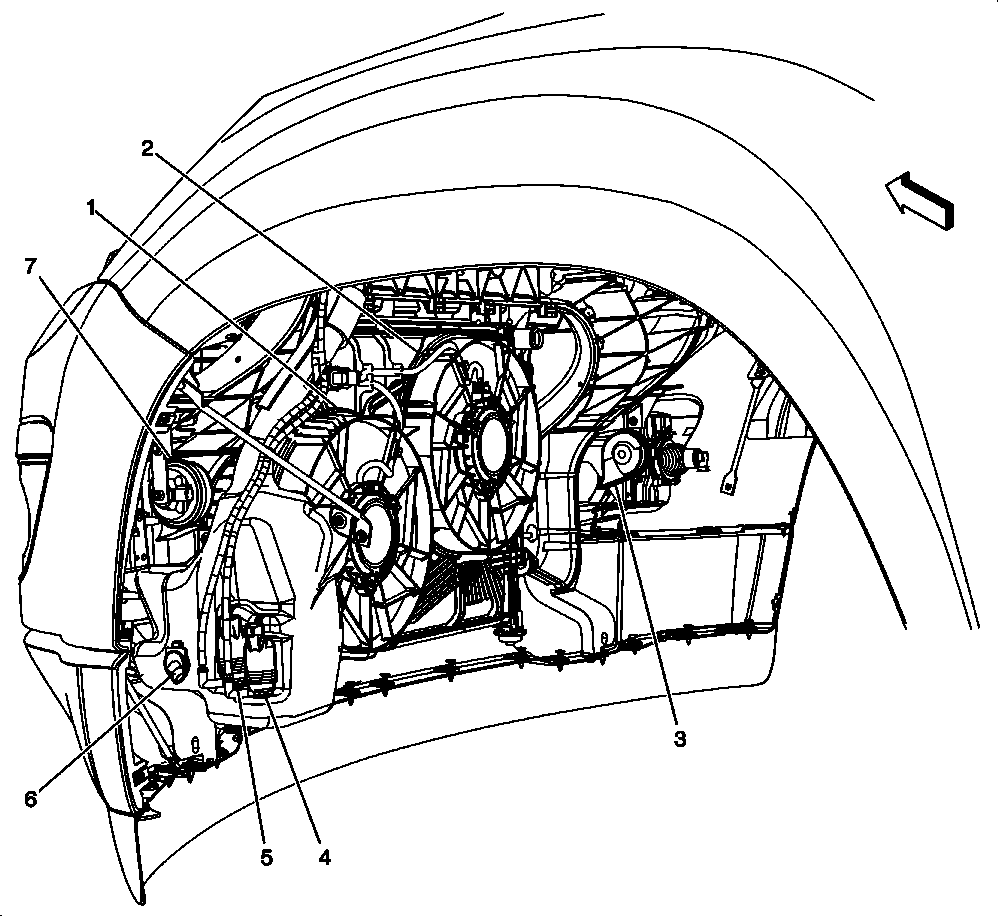

Fig 1: Front Center Of Engine Compartment
GM2358089Courtesy of GENERAL MOTORS COMPANY
