Windshield Outside Moisture Sensor Replacement
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

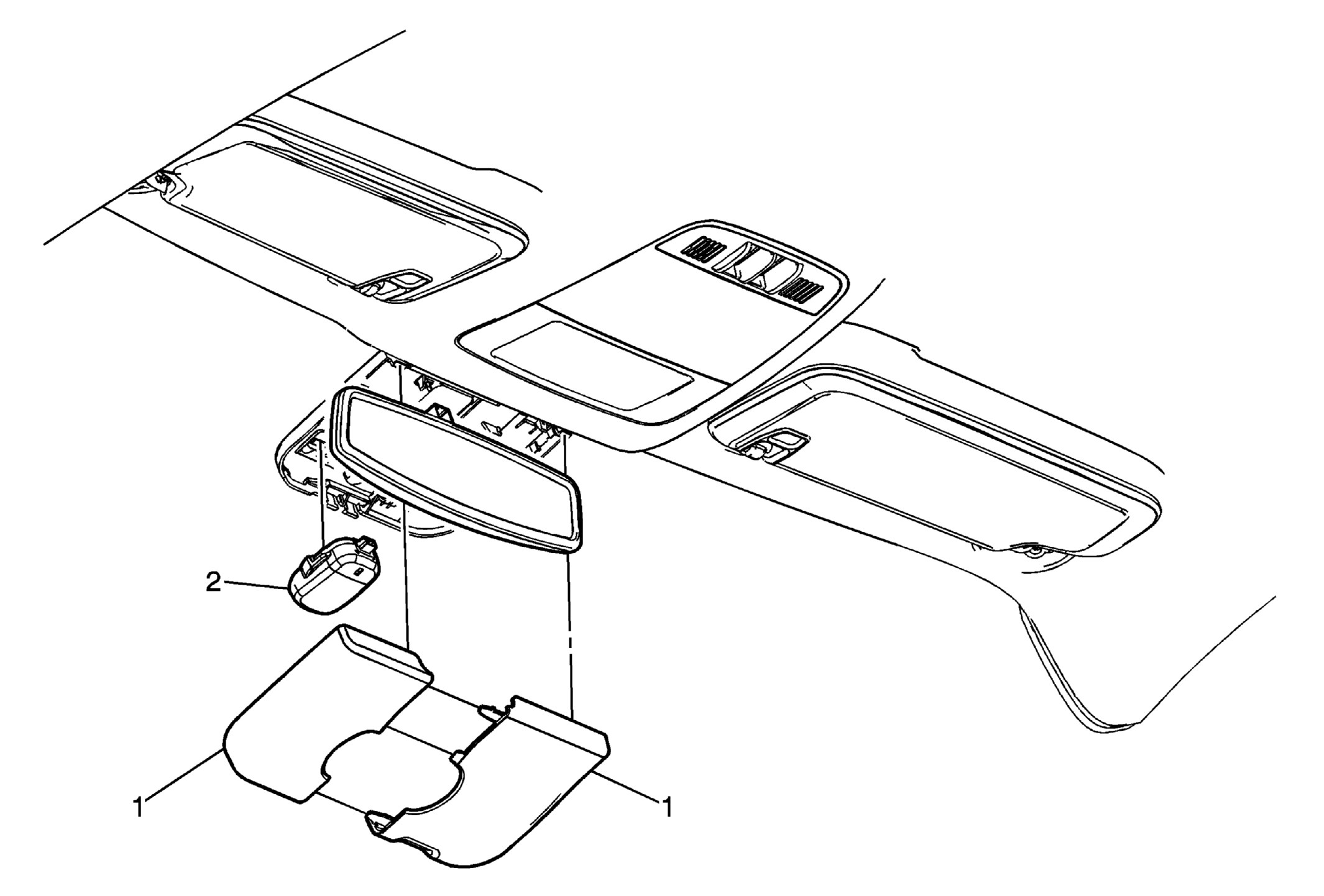

| Callout |
Component Name |
| 1 |
Inside Rear View Mirror Mounting Plate Cover Procedure
- Unsnap the mounting plate cover from the windshield outside moisture sensor bracket.
- Remove the right side from the left side in order to clear the inside rear view mirror.
|
| 2 |
Windshield Outside Moisture Sensor Assembly Procedure
- Squeeze the outside moisture sensor tabs in order to disengage the windshield outside moisture sensor from the outside moisture sensor bracket tabs.
- Disengage the electrical connector from the moisture sensor.
- Remove the windshield outside moisture sensor from the outside moisture sensor bracket.
|
