Driver Seat Adjuster Memory Switch Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

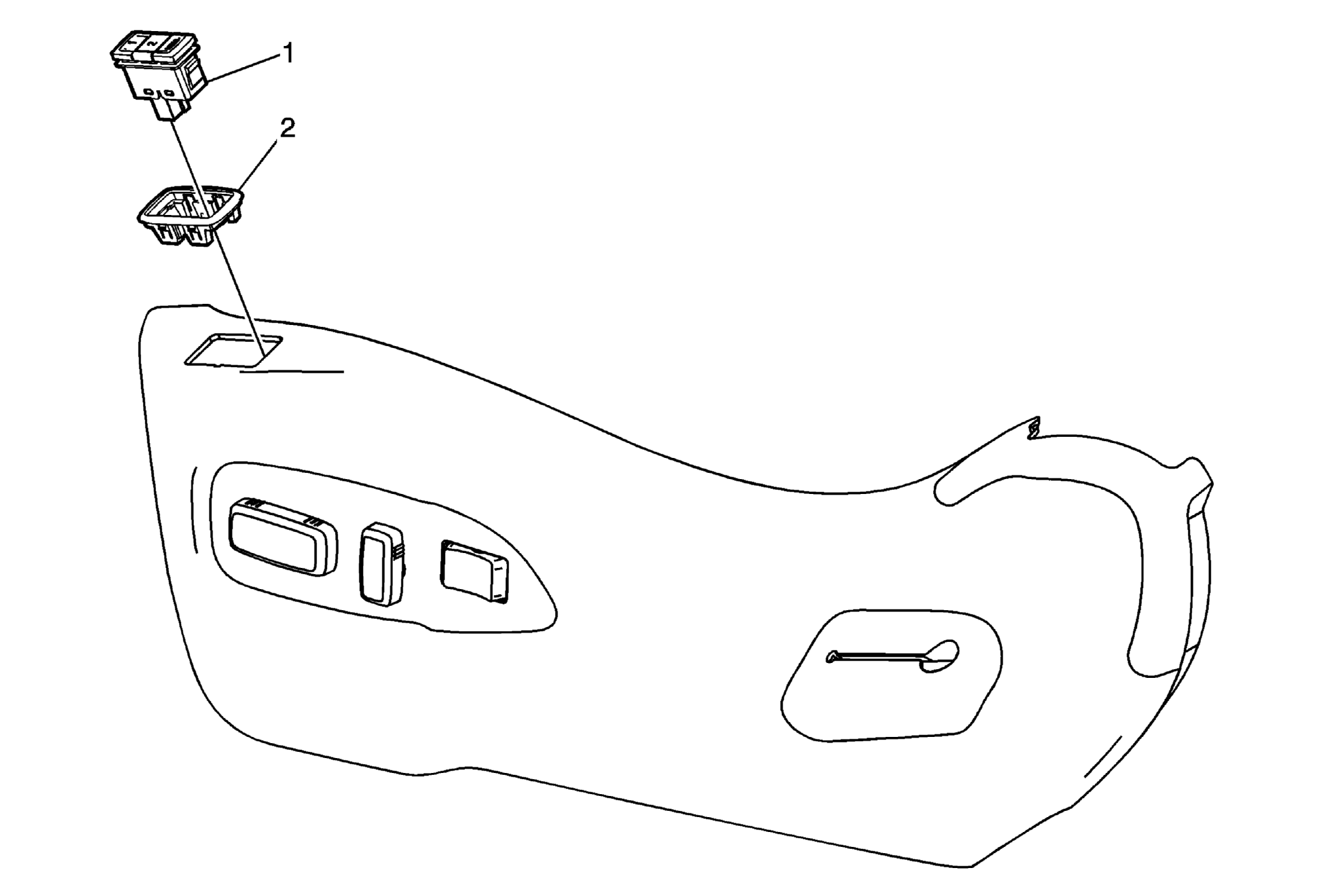

Fig 1: Identifying Driver Seat Adjuster Memory Switch
GM2221161Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the driver or passenger seat outer adjuster finish cover. Refer to Driver or Passenger Seat Outer Adjuster Finish Cover Replacement .
1 Driver Seat Adjuster Memory Switch
Procedure:
Pull up gently on the memory switch to disengage it from the bezel.
2 Driver Seat Adjuster Memory Switch Bezel
Procedure:
Use a flat-bladed tool to release the bezel from the outer recliner cover.
