Mode Control Cam Actuator Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

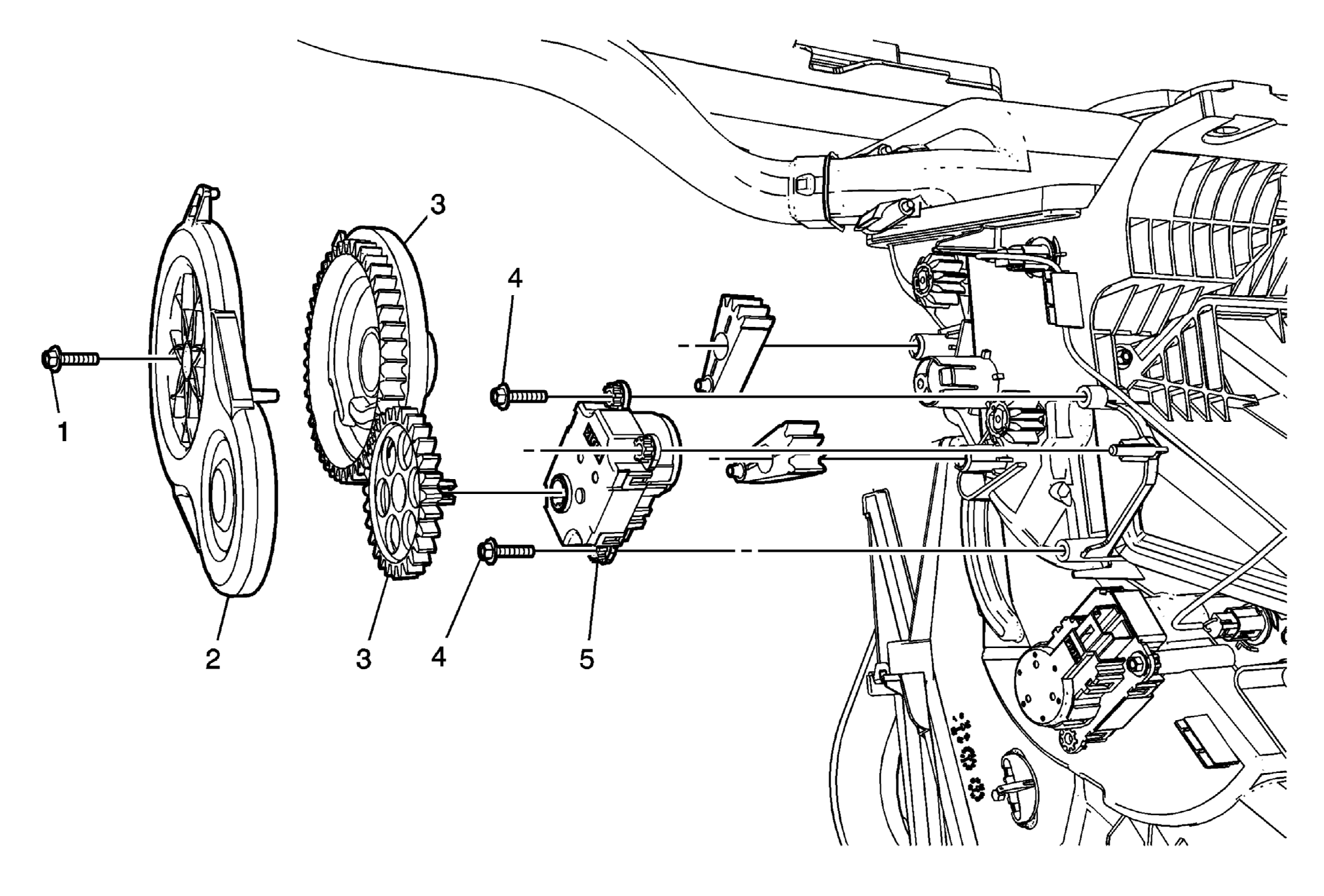

Fig 1: Identifying Mode Control Cam Actuator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the heater and air conditioning evaporator module. Refer to Floor Air Outlet Duct Replacement - Left Side .
1	Mode Cam Actuator Cover Screw (Qty: 1) CAUTION: Refer to Fastener Caution . Procedure: Disconnect the mode actuator electrical connector. Tighten: 1.5 N.m (13 lb in)
2	Mode Cam Actuator Cover.
3	Mode Cam Actuator Gears
4	Mode Cam Actuator Screw (Qty: 2) Tighten: 1.5 N.m (13 lb in)
5	Mode Cam Actuator Tip: Actuator is self-calibrating when connecting the battery.
