Liftgate Courtesy Lamp Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

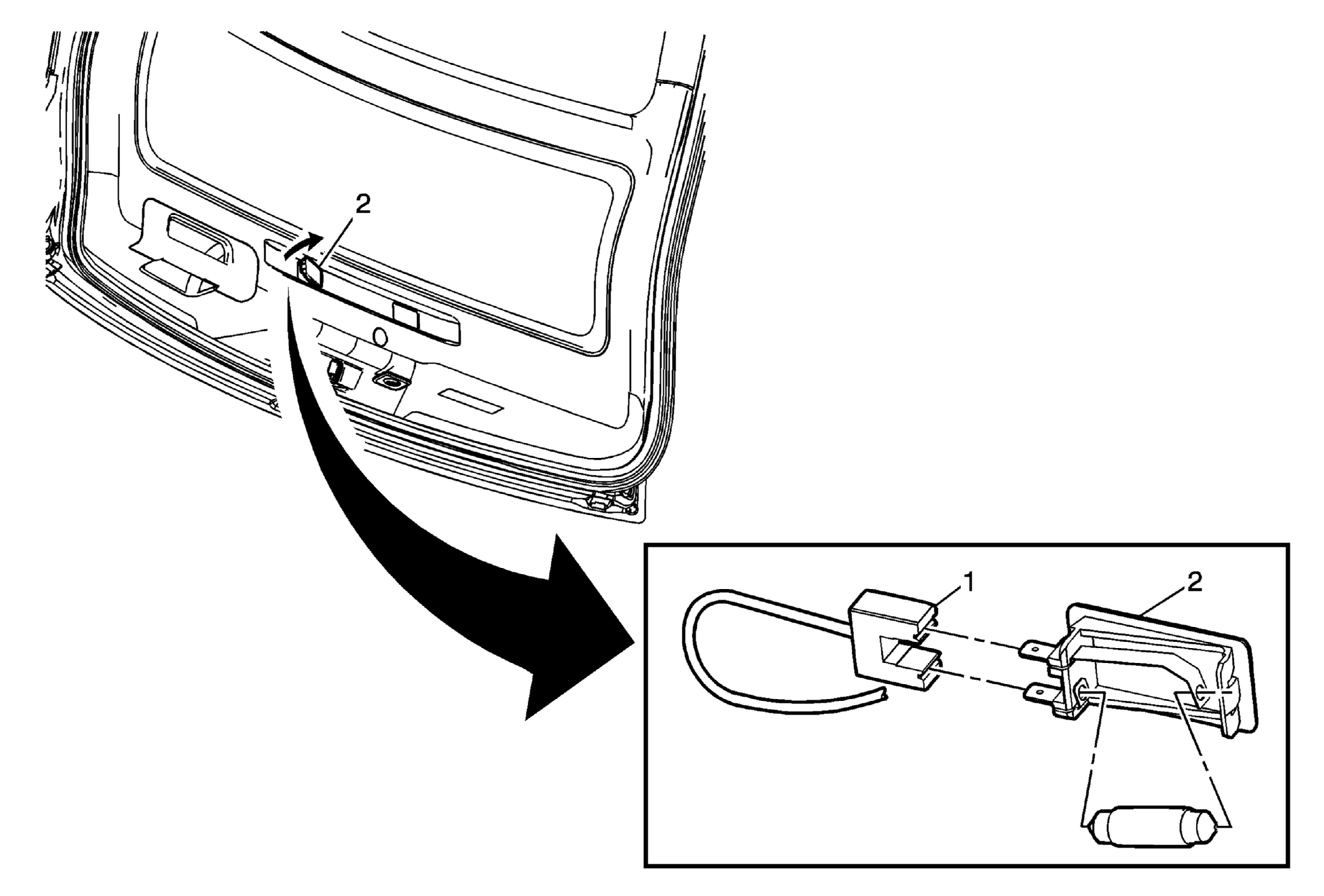

Fig 1: Liftgate Courtesy Lamp
GM1855770Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Liftgate Jumper Wiring Harness Assembly
2 Liftgate Courtesy Lamp Assembly

Procedure

  1. Carefully use a plastic flat-bladed tool, and release the tab retaining the lamp lens to the Liftgate assembly.
  2. Disconnect the electrical connection.
