Stabilizer Shaft Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

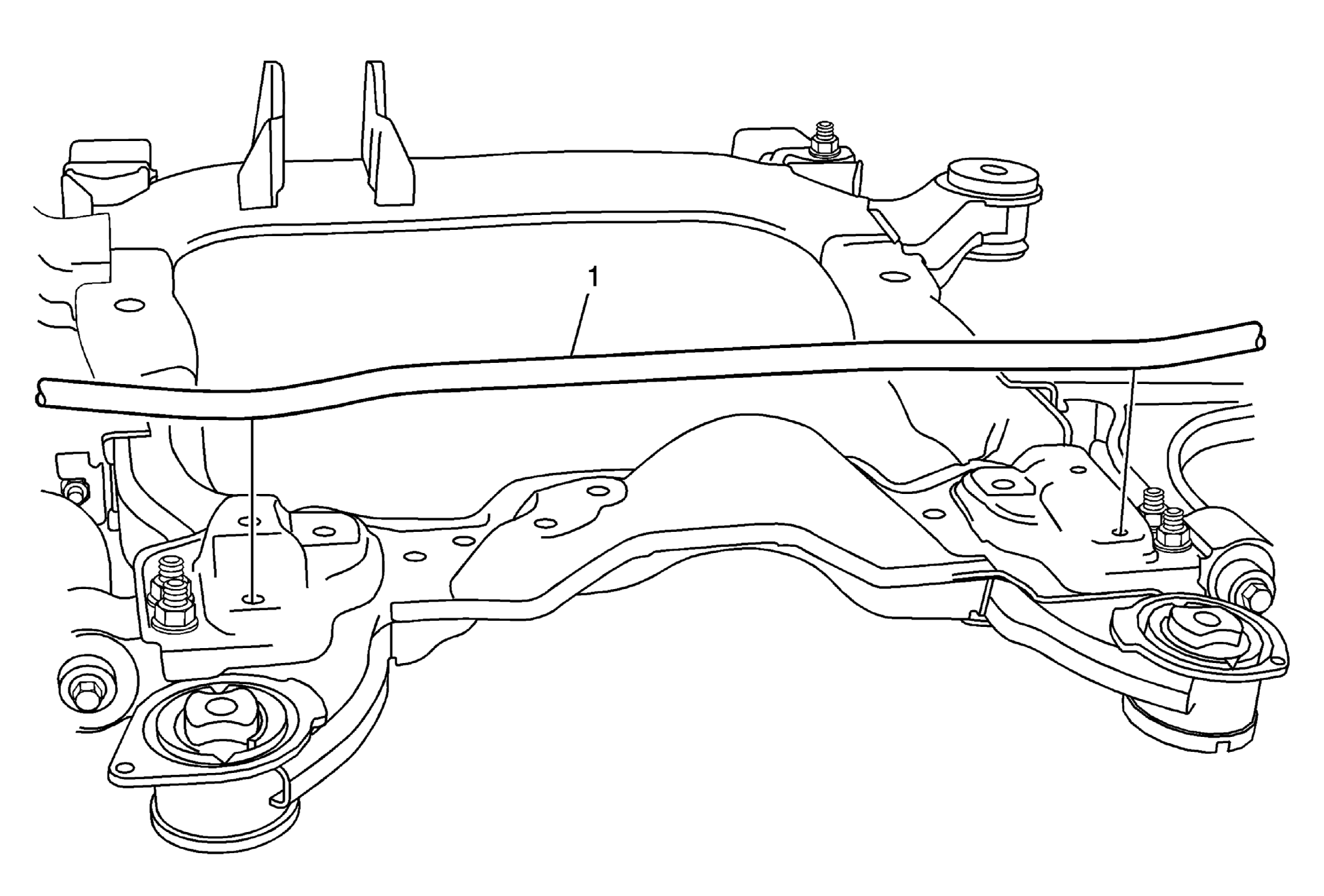

Fig 1: Identifying Stabilizer Shaft

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tires and wheels. Refer to Tire and Wheel Removal and Installation . Remove the stabilizer links from the front cradle. Refer to Stabilizer Shaft Link Replacement . Remove the stabilizer shaft insulator. Refer to Stabilizer Shaft Insulator Replacement
1	Front Stabilizer Shaft Tip: It maybe necessary to maneuver the stabilizer shaft in such away as to remove it from the vehicle.

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tires and wheels. Refer to Tire and Wheel Removal and Installation .
Remove the stabilizer links from the front cradle. Refer to Stabilizer Shaft Link Replacement .
Remove the stabilizer shaft insulator. Refer to Stabilizer Shaft Insulator Replacement

Front Stabilizer Shaft
Tip: It maybe necessary to maneuver the stabilizer shaft in such away as to remove it from the vehicle.
