Water Outlet Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

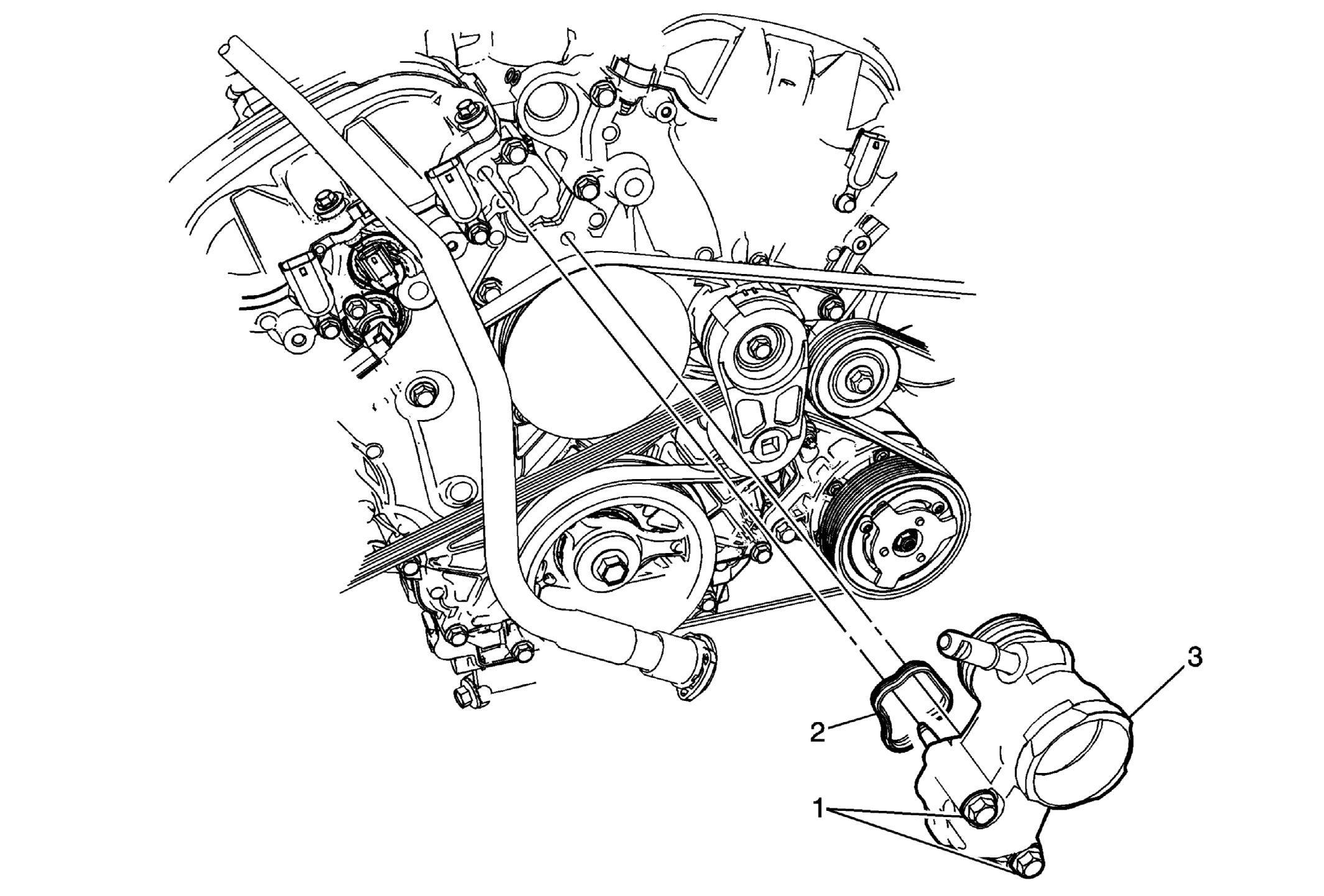

Fig 1: Water Outlet, Seal & Bolts (V6)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) Cooling System Draining and Filling (Static Fill) . Remove the right engine mount bracket. Refer to Engine Mount Replacement - Right Side . Remove the radiator inlet hose from the water outlet. Refer to Radiator Inlet Hose Replacement (LFX) . Remove the engine coolant air bleed pipe from the water outlet. Refer to Engine Coolant Air Bleed Pipe Replacement (LFX) .
1	Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (88 lb in)
2	Water Outlet
3	Seal NOTE: Clean the surfaces and replace the seal.
