Radiator Drain Cock Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

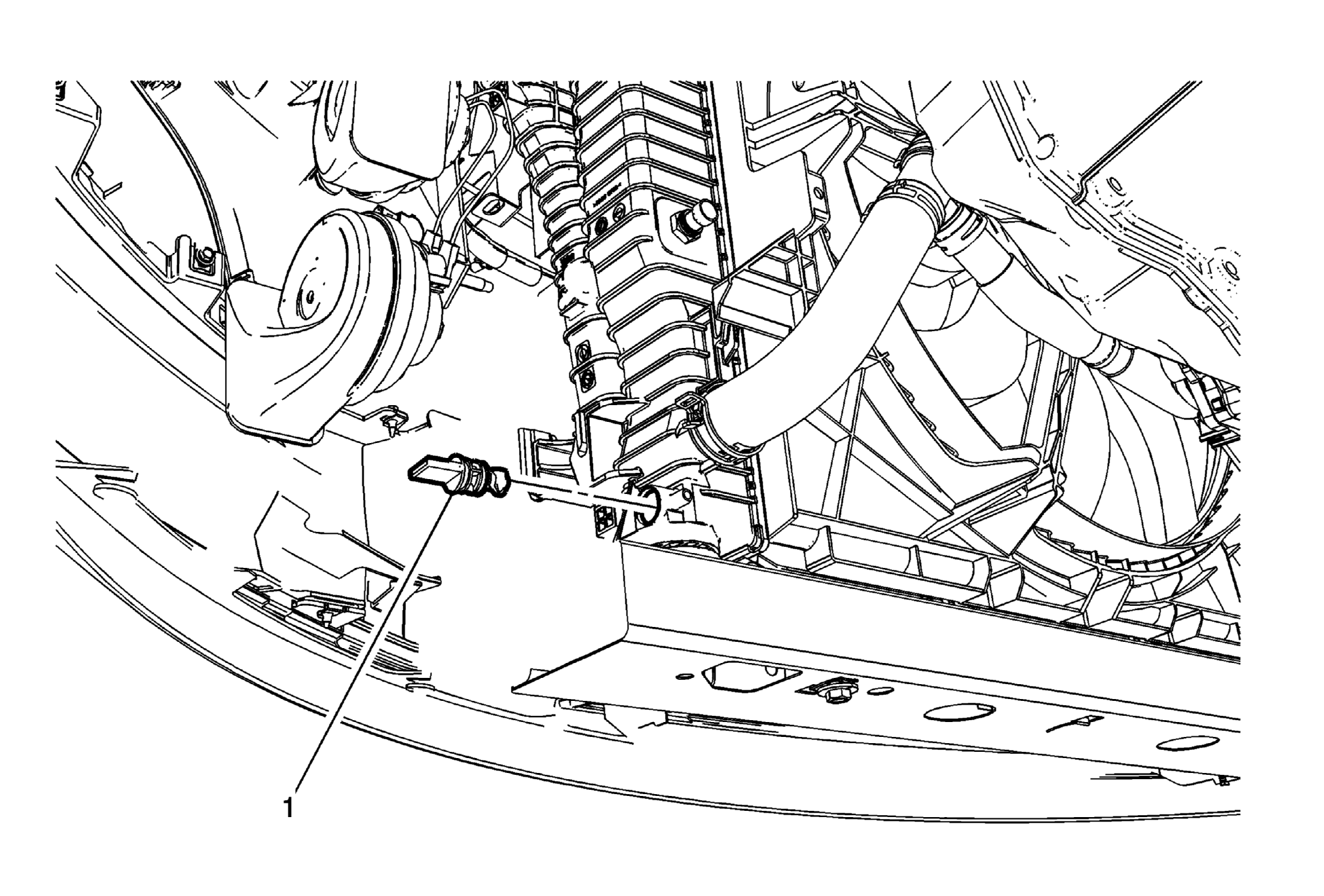

Fig 1: Radiator Drain Cock

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Remove the radiator air lower deflector. Refer to Radiator Air Lower Deflector Replacement Place a drain pan under the left side lower radiator mount.
1	Radiator Drain Cock

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
Remove the radiator air lower deflector. Refer to Radiator Air Lower Deflector Replacement
Place a drain pan under the left side lower radiator mount.

Radiator Drain Cock
