Engine Coolant Fan Replacement
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

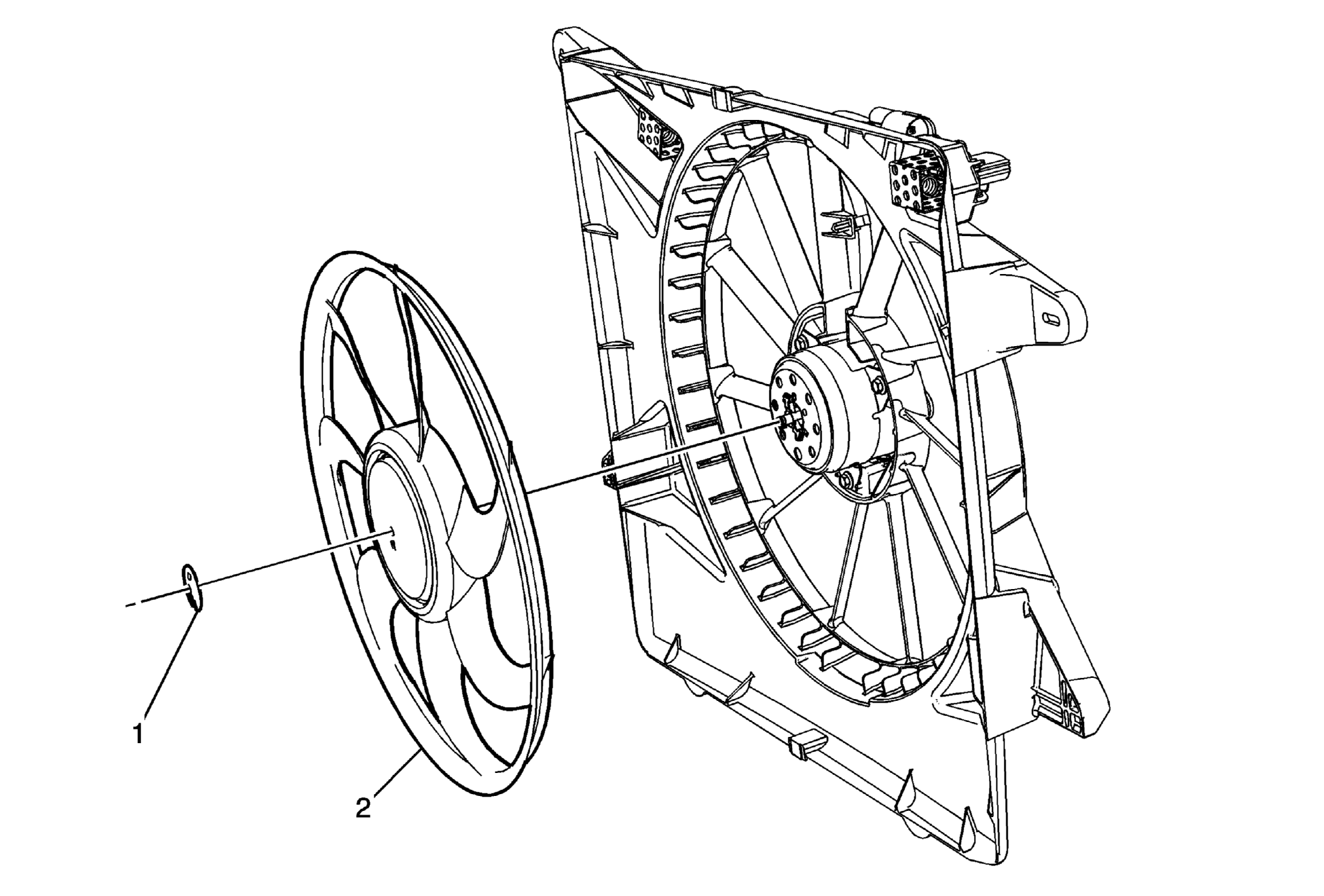

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the cooling fan shroud. Refer to Cooling Fan and Shroud Replacement |
|
| 1 | Cooling Fan Retainer |
| 2 | Cooling Fan |
