Windshield Wiper Blade Replacement
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

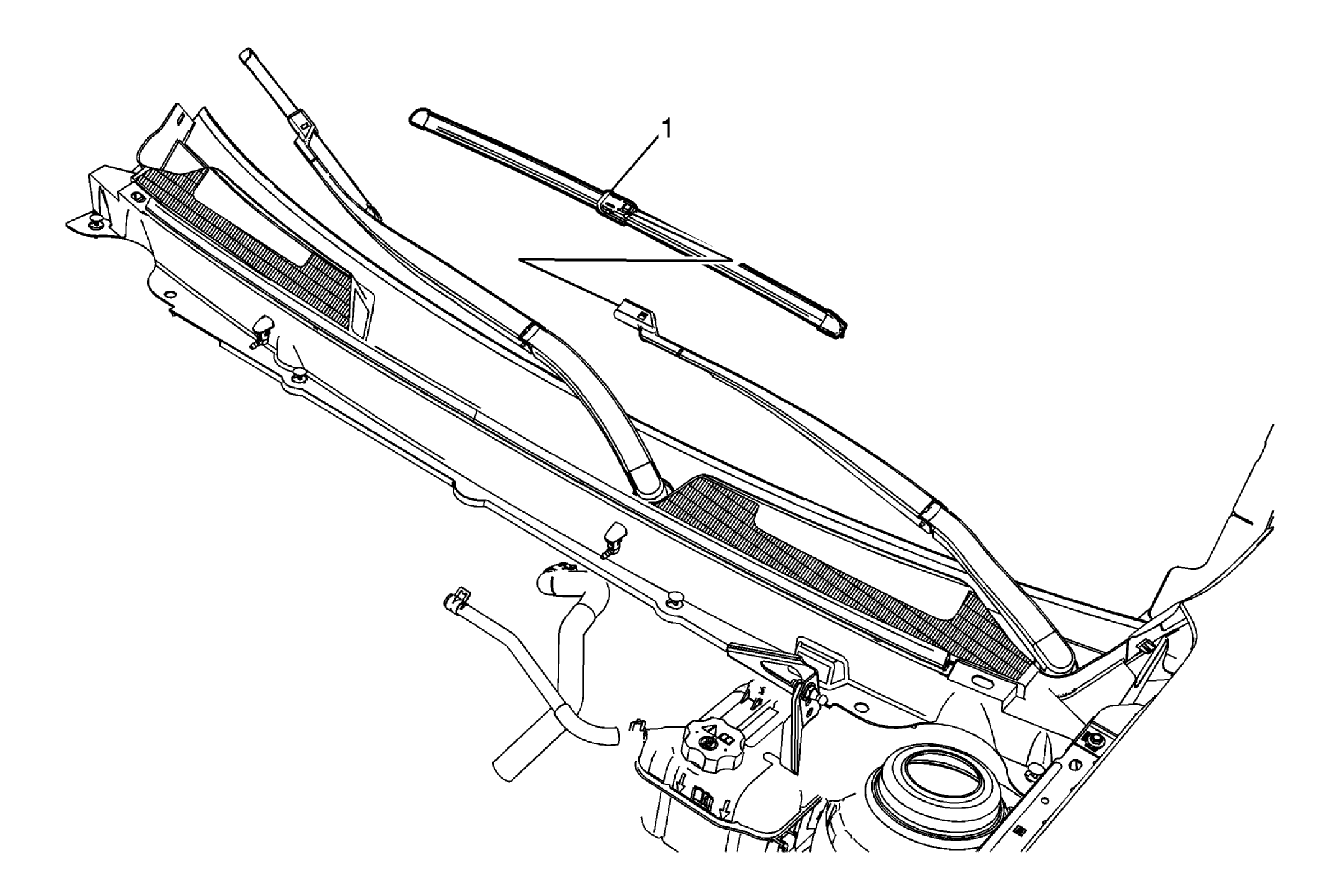

| Callout |
Component Name |
| 1 |
Windshield Wiper Blade Assembly Procedure
- Lift the wiper arm from the windshield.
- Release the retention tab securing the blade to the arm assembly.
- Pull the blade assembly from the wiper arm.
- Remove the wiper blade assembly.
|
