Sunshade Support Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

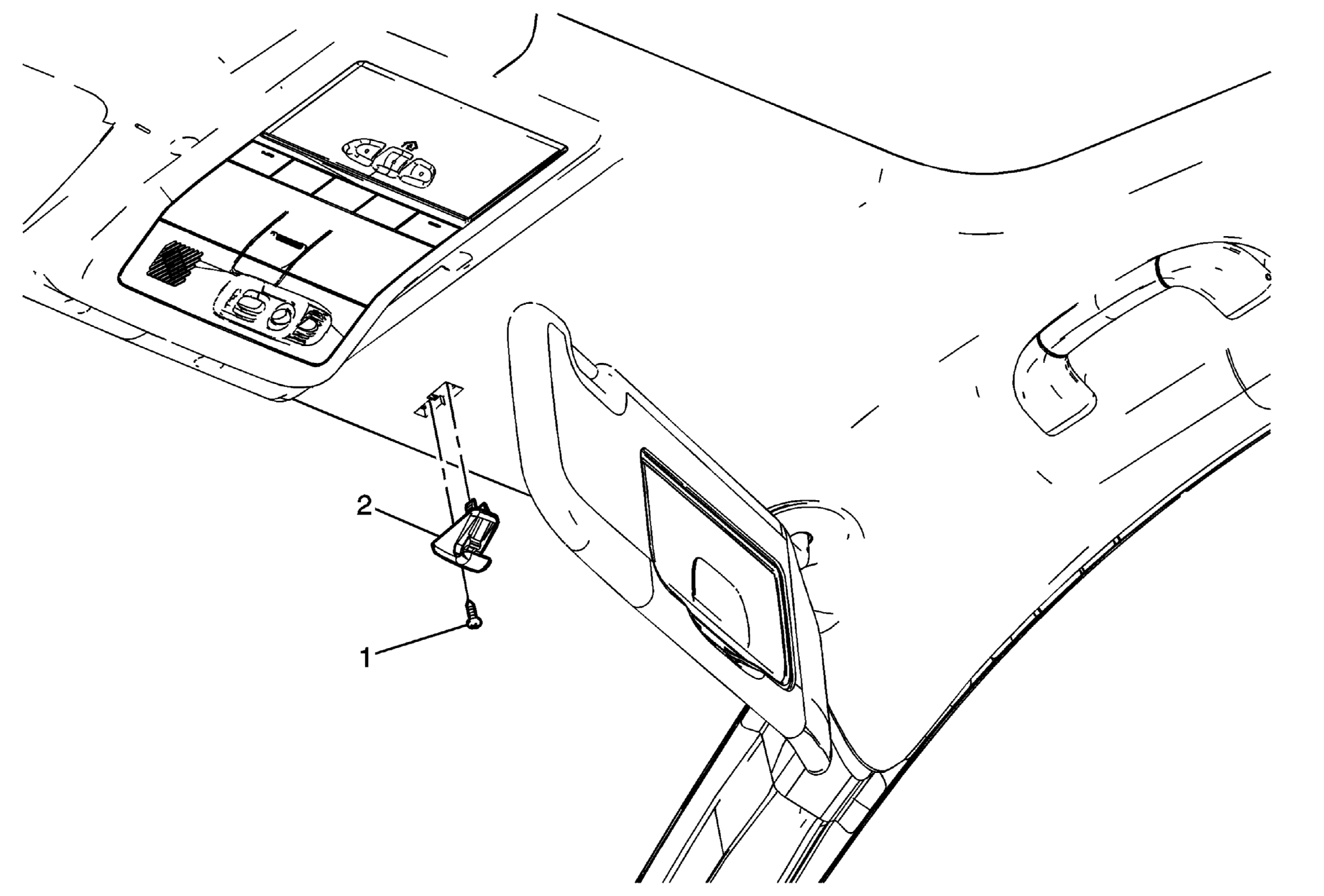

Fig 1: Identifying Sunshade Anchor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunshade Support Fastener CAUTION: Refer to Fastener Caution . Tip: Pull the cover downward to access the fastener. Tighten: 3 N.m (27 lb in)
2	Sunshade Support Procedure Disengage the sunshade from the support. Unclip the sunshade from the support and reposition.

Callout

Component Name

Sunshade Support Fastener

CAUTION: Refer to Fastener Caution .

Tip: Pull the cover downward to access the fastener.

Tighten: 3 N.m (27 lb in)

Sunshade Support

Procedure

Disengage the sunshade from the support.
Unclip the sunshade from the support and reposition.
