Rear Compartment Floor Panel Rail Replacement
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

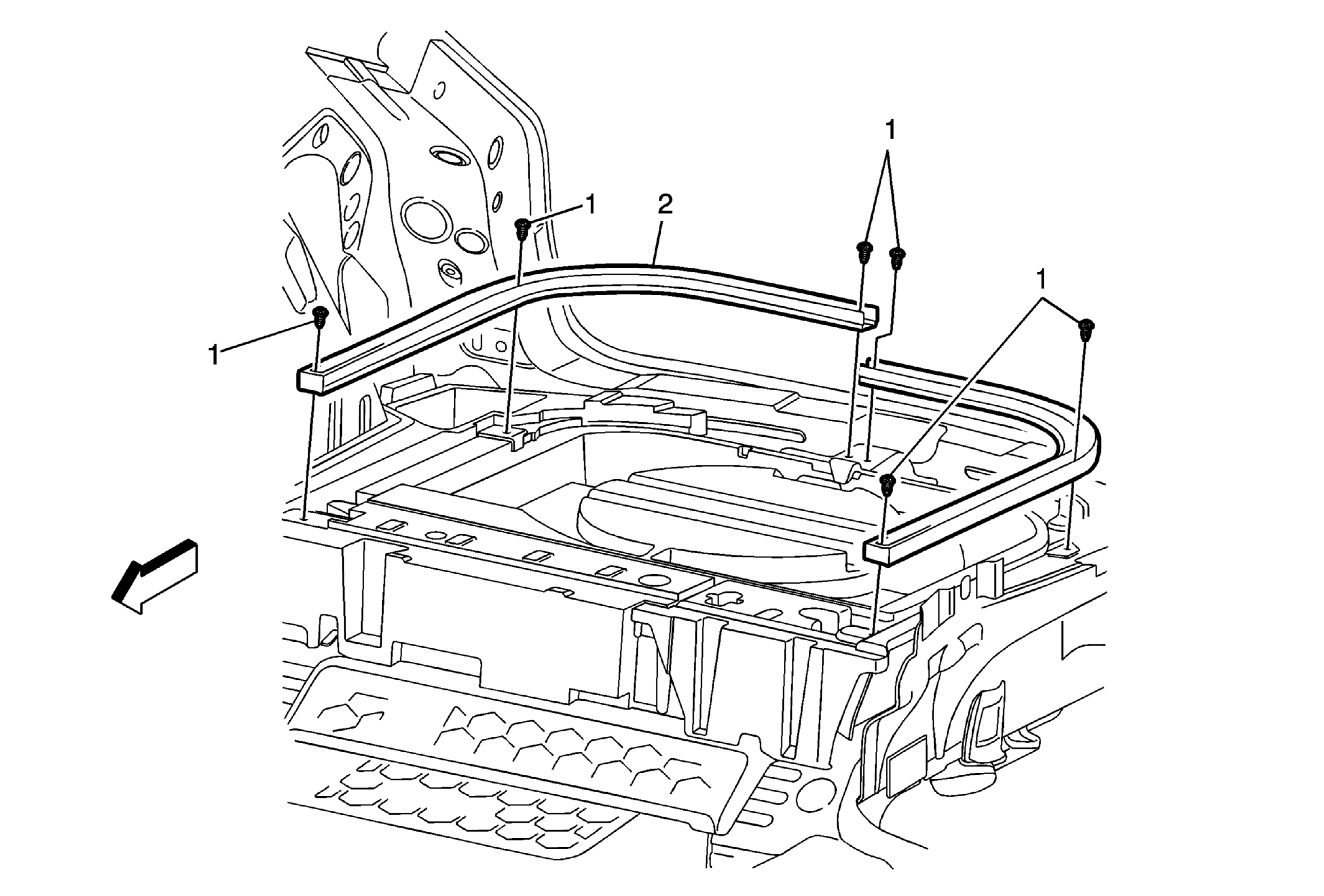

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove the rear compartment floor stowage compartment cover. |
|
| 1 | Cargo Partition Track Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 9 N.m (80 lb in) |
| 2 | Cargo Partition Track Slide Assembly |
