Quarter Outer Panel Pressure Relief Valve Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

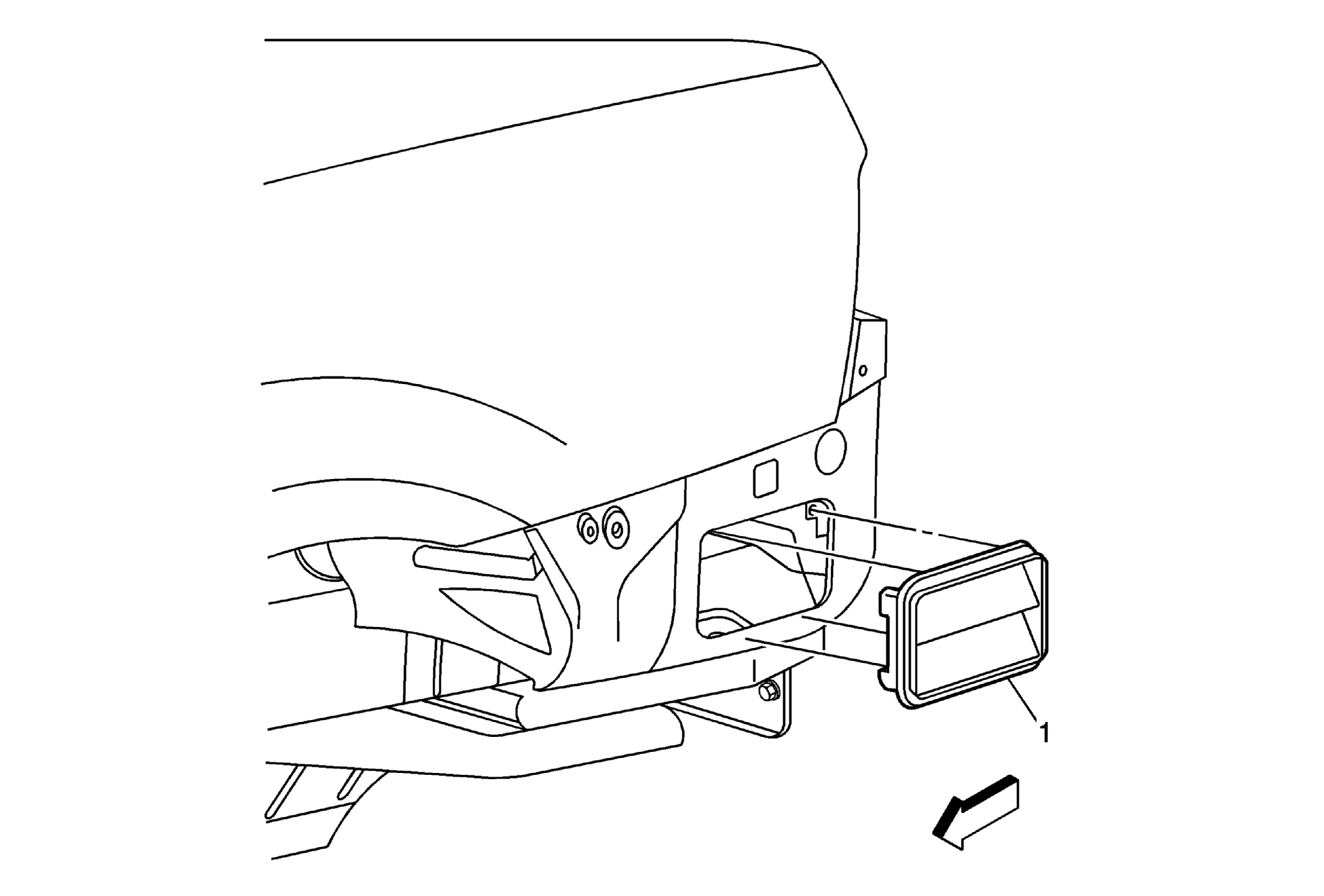

Fig 1: Identifying Quarter Outer Panel Pressure Relief Valve

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement . Reposition any wiring to gain access to pressure relief valve.
1	Pressure Relief Valve

Callout

Component Name

Preliminary Procedures

Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
Reposition any wiring to gain access to pressure relief valve.

Pressure Relief Valve
