Front Side Door Trim Panel Finish Panel Applique Replacement
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

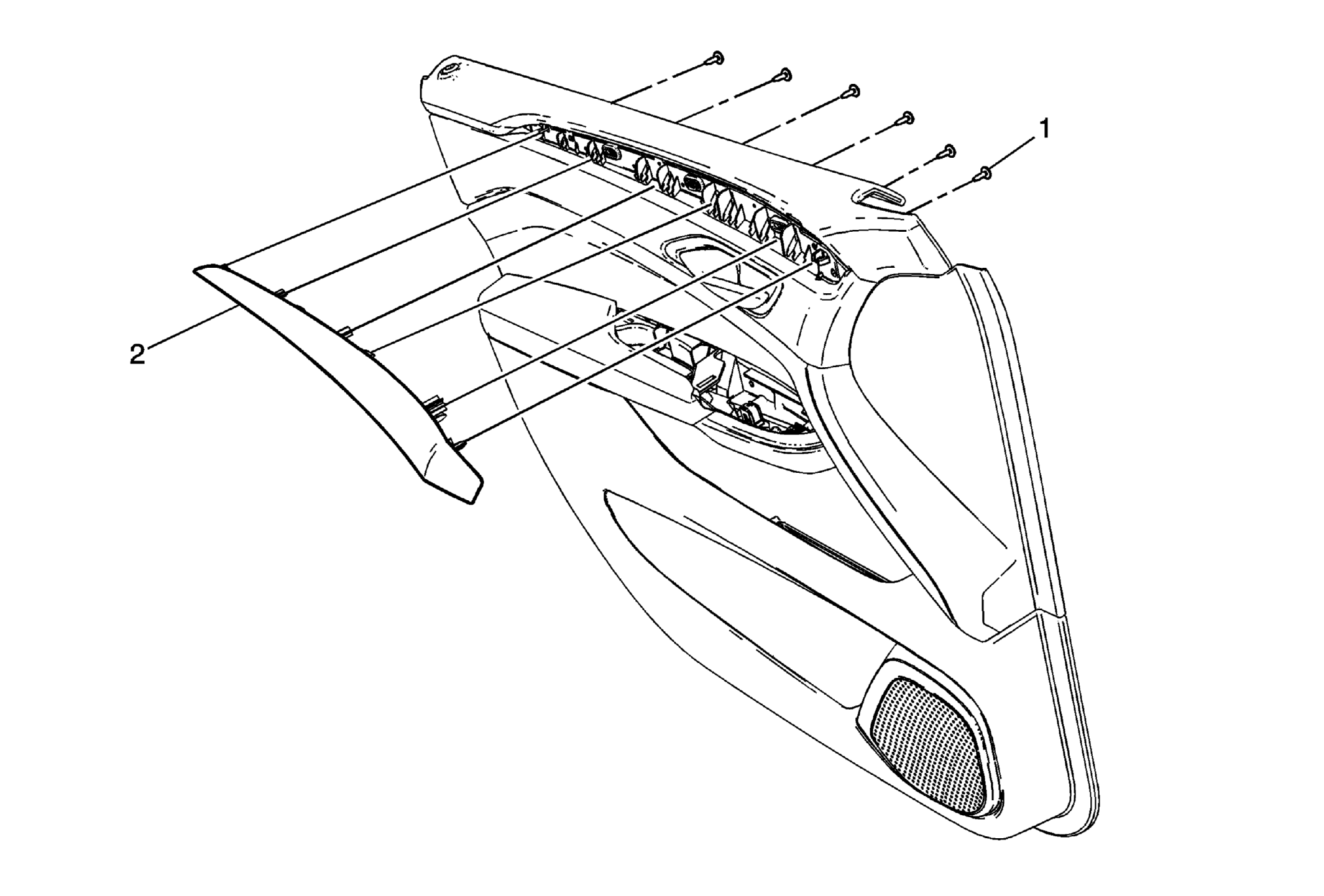

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front side door trim panel. Refer to Front Side Door Trim Replacement . |
|
| 1 | Front Side Door Trim Panel Applique Fastener (Qty: 6)
CAUTION:
Refer to Fastener Caution
.
|
| 2 | Front Side Door Trim Panel Applique Assembly |
