Front Side Door Armrest Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

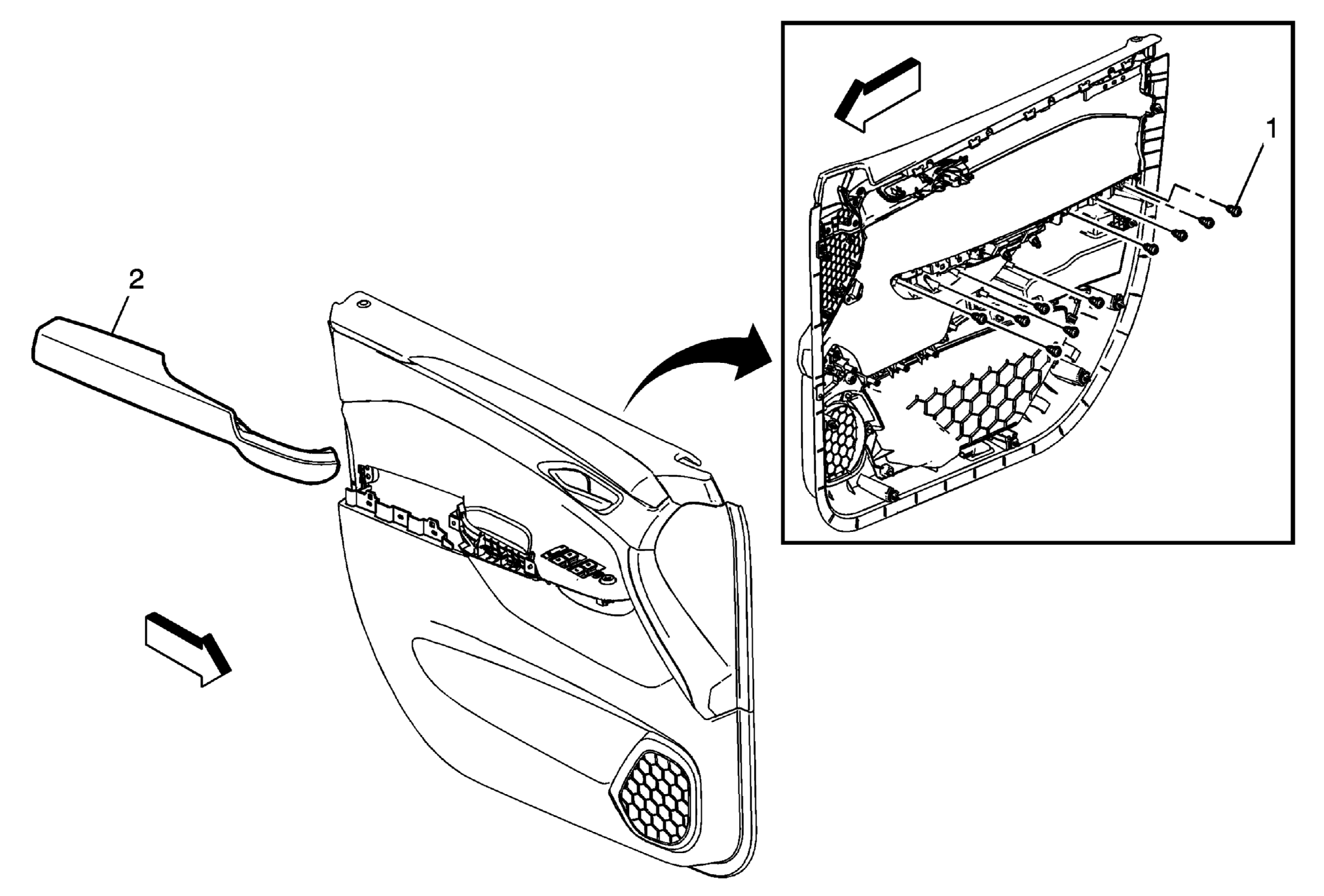

Fig 1: Identifying Front Side Door Armrest & Fasteners

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the door accessory switch mount plate. Refer to Front Side Door Accessory Switch Mount Plate Replacement . Remove the door trim panel. Refer to Front Side Door Trim Replacement .
1	Front Side Door Armrest Fastener (Qty: 10) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Front Side Door Armrest Assembly

Callout

Component Name

Preliminary Procedures

Remove the door accessory switch mount plate. Refer to Front Side Door Accessory Switch Mount Plate Replacement .
Remove the door trim panel. Refer to Front Side Door Trim Replacement .

Front Side Door Armrest Fastener (Qty: 10)

CAUTION: Refer to Fastener Caution .

Tighten: 2 N.m (18 lb in)

Front Side Door Armrest Assembly
