Front Assist Handle Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

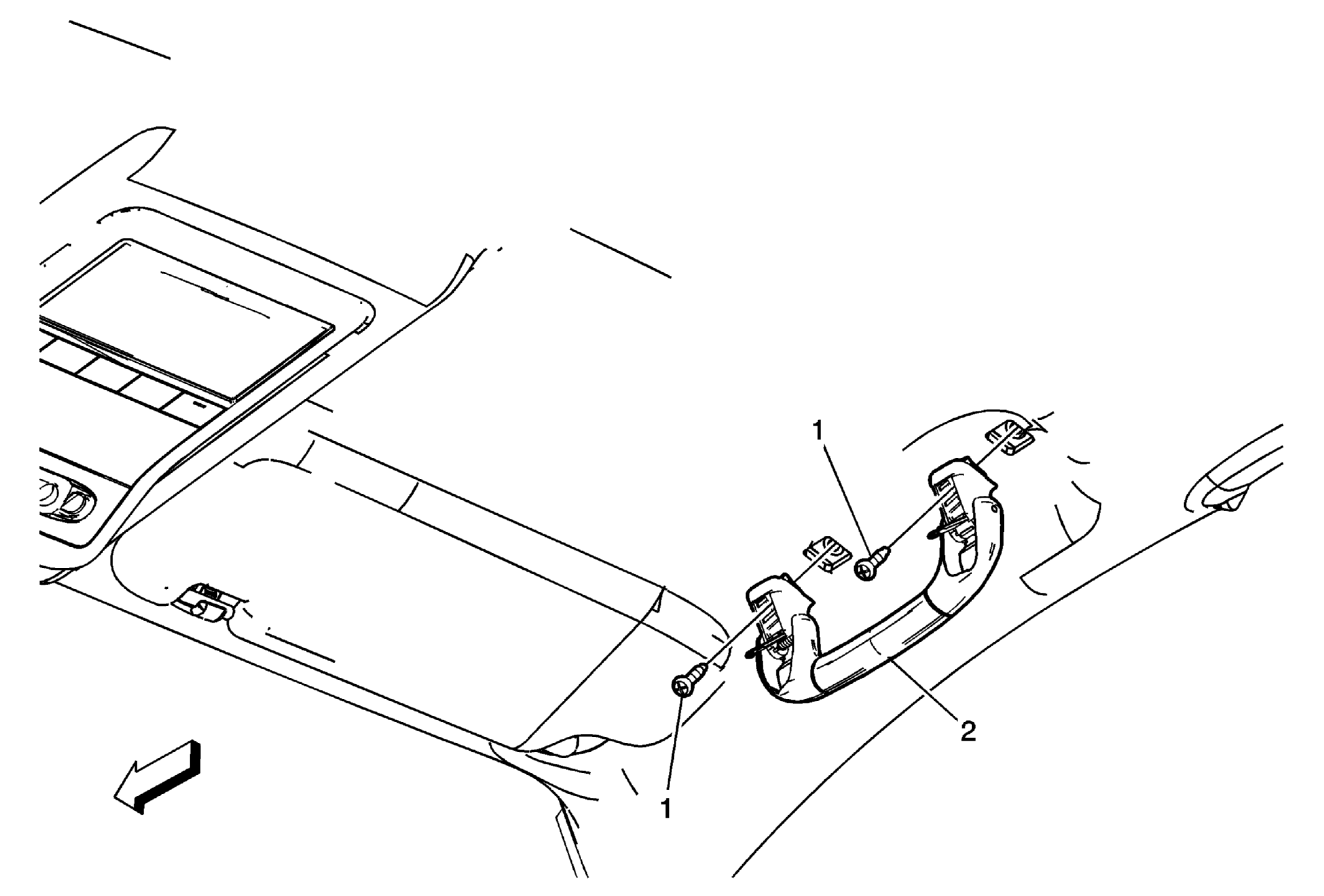

Fig 1: Identifying Front Assist Handle Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Assist Handle Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Fold the assist handle downward and hold. Use a small flat-bladed tool to open the assist handle covers to access the screws. Tighten: 6 N.m (53 lb in)
2	Front Assist Handle Assembly

Callout

Component Name

Front Assist Handle Fastener (Qty: 2)

CAUTION: Refer to Fastener Caution .

Procedure

Fold the assist handle downward and hold.
Use a small flat-bladed tool to open the assist handle covers to access the screws.

Tighten: 6 N.m (53 lb in)

Front Assist Handle Assembly
