Cargo Tie Down Hook Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

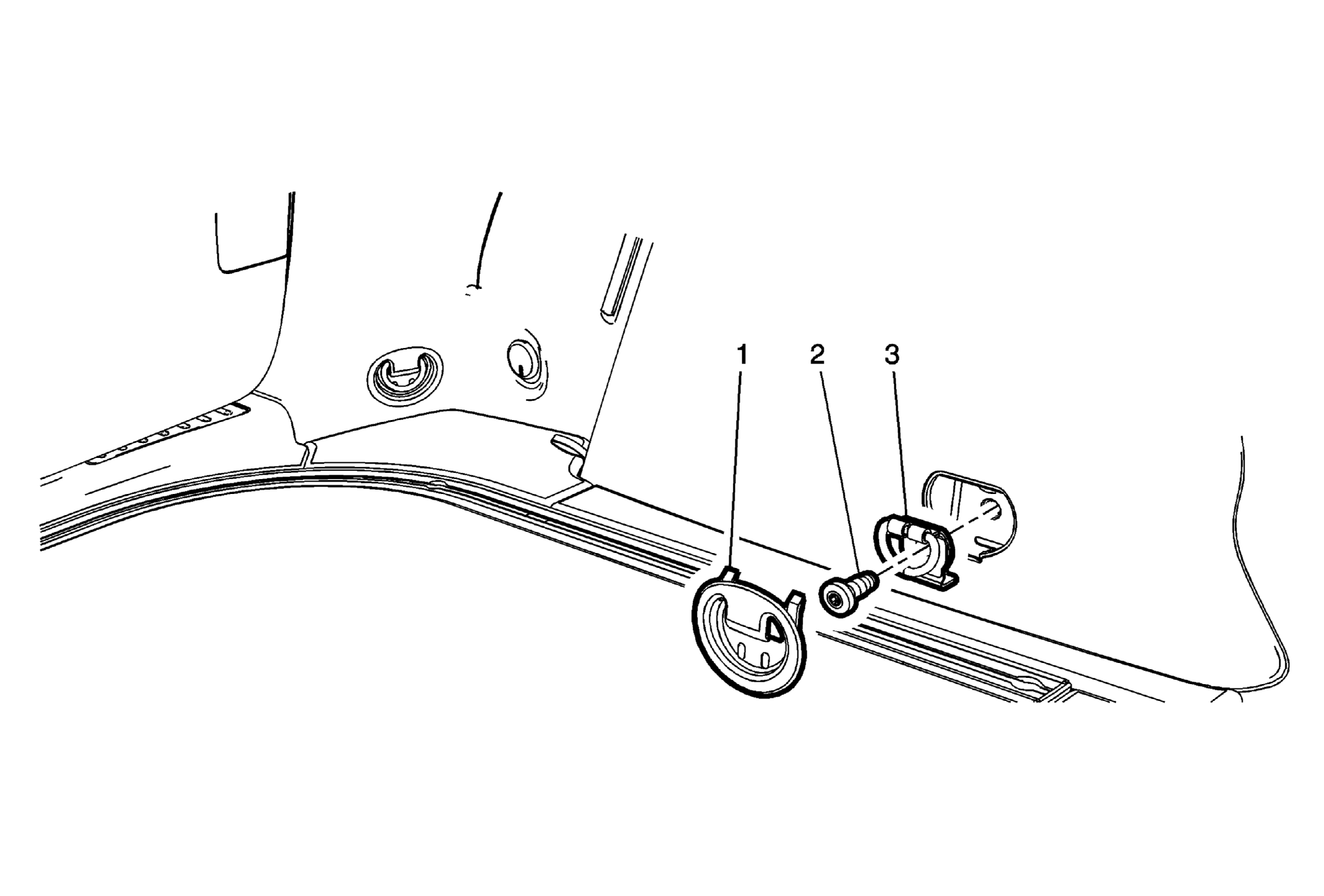

Fig 1: Identifying Cargo Tie Down Hook & Fastener

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cargo Tie Down Loop Fastener CAUTION: Refer to Fastener Caution . Procedure: Remove the cargo tie down loop bezel to access the fastener. Tighten: 50 N.m (37 lb ft)
2	Cargo Tie Down Loop Assembly
