Sunroof Window Replacement

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

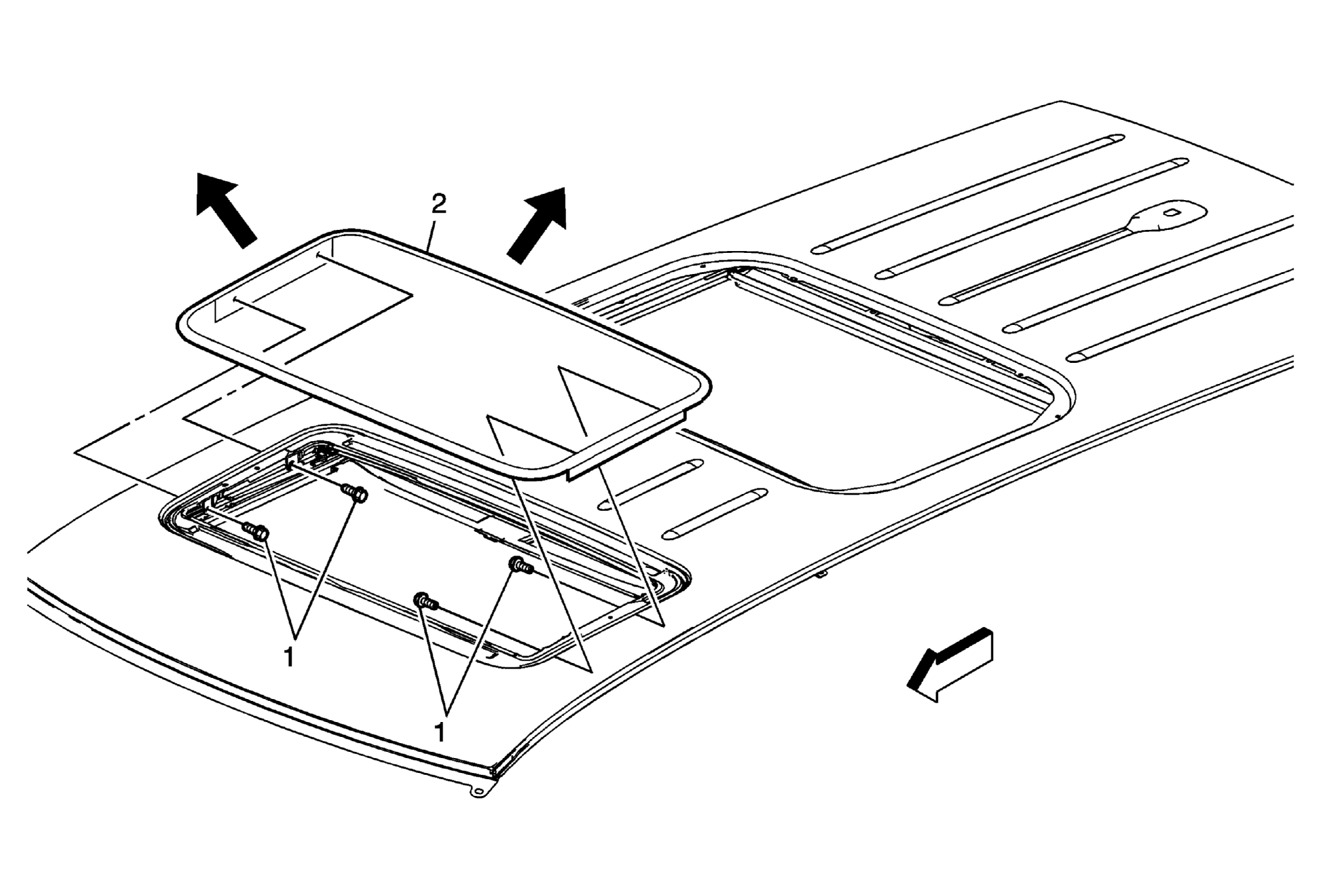

Fig 1: Sunroof Window

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Sunroof Window Screw (Qty: 4) CAUTION: Refer to Fastener Caution . TIP: Open the window. Tighten 6 N.m (53 lb in)
2	Sunroof Window Procedure Close the sunroof window to the access the screws. Adjust the sunroof window as necessary. Refer to Sunroof Window Height and Opening Fit Adjustment

Callout

Component Name

Sunroof Window Screw (Qty: 4)

CAUTION:

Refer to Fastener Caution .

TIP: Open the window.
Tighten
6 N.m (53 lb in)

Sunroof Window

Procedure

Close the sunroof window to the access the screws.
Adjust the sunroof window as necessary. Refer to Sunroof Window Height and Opening Fit Adjustment
