Sunroof Sunshade Guide Replacement

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

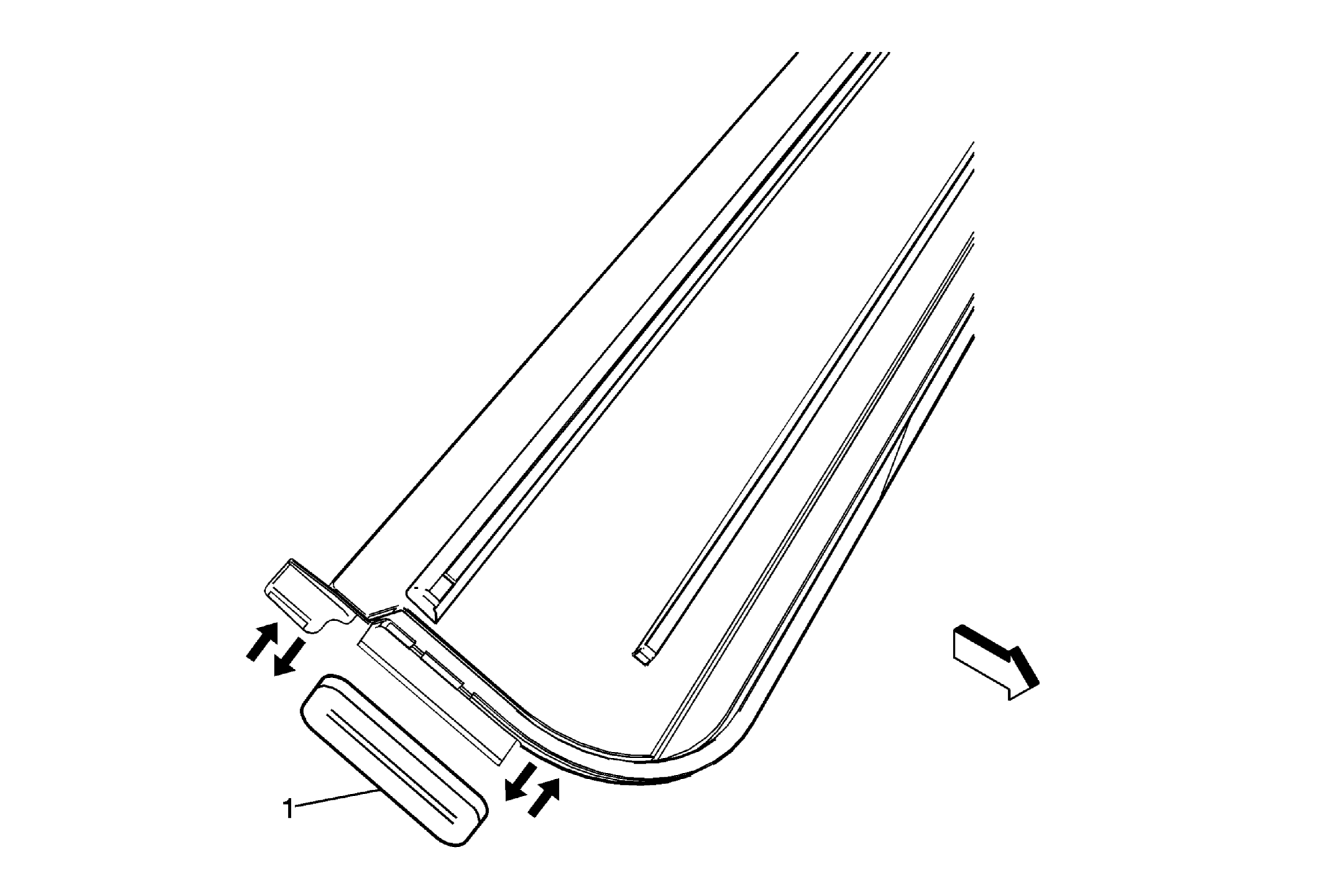

Fig 1: Sunroof Sunshade Guide

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Sunshade Guides (Qty: 2) Procedures If the sunshade guides are being replaced do the following: Hold sunshade in a partially closed position. Keeping one side of the sunshade located in the track, move the other side of the sunshade forward to free it from the track. Remove the other side of the sunshade from the track. Remove sunshade guides from the ends of the sunshade. Install new guides to both ends of the sunshade Install one end of the sunshade into the track. Keeping the installed end of the sunshade located in the track, install the other end by moving the shade forward then back into the track. TIP: Check for sunshade function.

Callout

Component Name

Sunshade Guides (Qty: 2)

Procedures

If the sunshade guides are being replaced do the following:
Hold sunshade in a partially closed position.
Keeping one side of the sunshade located in the track, move the other side of the sunshade forward to free it from the track.
Remove the other side of the sunshade from the track.
Remove sunshade guides from the ends of the sunshade.
Install new guides to both ends of the sunshade
Install one end of the sunshade into the track.
Keeping the installed end of the sunshade located in the track, install the other end by moving the shade forward then back into the track.

TIP: Check for sunshade function.
